The Journey of Crafting an Aluminum RIB Hull – The SP760 Story

The Rigid Inflatable Boat (RIB) represents a pinnacle of marine engineering, marrying the unwavering stability and payload capacity of a solid hull with the unparalleled buoyancy and shock absorption of an inflatable collar. Among these, aluminum-hulled RIBs like the SP760 stand out for their exceptional strength, lightweight durability, and versatility. But how is such a capable craft born? This article traces the fascinating production journey of an aluminum RIB from initial design to the final, sea-ready vessel.

Phase 1: The Digital Blueprint – Design & Engineering

The journey begins not in a shipyard, but in the digital realm of advanced design software.

1.Concept & Requirements: Engineers define the SP760's mission: Is it for high-speed patrol, luxury yacht tendering, commercial work, or recreational diving? This dictates its length (7.60 meters), beam, weight, passenger capacity, engine power, and performance goals (speed, seakeeping, stability). As our Australian client who lived in west of Australia where has big

waves. He would like aluminum RIB with deep V hull specially for fishing. He wants to build a customized aluminum fishing boat.

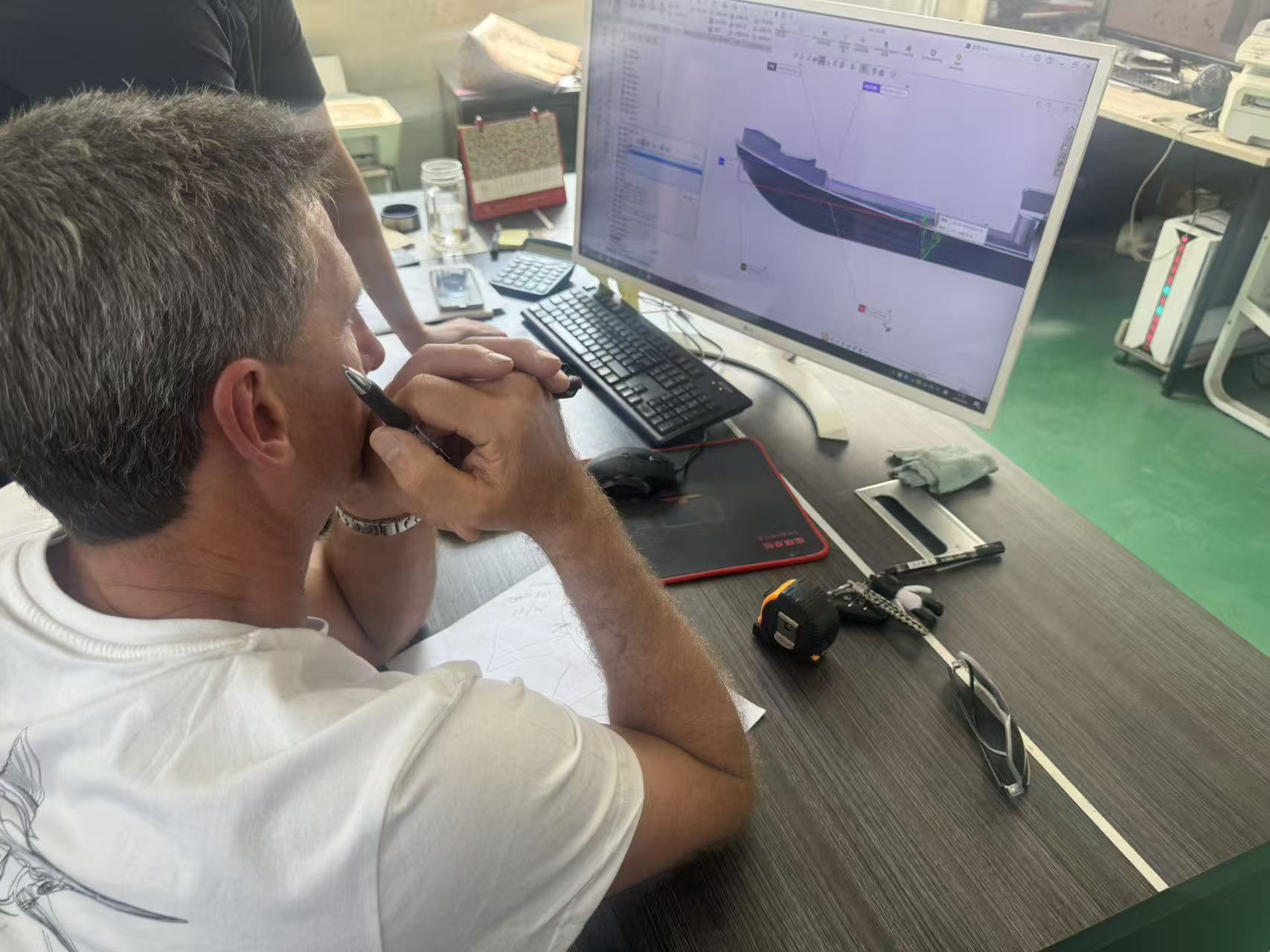

2. Hydrodynamic Modeling: Using Computer-Aided Design (CAD) and Computational Fluid Dynamics (CFD) software, designers create and test the hull form. The deep-V hull, characteristic of RIBs like the SP760, is meticulously sculpted. The angle of the V, the presence and shape of strakes (longitudinal ridges), and the chine (where the hull bottom meets the side) are all optimized. The goal: to create a hull that planes efficiently, cuts through chop with minimal slamming, and provides predictable handling at speed.

3.Structural Analysis: Finite Element Analysis (FEA) software subjects the digital hull to simulated forces—waves, engine torque, and lifting loads. This ensures the proposed aluminum structure and thickness will withstand a lifetime of stress, identifying where reinforcements (like frames, stringers, and bulkheads) are needed without adding unnecessary weight.

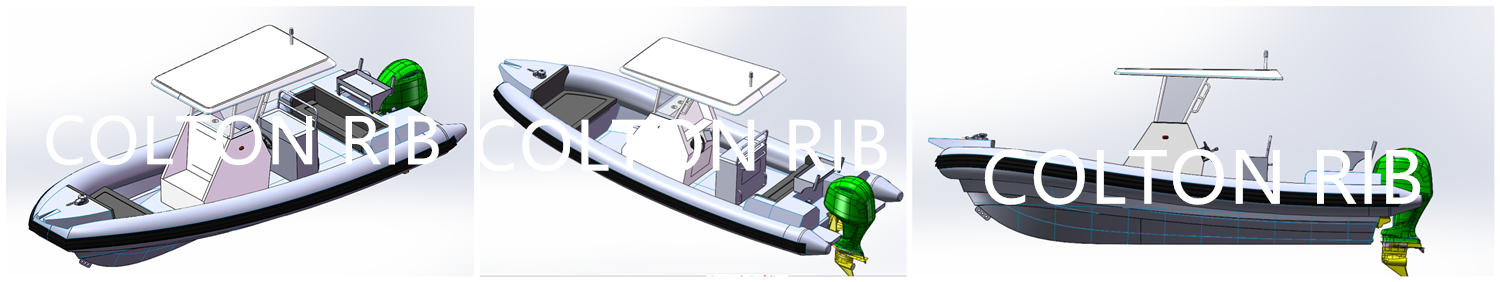

4.Integration Planning: The design phase also meticulously plans for the inflatable tube attachment system, deck layout, console placement, fuel tank integration, and all through-hull fittings. Every component is virtually placed before metal is ever cut.

Phase 2: The Metal Core – Building the Aluminum Hull

With designs finalized, production moves to the metal shop.

1.Material Selection: High-grade, marine-grade aluminum alloy (typically the 5000-series, like 5083 or 5086) is selected. This alloy offers excellent corrosion resistance, weldability, and strength-to-weight ratio.

2.Cutting & Forming: Sheets and plates of aluminum are cut to precise shapes using CNC plasma or waterjet cutters. These flat patterns are then carefully bent and rolled using hydraulic presses and rollers to form the hull sides, bottom panels, transom, and structural components.

3.Jig Assembly: The hull is built upside-down in a strong, precise frame called a jig. This ensures perfect alignment. The keel, longitudinal stringers, and transverse frames are first positioned, creating the skeletal "backbone" of the boat.

4.Welding – The Critical Art: Skilled welders, often using MIG (Metal Inert Gas) or TIG (Tungsten Inert Gas) processes, permanently join the aluminum components. This is a critical step. Clean, consistent, penetration welds are vital for watertight integrity and structural strength. The hull is fully welded, inside and out.

5.Fairing & Preparation: Once the hull structure is complete and righted, welds are ground smooth, and the entire aluminum surface is prepared for coating. This involves cleaning and abrading the surface to ensure perfect adhesion for paint and anti-fouling systems.

Phase 3: The Buoyant Embrace – Crafting the Inflatable Tube

While the hull takes shape, the inflatable tube is produced separately, often by specialized manufacturers.

1.Fabric Cutting: The tube is made from a durable, flexible material, typically Hypalon® (CSM). Fabric is cut into precise patterns that will form the tubular segments (cones) and the large, cylindrical main tube.

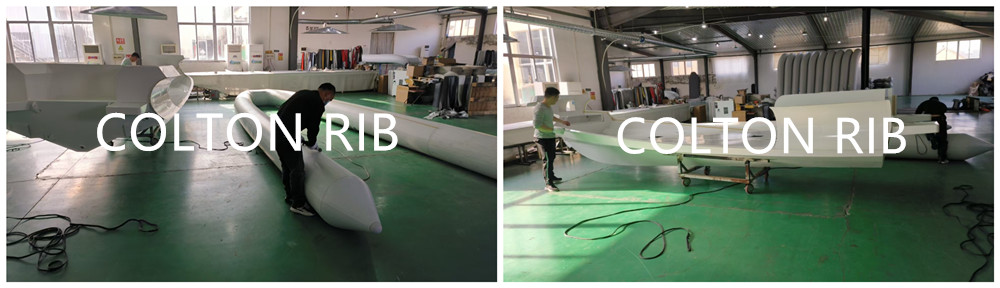

2.Assembly & Bonding: The individual segments are assembled and bonded together using high-strength, waterproof adhesive. A critical feature is the attachment lip—a robust, fabric-reinforced flap that runs the perimeter of the tube. This lip will be mechanically fastened to the hull's aluminum gunwale.

3.Integration of Components: During assembly, other elements are integrated:

Inflatable Keel: Adds shape and hydrodynamic performance.

Safety Valves: Allow automatic pressure regulation.

D-Rings & Handles: For securing lines and equipment.

Rubber Strakes/Rubbing Strake: Protects the tube from abrasion.

4.Quality Assurance: Completed tubes are inflated to high pressure and soap-tested to check for leaks, ensuring they are perfectly airtight.

Phase 4: Marriage & Finishment – Final Assembly

This is where the "Rigid" and "Inflatable" become one.

Tube-Hull Marriage: The inflatable tube is carefully positioned over the hull. The attachment lip is aligned with the bolting flange on the aluminum gunwale. Stainless steel bolts, nuts, and backing plates are used to create an immensely strong, permanent mechanical connection. This joint is the heart of the RIB's resilience.

Deck & Hardware Installation: The deck—often of welded aluminum, glass-reinforced plastic (GRP), or teak—is installed. The console (housing steering, electronics, and controls), seating, fuel tanks, bilge pumps, and navigation hardware are all fitted and secured.

Systems Integration: Electrical wiring, engine control cables, and plumbing are routed and connected. Navigation lights, instruments, and any electronic systems (sonar, chart plotters, VHF radios) are installed and tested.

Painting & Protection: The aluminum hull receives its final cosmetic and protective coatings. This includes an epoxy primer for corrosion inhibition and multiple layers of high-gloss polyurethane topcoat. The bottom is finished with specialized anti-fouling paint.

Rigid hull inflatable boat

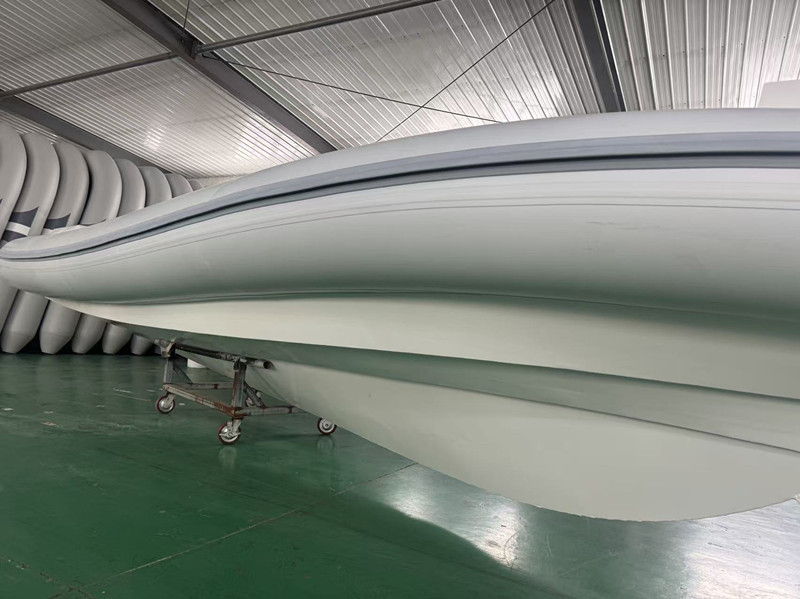

Rigid hulled inflatable boat

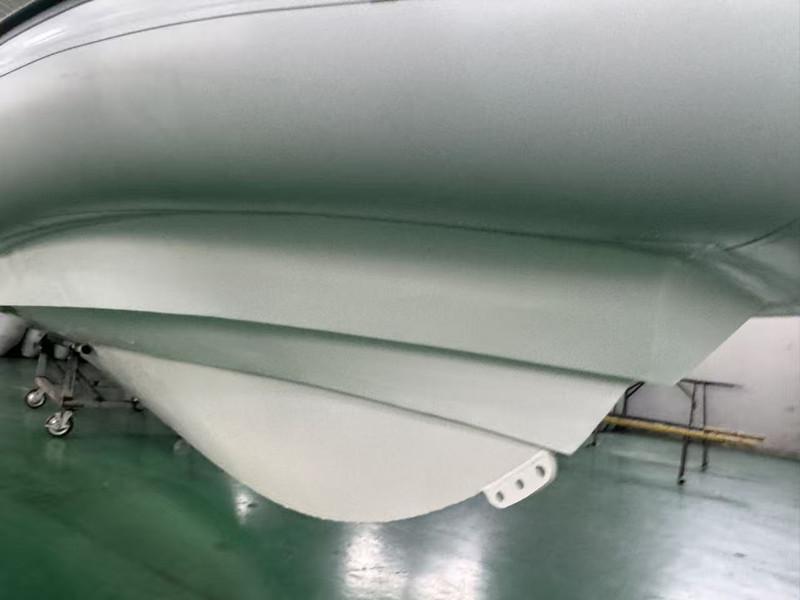

Rigid inflatable boats ribs

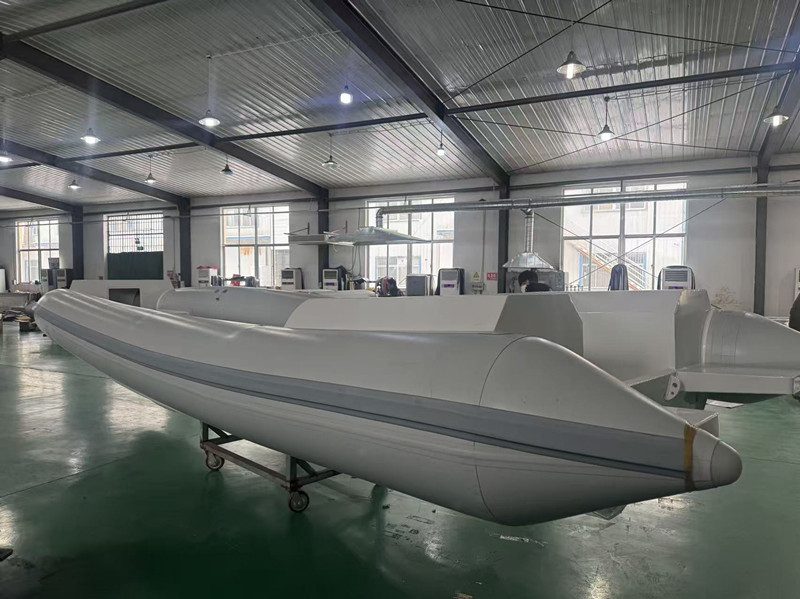

Rigid inflatable boats ribs

Phase 5: The Final Test – Quality Control & Delivery

No SP760 leaves the factory without rigorous validation.

1.Leak Test: The completed boat is often partially floated in a test tank to ensure the hull and all through-hull fittings are perfectly watertight.

2.Systems Check: Every electrical switch, pump, light, and gauge is tested.

Only after passing all these checks does the rigid inflatable SP760 earn its nameplate, ready to take on roles from commanding professional fleets to serving as the ultimate tender for superyachts, a testament to the seamless fusion of robust aluminum engineering and flexible, buoyant technology.

Good feedback of the deep V hull aluminum fishing boat from our Australian clienet
