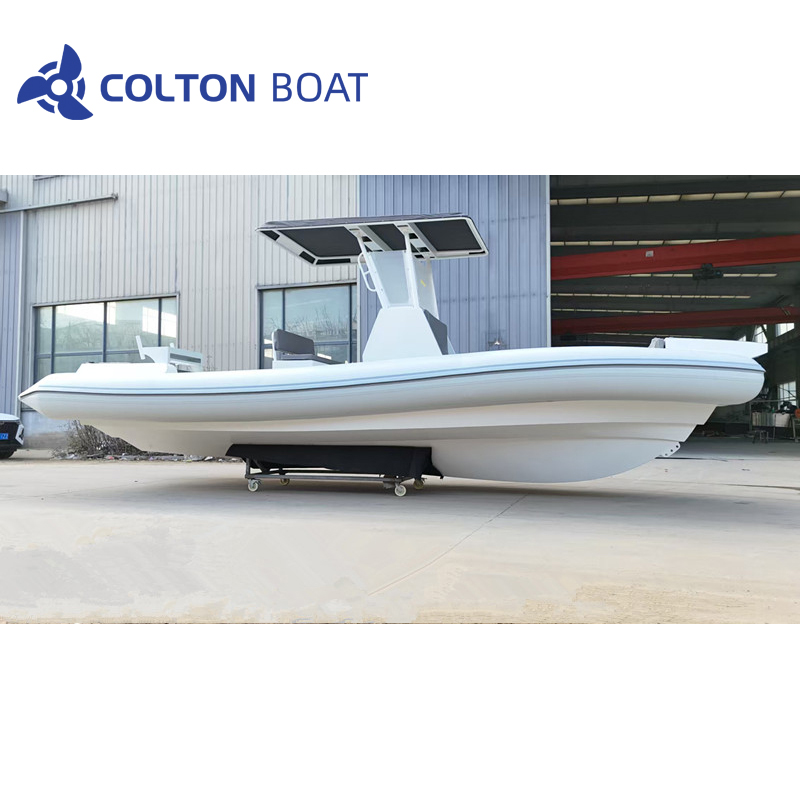

Customized Deep V Aluminum Rib Fishing Boats for Sale Perth

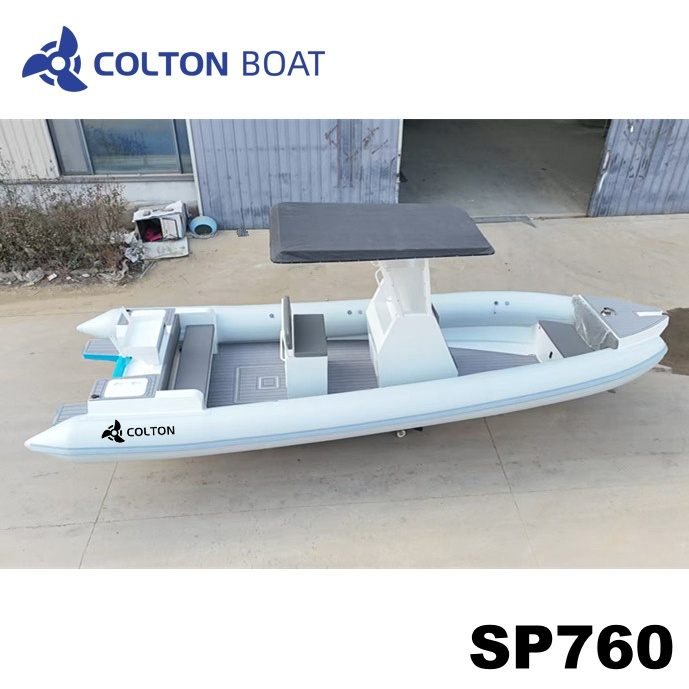

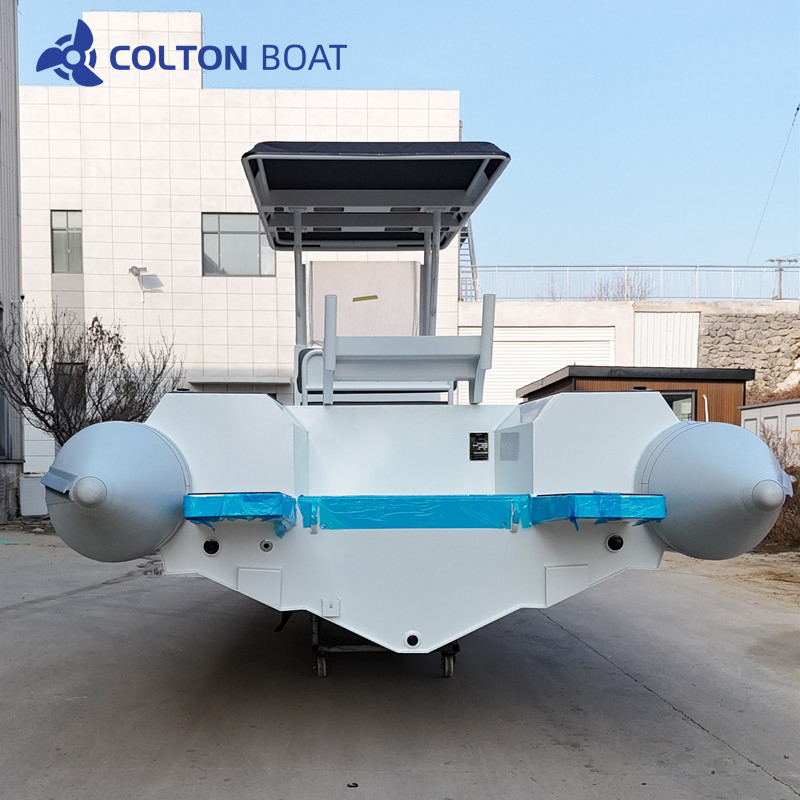

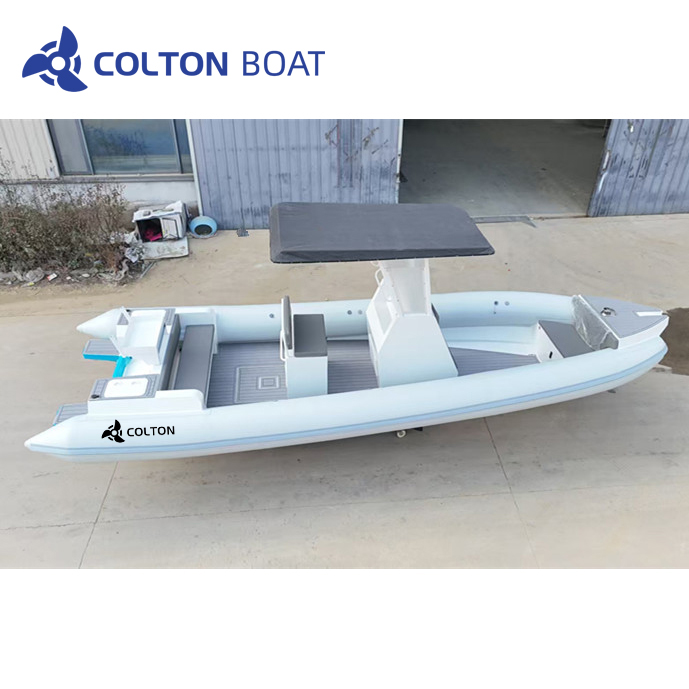

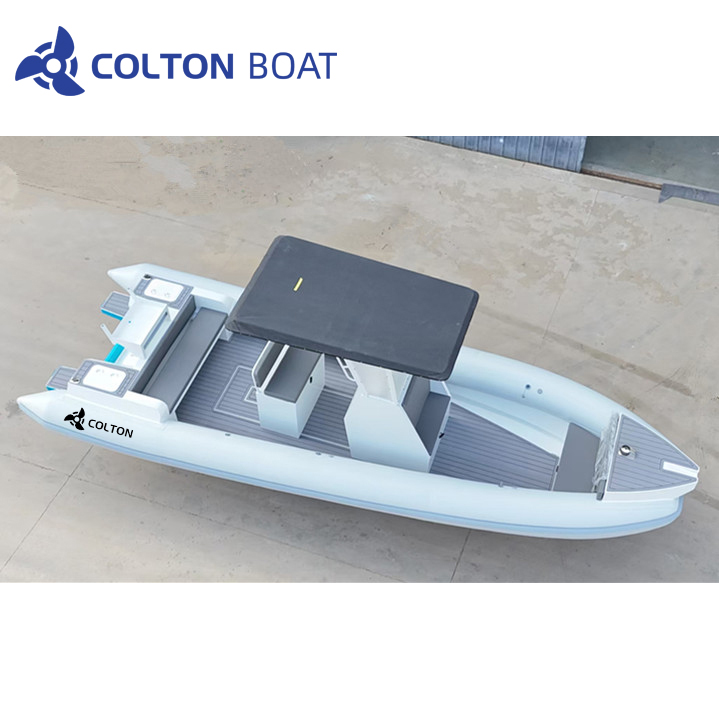

This 760cm (7.6-meter) aluminum-hull RIB (Rigid Inflatable Boat) is engineered for serious anglers and versatile marine use, blending rugged durability with practical fishing features. Its deep-V aluminum hull paired with a high-performance inflatable collar ensures a dry, stable, and soft ride in challenging conditions.

Power and endurance are provided by a substantial 280L fuel tank, enabling long-range excursions. The functional layout centers on a middle console with a sturdy T-top, offering excellent visibility and weather protection. For comfort and utility, it includes a middle seat and a dedicated rear seat.

Designed with the fisherman in mind, it comes equipped with a fish bait holder and non-slip EVA padding on key deck areas for secure footing. An electric winch adds convenience for easy launching and recovery. This boat is a capable and well-appointed platform ready for demanding fishing trips and coastal adventures.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Standard features

Optional features

• High tensile chromated&powder coated aluminum hull

• PVC,Taiwan hypalon or Orca hypalon
• Integrated transom supports
• 280L Integrated built in fuel tank
• Integrated inside keel
• Lockable bow locker
• Flush mount non-return valves
• Self-draining valve
• Safety valves
• Lifting points and towing eyes
• Anti-slip EVA pad
• Full length keel guard
• Middle console with front seat and windshield
• Middle seat with cushion
• Rear seat with sea cushions
• Anchor holder or bollard
• Aluminum roll bar with navigation lights
• Bilge pump
• One pair of aluminum oars
• Foot pump
• Repair ki

• Fish bait holder

• Hydraulic steering system & steering wheel

• Rear platform with ladder

• Front sundeck

• Boat trailer

• T-Top

• Boat cover

• Shower system

• Live ﬁsh well

• Electric inﬂating pump

• Rear table

• Electric windlass

• 8KG stainless steel anchor and 8mm anchor chain

• Compass

• VHF set

• Blue tooth speaker system

• Garmin/Lowrance/Simrad GPS and sounder

• Searching light

• Yamaha or Mercury engine

Specification

Model	Overall length	Overall width	Internal width	Tube diameter	Chamber	Net weight	Max power	Max people	Max loading(kg)
Model	cm	cm	cm	cm	room	kg	hp	P	kg
SP520	520cm/17’	246cm/8’	130cm/4’3’’	53cm/21’’	5	480	90	10	1035
SP560	560cm/18’4’’	246cm/8’	130cm/4’3’’	53cm/21’’	5	540	115	11	1130
SP600	600cm/19’9’’	256cm/8’5’’	140cm/4’7’’	53cm/21’’	6	600	150	12	1275
SP660	660cm/21’8’’	256cm/8’5’’	140cm/4’7’’	53cm/21’’	6	670	200	13	1405
SP700	700cm/23’	266cm/8’9’’	150cm/4’11’’	53cm/21’’	6	800	250	14	1500
SP760	760cm/25’	297cm/9’9’’	175cm/5’9’’	56cm/22’’	6	920	300	15	1700
SP860	860cm/28’3’’	307cm/10’	185cm/6’	56cm/22’’	6	1395	500	17	2106
SP960	960cm/31’6’’	312cm/10’3''	190cm/6’3''	56cm/22’’	8	1700	600	18	2500
SP990	990cm/32'6''	312cm/10'3''	190cm/6'3''	56cm/22''	8	1800	600	18	2500
SP1050	1050cm/34’5’’	330cm/10’10’’	200cm/6’7’’	60cm/24’’	8	1900	600	18	2500
SP1150	1150cm/37’9’’	370cm/12’2’’	240cm/7’10’’	60cm/24’’	8	2200	800	20	3000

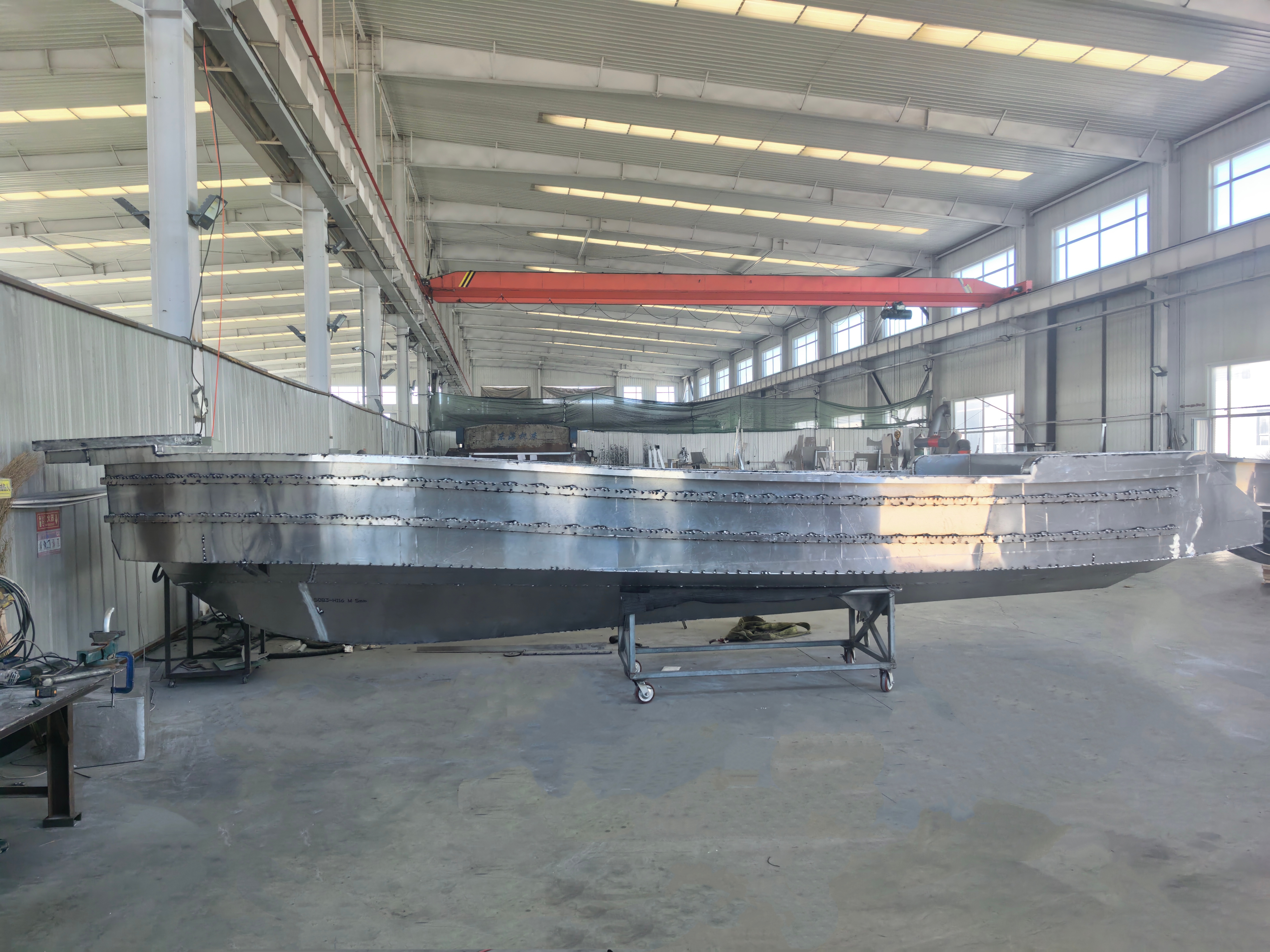

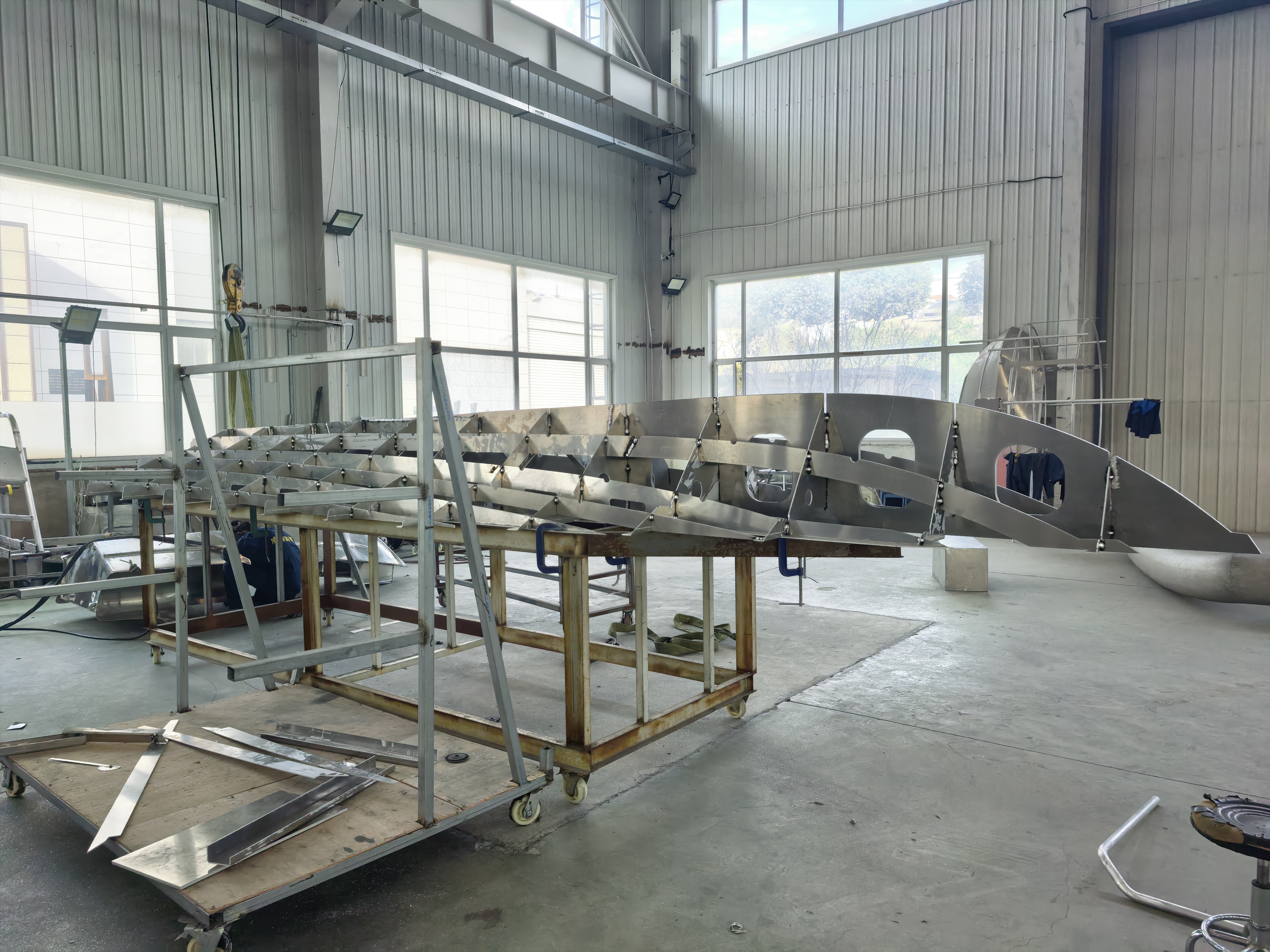

Process of aluminum hull

Process of inflatable tube

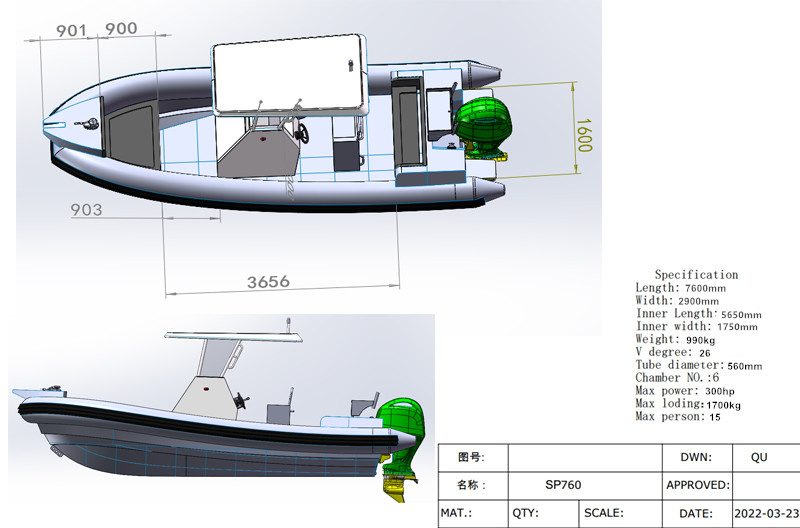

Sketch of aluminum RIB boat SP760

SP760 fishing boat 图纸

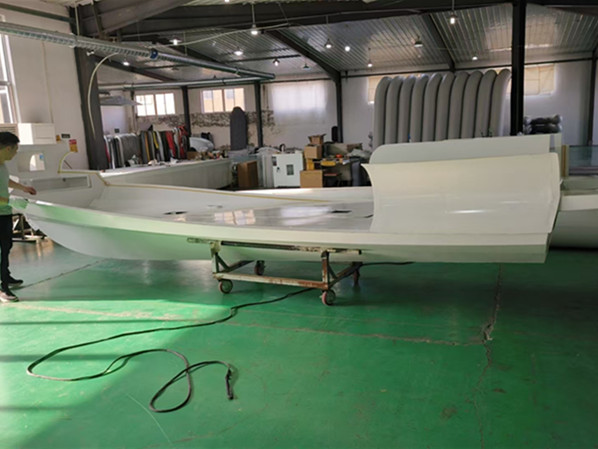

Production pictures of aluminum RIB SP760

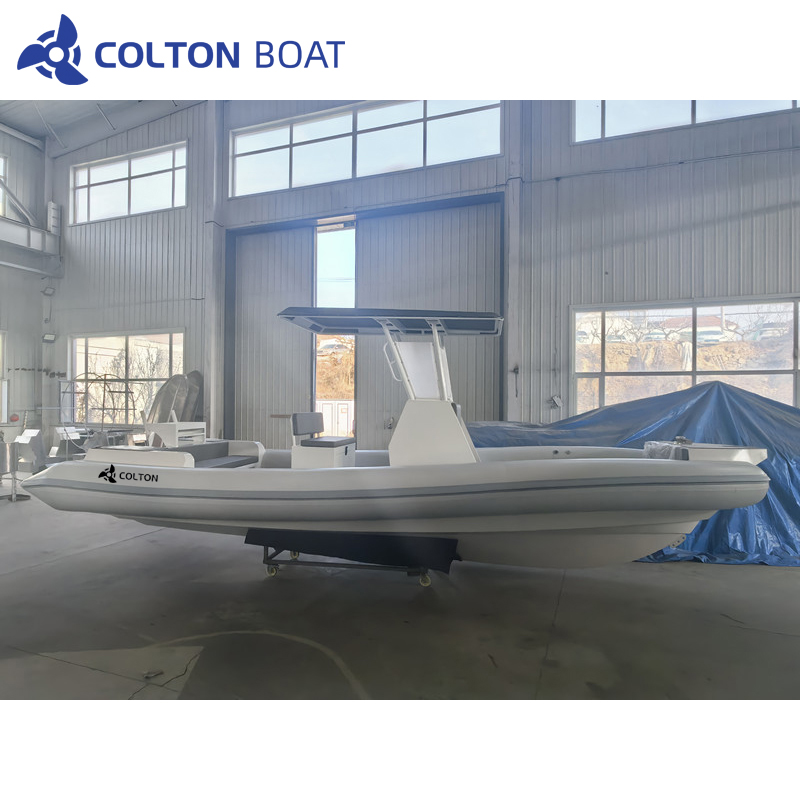

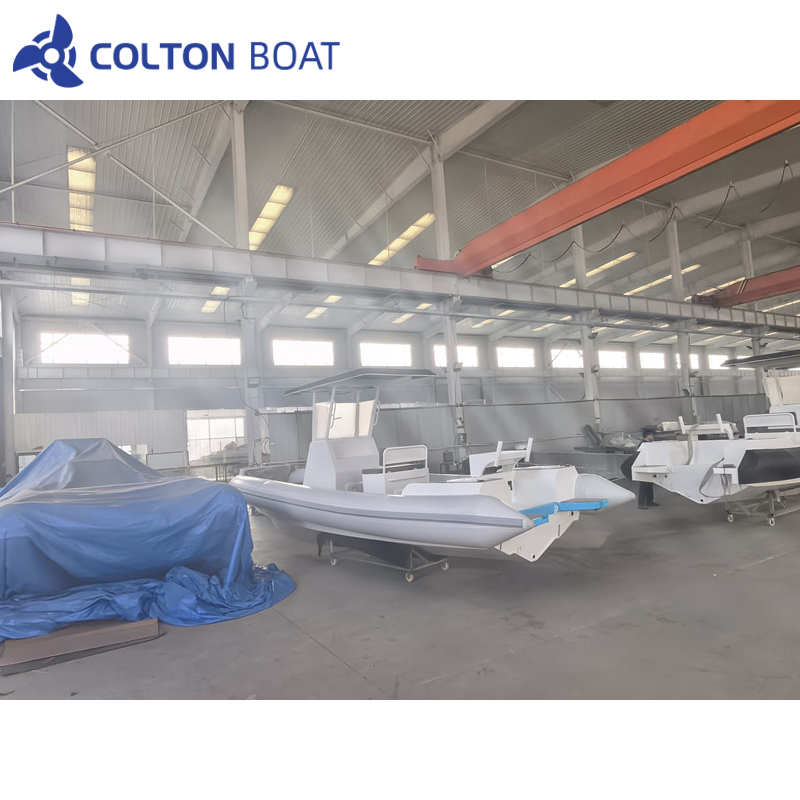

See Shots of the aluminum fishing boat SP760 in our factory

Packing and shipment

Fabric specification

Technical specification of ORCA

• Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.

• Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)

• Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m²

• Fabric width 145cm / Sold by linear meter

Orca-hypalon-fabric

Technical specification of PVC

Material properties	Value	Unit	Measuring Methods/Norm
Total weight	1450	g/m²	EN ISO 2286-2
Tensile strength warp/weft	3000 / 3000	N/50 mm	EN ISO 1421/V1
Tear strength warp/weft	250 / 250	N	DIN 53363
Adhesion	20	N/cm	PA 09.03 (intern)
Cold resistance	-30	°C	EN 1876-1
High Temperature	+70	°C	PA 07.04 (intern)
Light fastness	>6	Note, Value	EN ISO 105 B02
Crack resistance	100000 x		DIN 53359 A
Material	PES		DIN EN ISO 2076
Yarn count	1100		DIN EN ISO 2060
Weave	L 1/1		ISO 3572

PVC color card

Aluminum Rib boat hull power coating

AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.

Aluminum Rib boat hull power coating

EVA pad

Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.

EVA colorpad
