Pontoon Fishing Boat CL390 Inflatable Boat Rib Rib Dinghy for Sale Rhib Boat

The small double hull tender sized of 300cm,330cm,360cm and 390cm. we call Classic boat. Classic boats are made of 2.5mm thick powder coated marine grade aluminum for boat hull and 1100 Dtex pvc fabric or 1.0mm hypalon fabric for inflatable tube. Center console dinghy and rib boats for sale near me CL390 has double flat boat hull and double front lockers.

Model:
Aluminum RIB boat CL390
Brand:
Colton or OEM service
Code:
89031900

Quantity:
Availability:





Inquire Add to Basket

Product Description

Standard features

Optional features

High tensile chromated&powder coated aluminum hull
PVC or Hypalon inflatable tube
Lockable bow locker(fit 24L fuel tank) with cushion
Flush mount non-return valves
Integrated transom supports
Lifting points and towing eyes
Anti-slip EVA pad
Heavy duty rubbing strake
Full length keel guard
Outside and inside reinforced motor pad
Removable aluminum seat
One pair of aluminum oars
Foot pump
Repair kit

Aluminum or plastic fuel tank into bow locker
Extra seat
Safety valves
Under-seat bag
Dinghy wheels
Electric pump
Dry bag
Sunshade
Boat cover
Fishing rod holder
Anchor holder/bow step
Console&seat

Specification

Model	Overall length	Overall width	Internal width	Tube diameter	Chamber	Net weight	Max power	Max people	Max loading(kg)
Model	cm	cm	cm	cm	room	kg	hp	P	kg
CL300	300cm/9’10’’	170cm/5’7’’	80cm/2’11’’	43cm/17’’	3	60	15	4	405
CL330	330cm/10’10’’	170cm/5’7’’	80cm/2’11’’	43cm/17’’	3	64	20	5	490
CL360	360cm/11’10’’	178cm/5’10’’	88cm/2’11’’	43cm/17’’	3	70	25	6	580
CL390	390cm/12’10’’	178cm/5’10’’	88cm/2’11’’	43cm/17’’	3	78	30	7	670

Process of Aluminum Hull

Process of Inflatable Tube

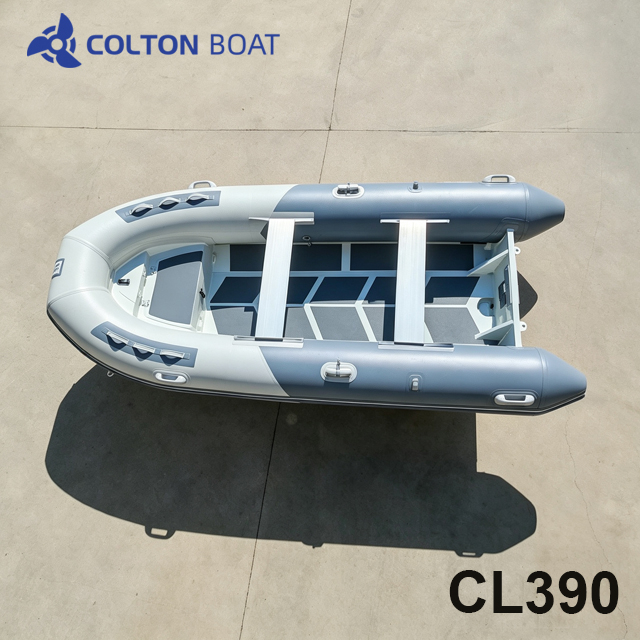

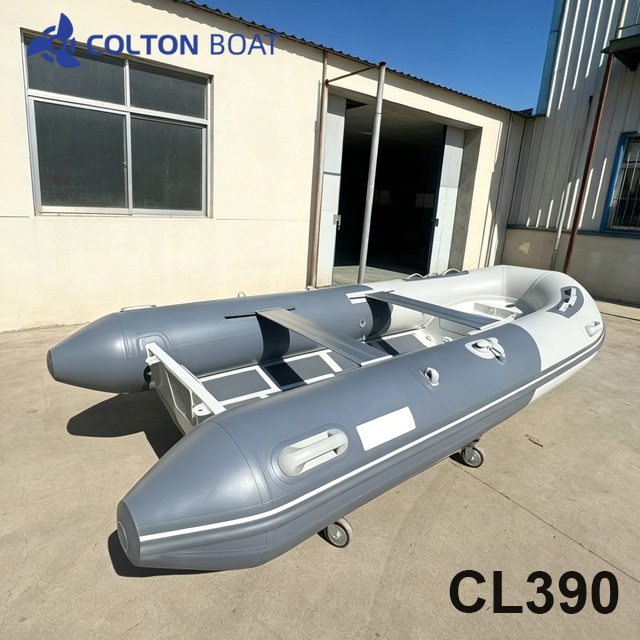

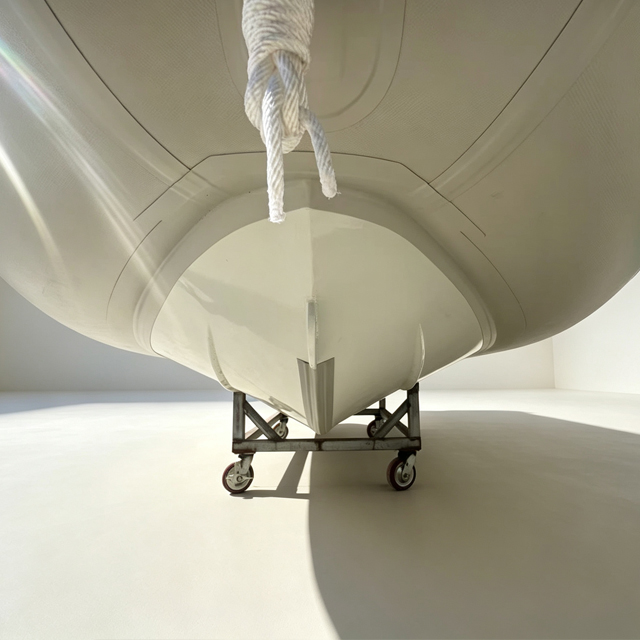

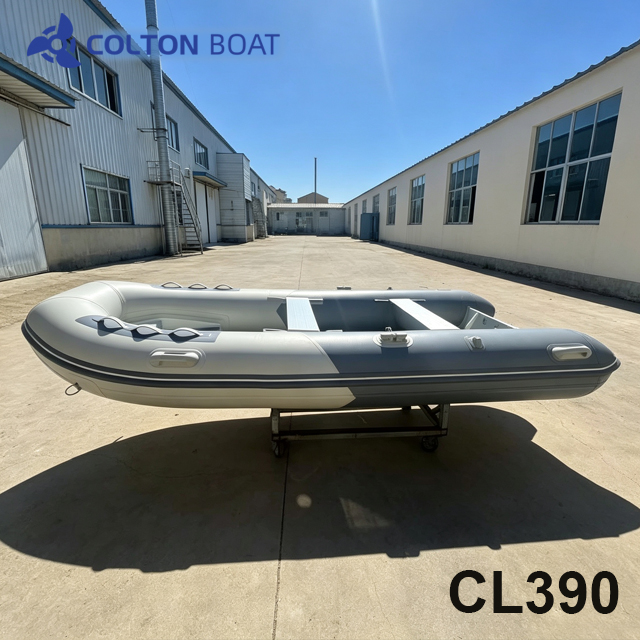

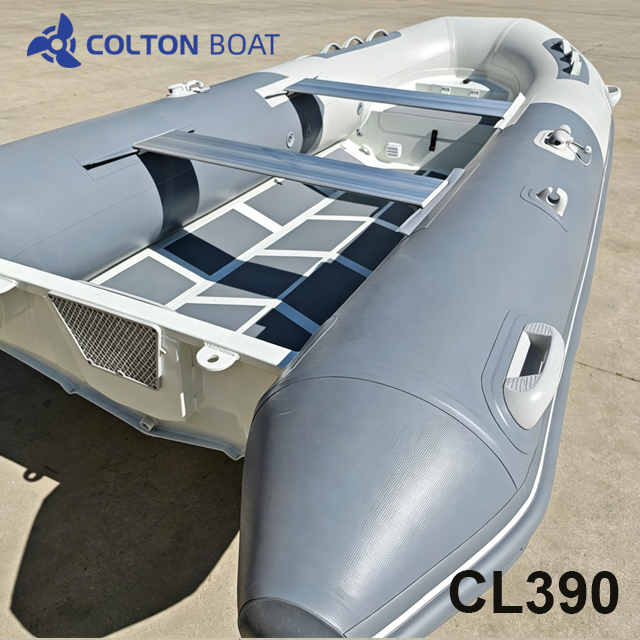

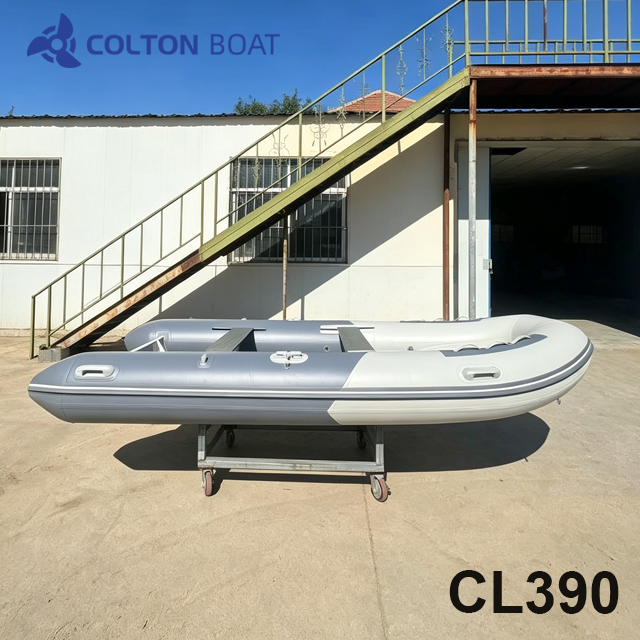

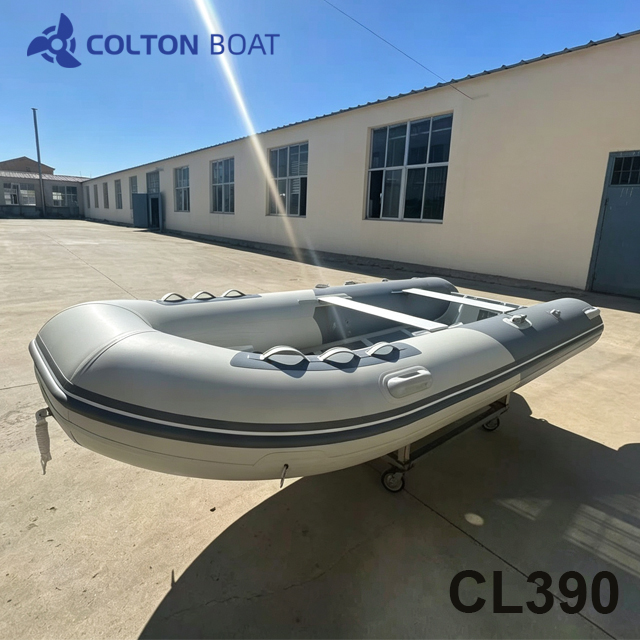

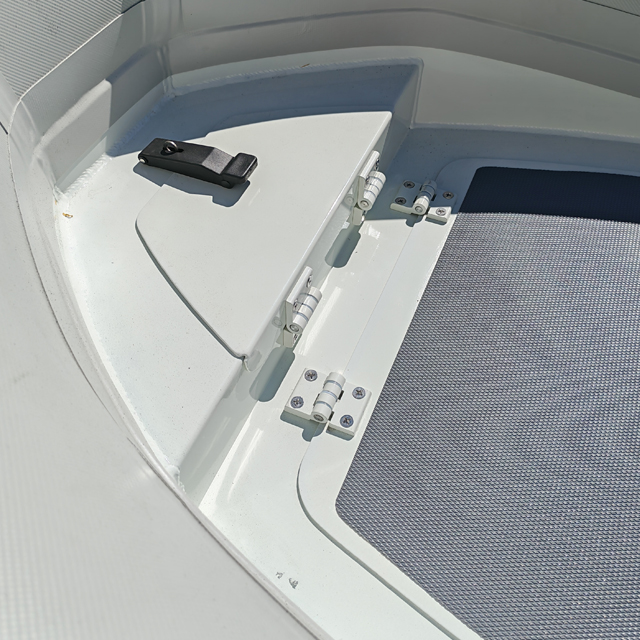

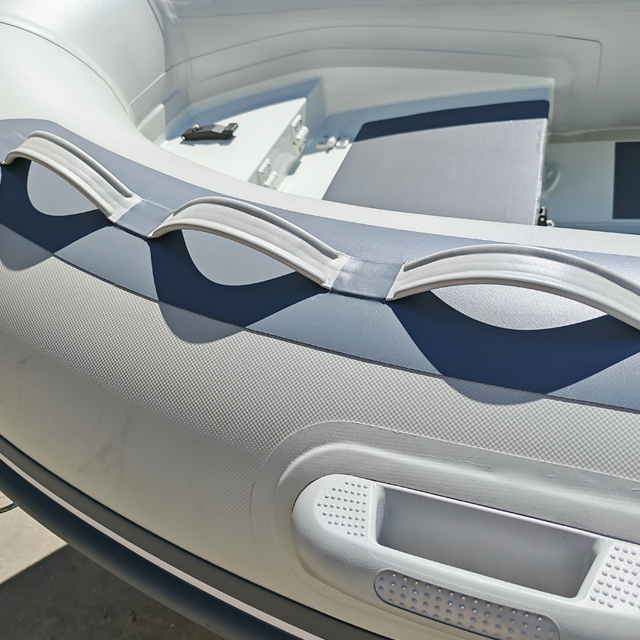

Detailed Pictures of CL390

Zodiac Boat and Motor

Rigid Hull Boat

Rubber Boat

Rib Boats for Sale

See Client Shots of the CL390

Packing and Shipment

Fabric Specification

Technical specification of ORCA

• Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.

• Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)

• Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m², Fabric width 145cm / Sold by linear meter

Orca-hypalon-fabric

Technical specification of PVC

Material properties	Value	Unit	Measuring Methods/Norm
Total weight	1450	g/m²	EN ISO 2286-2
Tensile strength warp/weft	3000 / 3000	N/50 mm	EN ISO 1421/V1
Tear strength warp/weft	250 / 250	N	DIN 53363
Adhesion	20	N/cm	PA 09.03 (intern)
Cold resistance	-30	°C	EN 1876-1
High Temperature	+70	°C	PA 07.04 (intern)
Light fastness	>6	Note, Value	EN ISO 105 B02
Crack resistance	100000 x		DIN 53359 A
Material	PES		DIN EN ISO 2076
Yarn count	1100		DIN EN ISO 2060
Weave	L 1/1		ISO 3572

PVC color card

Aluminum Rib boat hull power coating

AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.

Aluminum Rib boat hull power coating

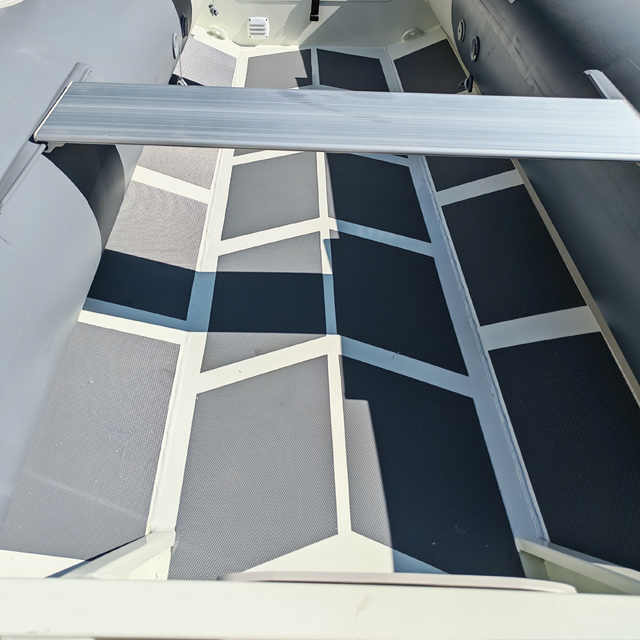

EVA Pad

Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.

EVA colorpad
