| Quantity: | |
|---|---|
| Standard features | Optional features |

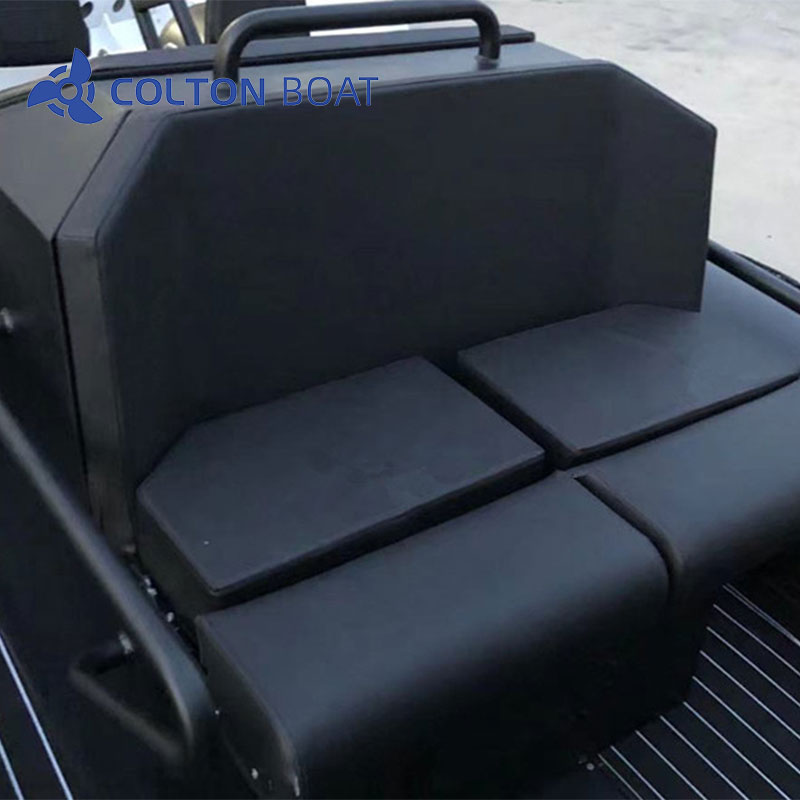

| • High tensile chromated&powder coated aluminum hull • PVC,Taiwan hypalon or Orca hypalon • Integrated transom supports • 180L Integrated built in fuel tank • Integrated inside keel • Lockable bow locker • Flush mount non-return valves • Self-draining valve • Safety valves • Lifting points and towing eyes • Anti-slip EVA pad • Full length keel guard • Middle console with front seat and windshield • Middle seat with cushion • Rear seat with sea cushions • Anchor holder or bollard • Aluminum roll bar with navigation lights • Bilge pump • One pair of aluminum oars • Foot pump • Repair kit | • Hydraulic steering system & steering wheel • Rear platform with ladder • Front sundeck • Boat trailer • T-Top • Boat cover • Shower system • Live fish well • Electric inflating pump • Rear table • Electric windlass • 8KG stainless steel anchor and 8mm anchor chain • Compass • VHF set • Blue tooth speaker system • Garmin/Lowrance/Simrad GPS and sounder • Searching light • Yamaha or Mercury engine |
Specification
Model | Overall length | Overall width | Internal width | Tube diameter | Chamber | Net weight | Max power | Max people | Max loading(kg) |
cm | cm | cm | cm | room | kg | hp | P | kg | |
SP520 | 520cm/17’ | 246cm/8’ | 130cm/4’3’’ | 53cm/21’’ | 5 | 480 | 90 | 10 | 1035 |
SP560 | 560cm/18’4’’ | 246cm/8’ | 130cm/4’3’’ | 53cm/21’’ | 5 | 540 | 115 | 11 | 1130 |
SP600 | 600cm/19’9’’ | 256cm/8’5’’ | 140cm/4’7’’ | 53cm/21’’ | 6 | 600 | 150 | 12 | 1275 |
SP660 | 660cm/21’8’’ | 256cm/8’5’’ | 140cm/4’7’’ | 53cm/21’’ | 6 | 670 | 200 | 13 | 1405 |
SP700 | 700cm/23’ | 266cm/8’9’’ | 150cm/4’11’’ | 53cm/21’’ | 6 | 800 | 250 | 14 | 1500 |
SP760 | 760cm/25’ | 297cm/9’9’’ | 175cm/5’9’’ | 56cm/22’’ | 6 | 920 | 300 | 15 | 1700 |
SP860 | 860cm/28’3’’ | 307cm/10’ | 185cm/6’ | 56cm/22’’ | 6 | 1395 | 500 | 17 | 2106 |
SP960 | 960cm/31’6’’ | 312cm/10’3'' | 190cm/6’3'' | 56cm/22’’ | 8 | 1700 | 600 | 18 | 2500 |
| SP990 | 990cm/32'6'' | 312cm/10'3'' | 190cm/6'3'' | 56cm/22'' | 8 | 1800 | 600 | 18 | 2500 |
SP1050 | 1050cm/34’5’’ | 330cm/10’10’’ | 200cm/6’7’’ | 60cm/24’’ | 8 | 1900 | 600 | 18 | 2500 |
SP1150 | 1150cm/37’9’’ | 370cm/12’2’’ | 240cm/7’10’’ | 60cm/24’’ | 8 | 2200 | 800 | 20 | 3000 |

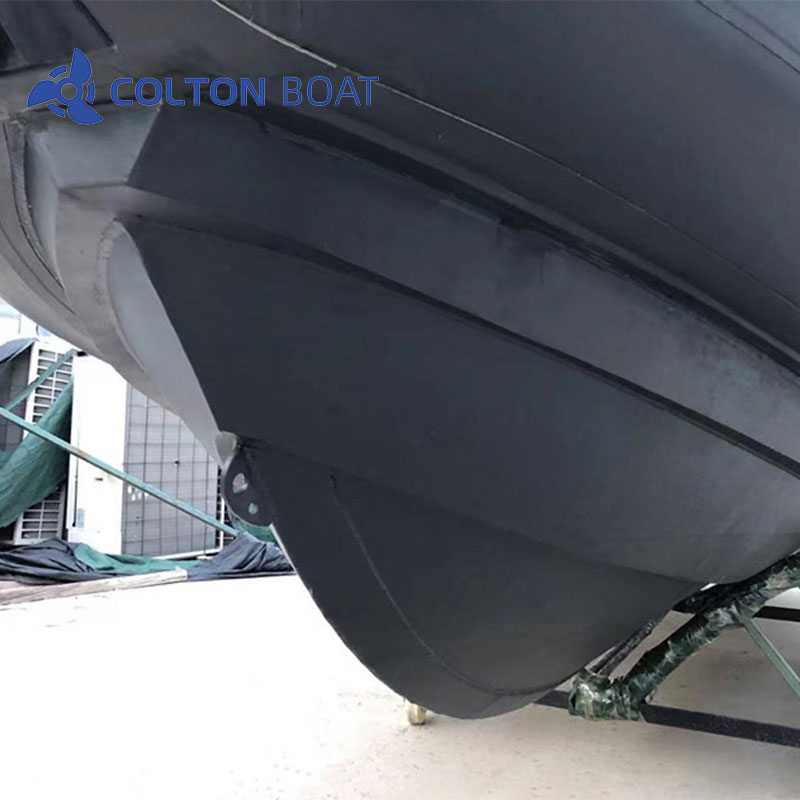

Process of aluminum hull
Process of inflatable tube

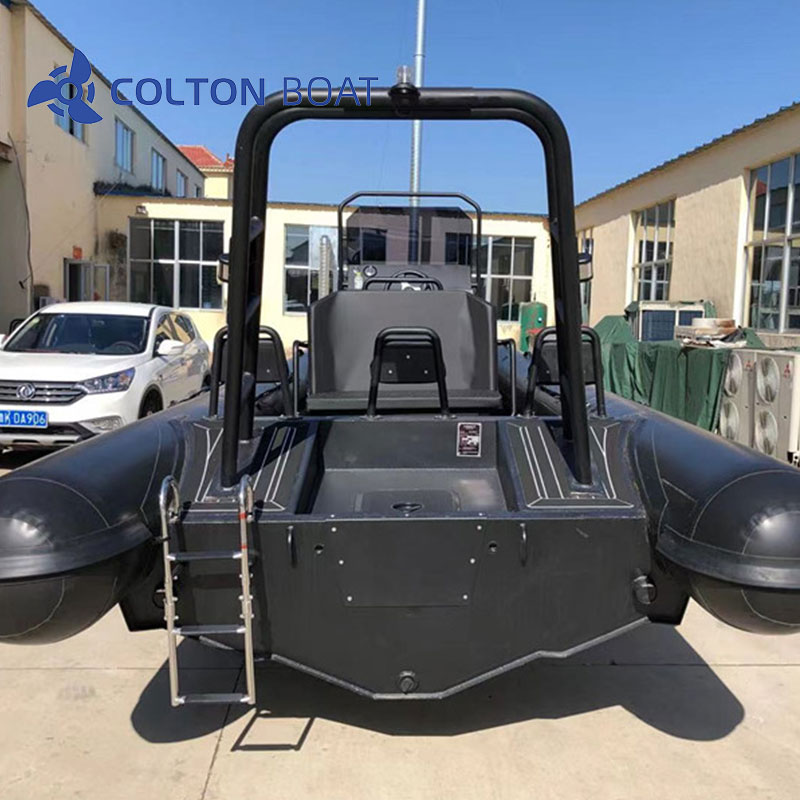

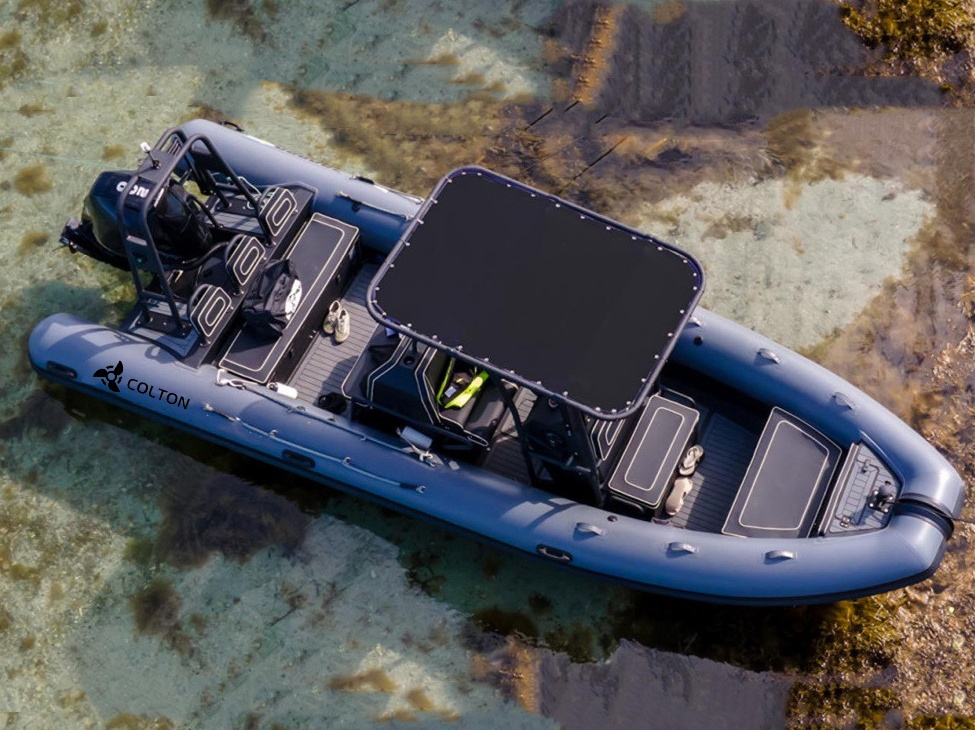

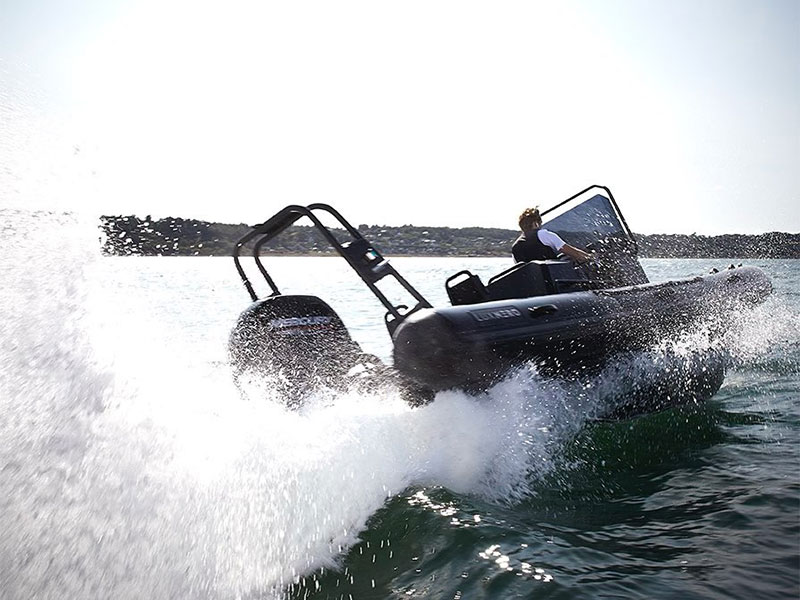

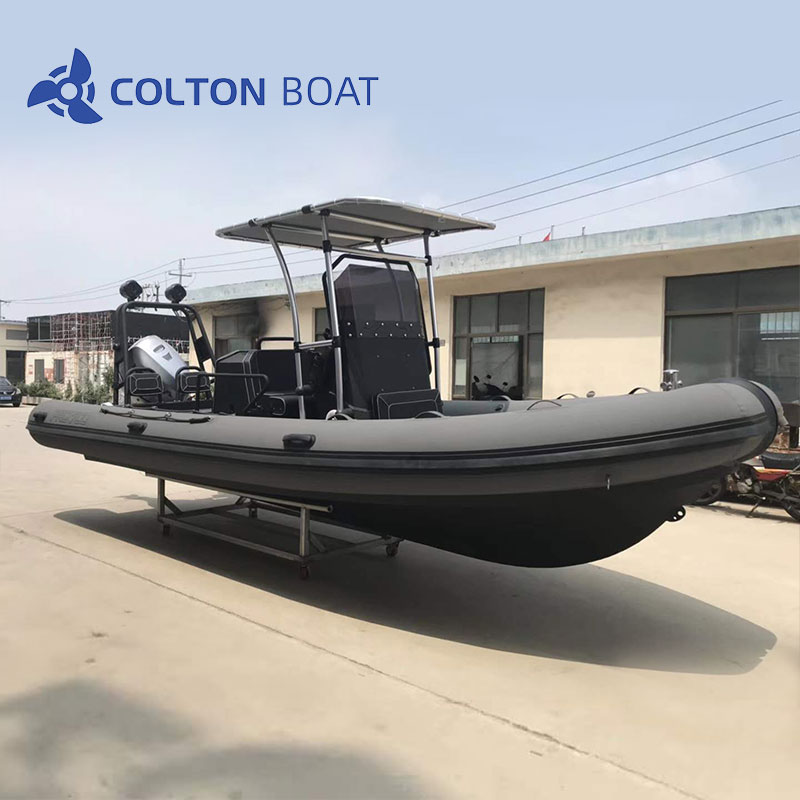

Pictures of SP700 with different color and design

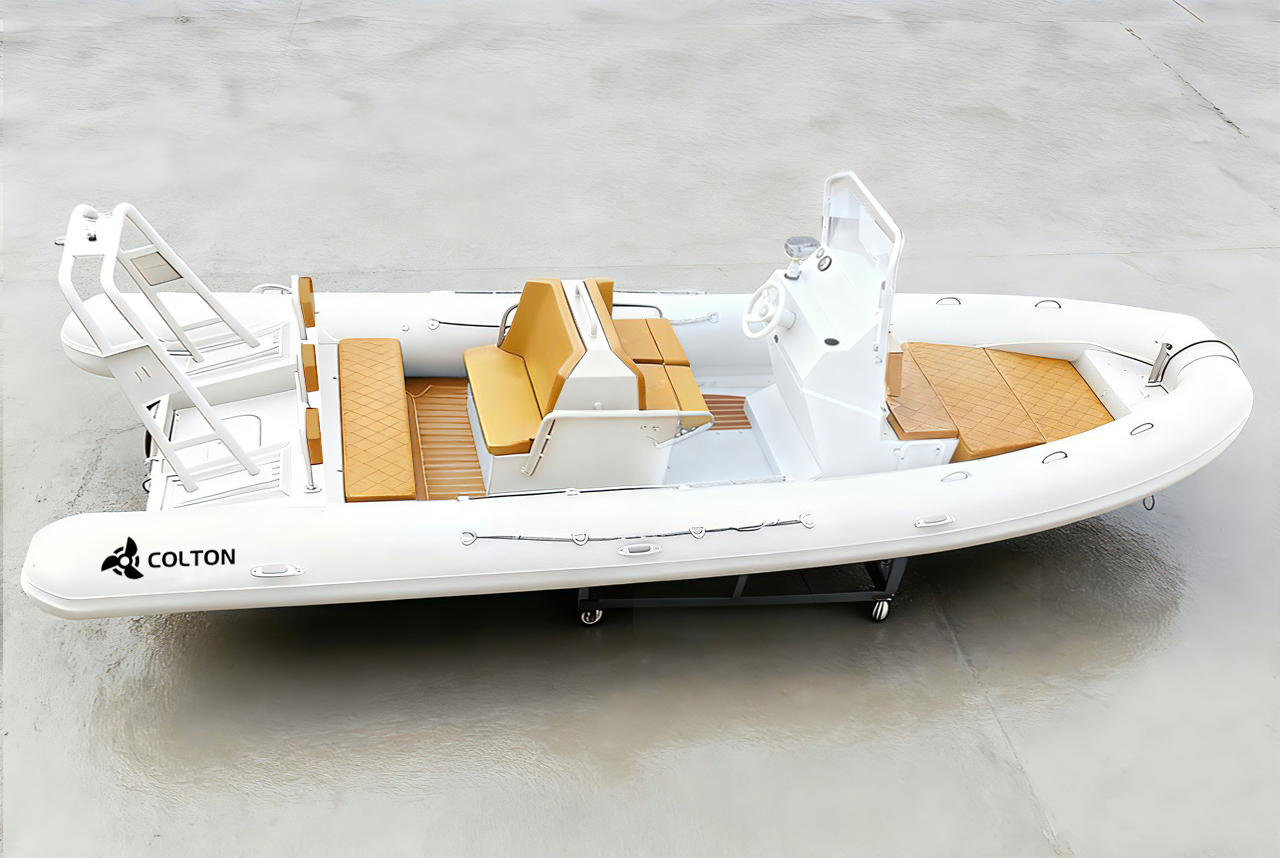

White hull+White tube

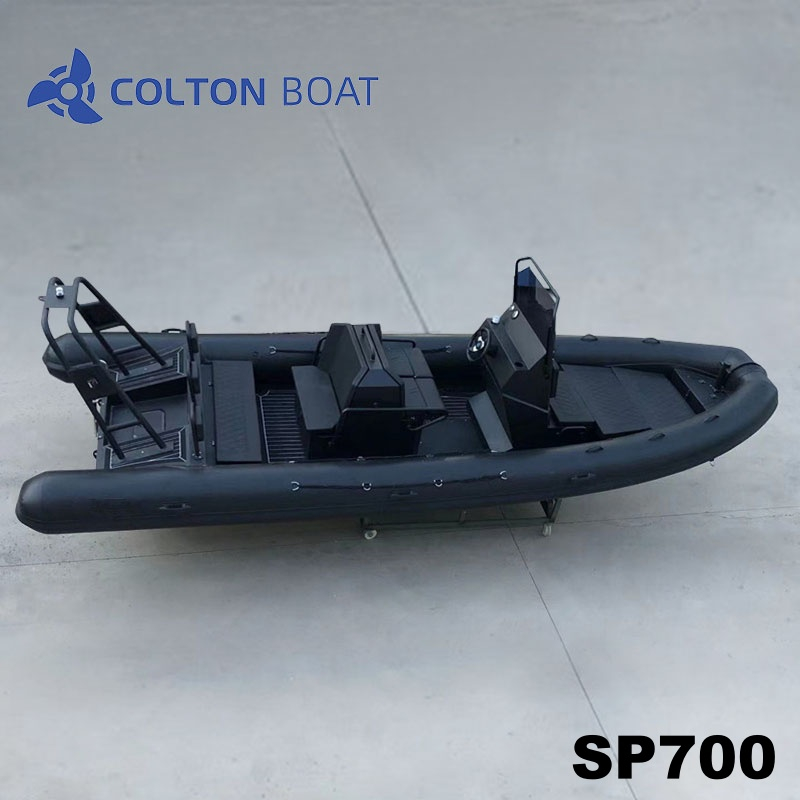

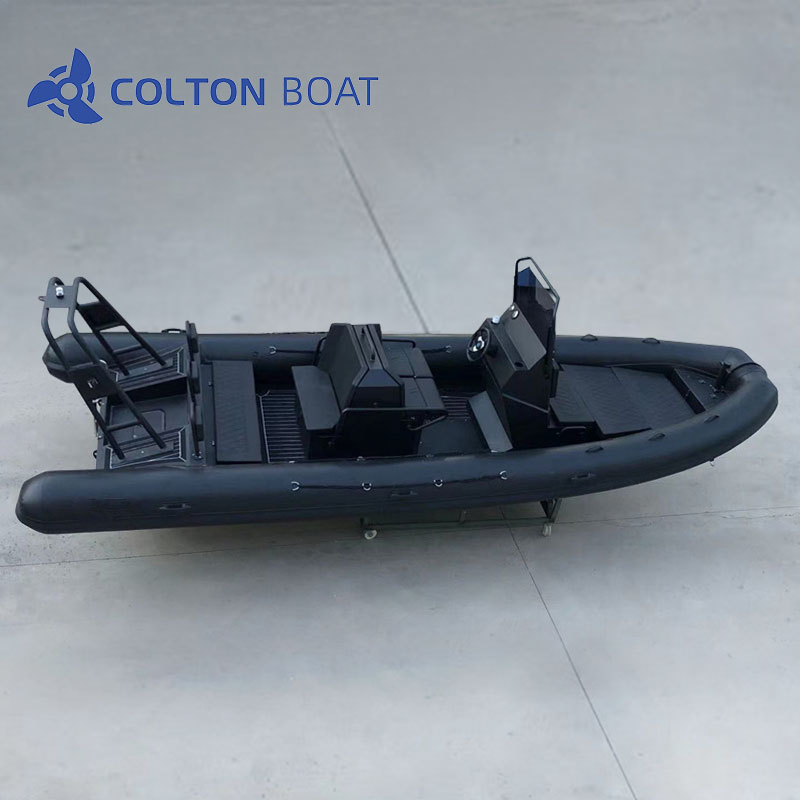

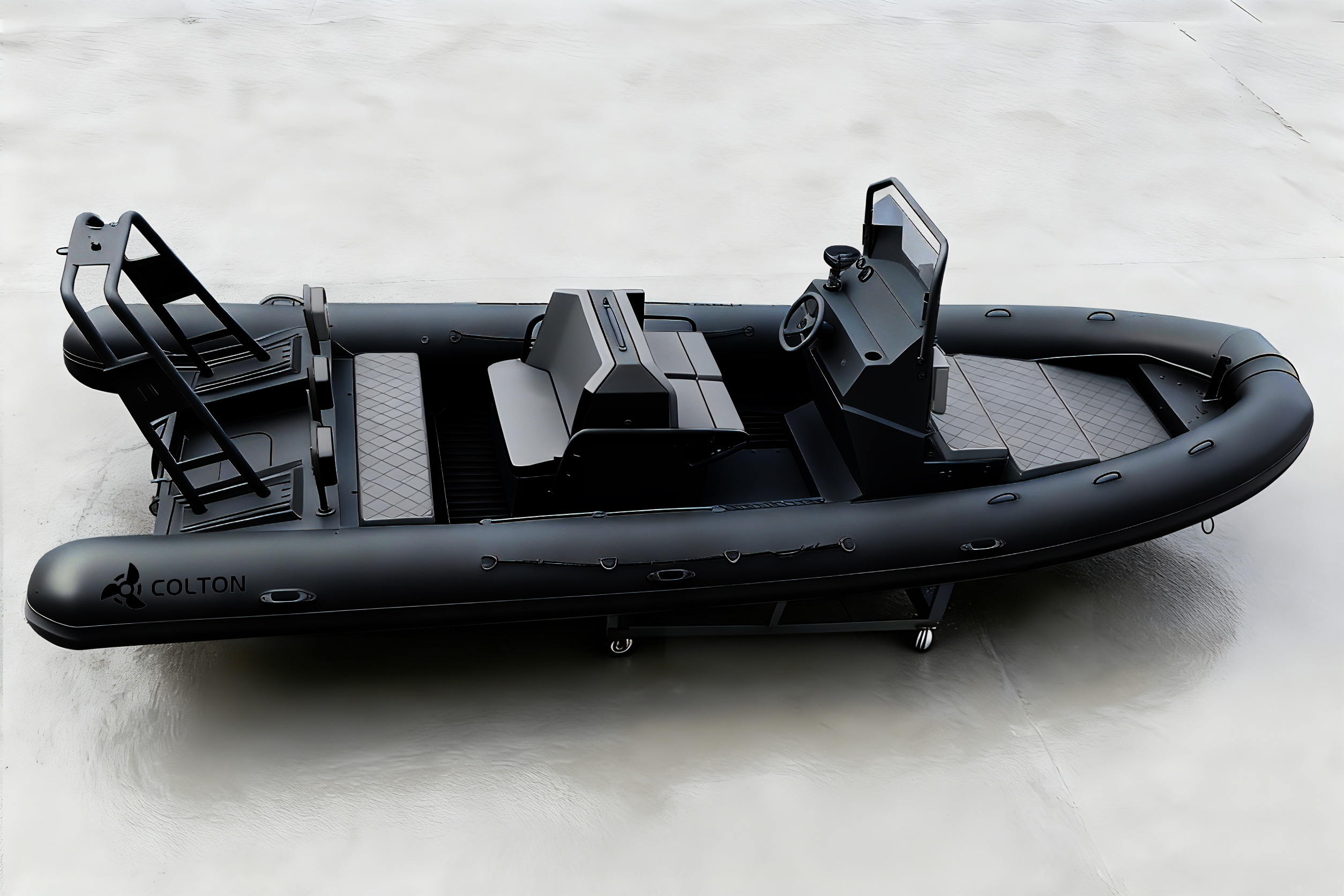

Black hull+Black tube

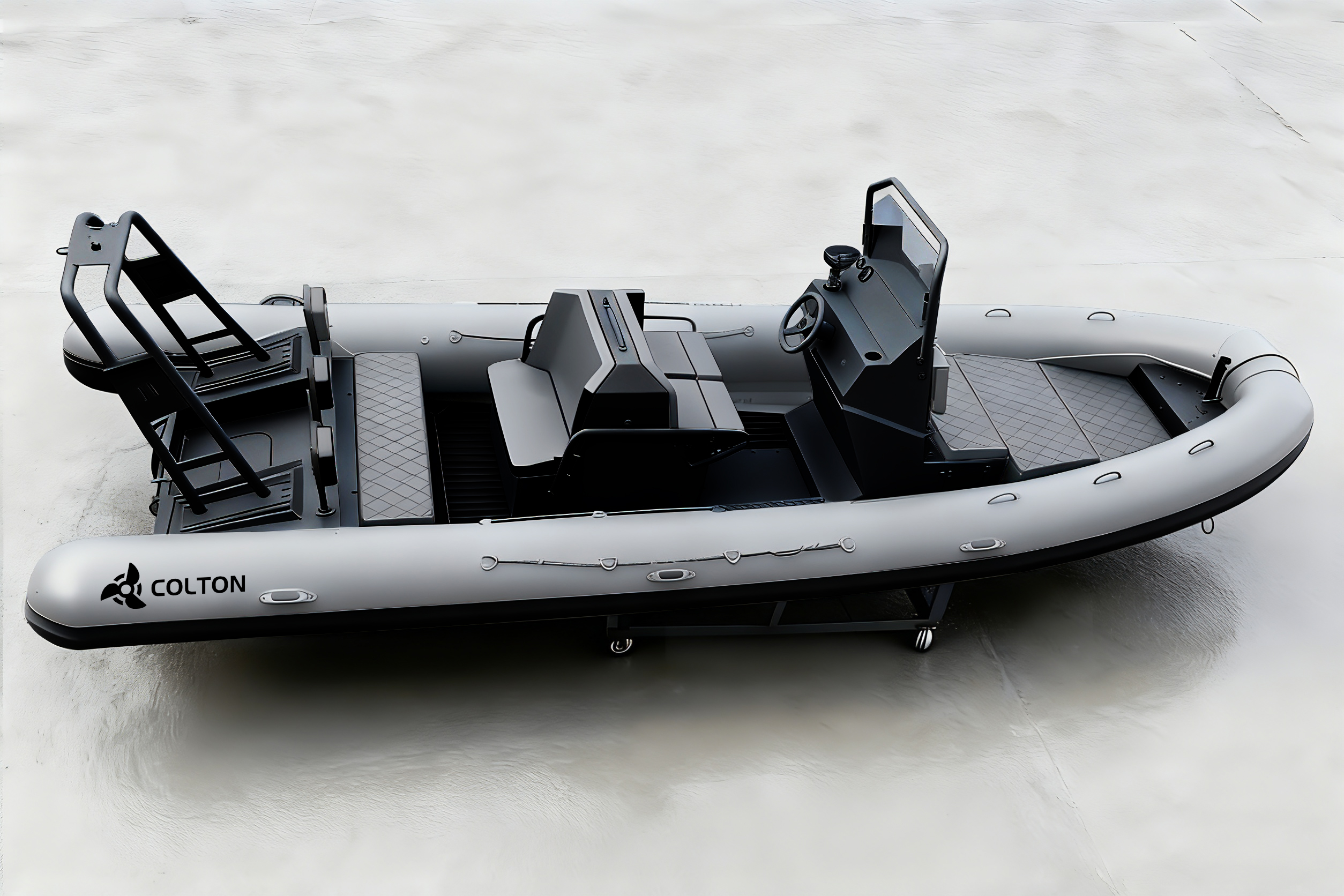

Black hull+Dark gray tube

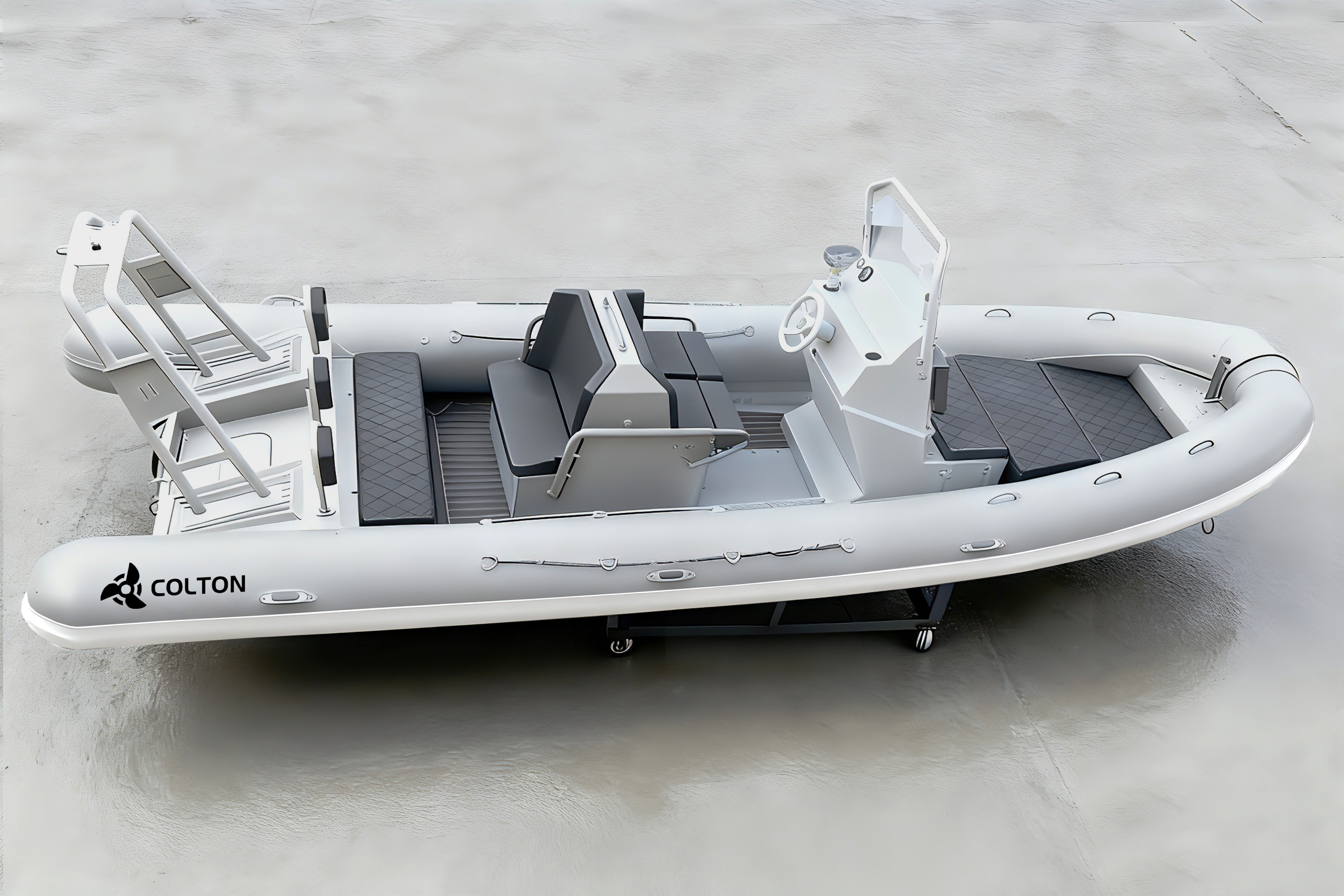

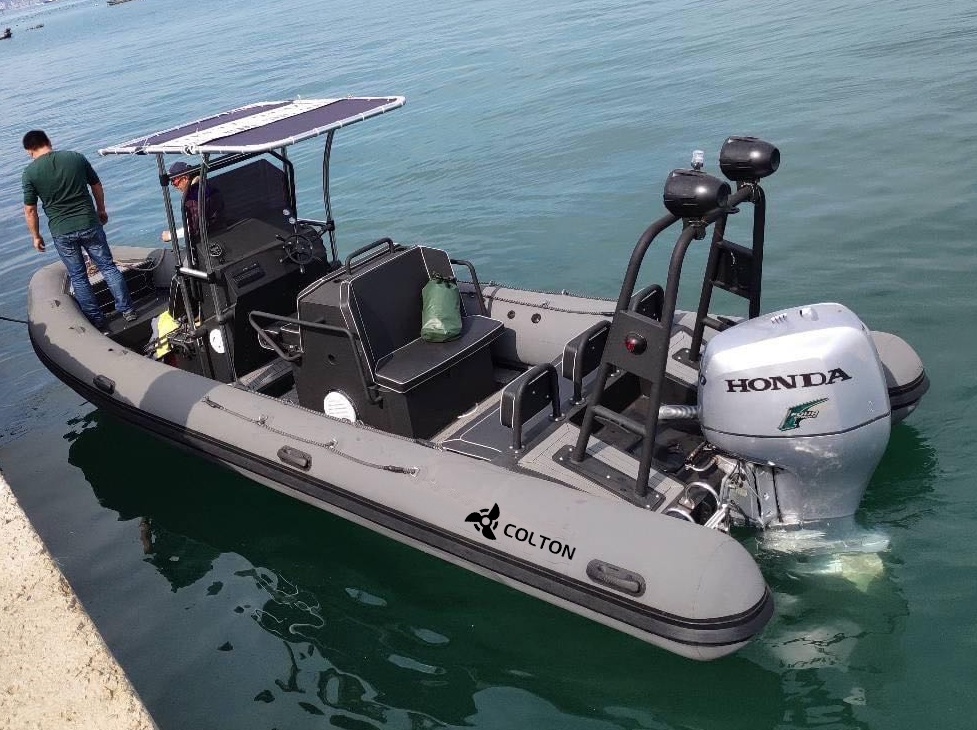

Gray hull+Light gray tube
Sketch of aluminum RIB boat SP700

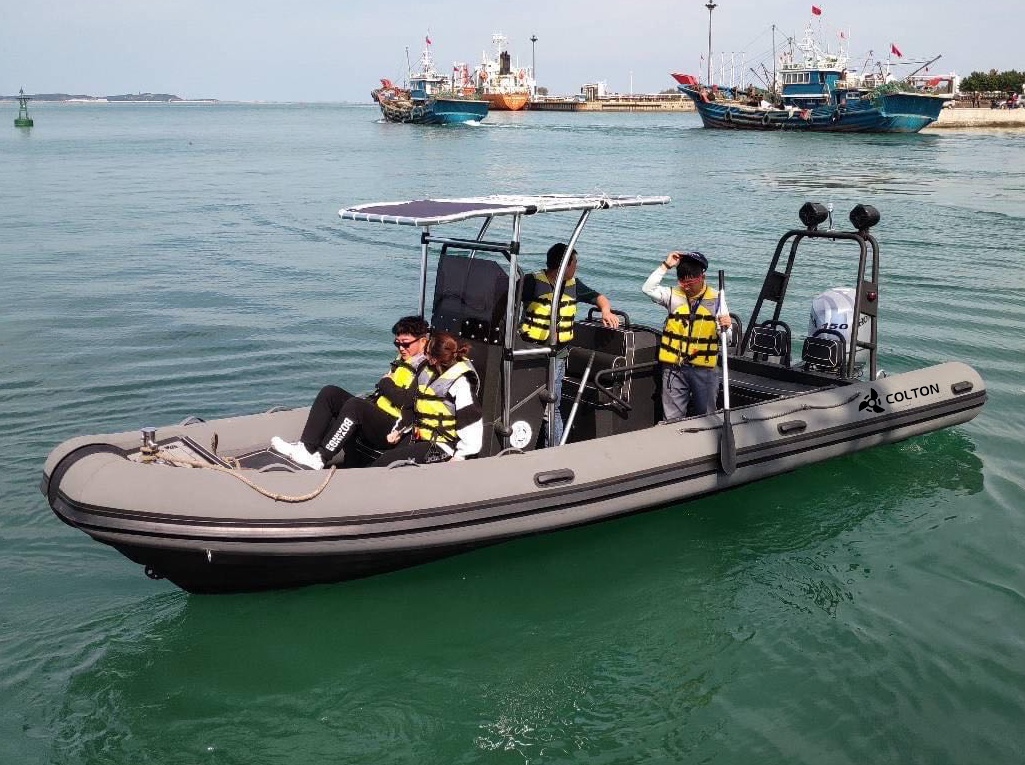

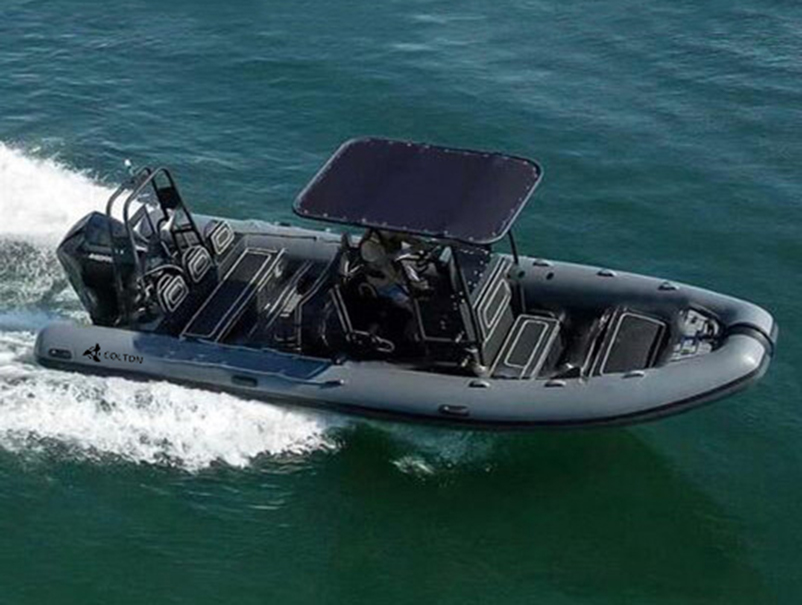

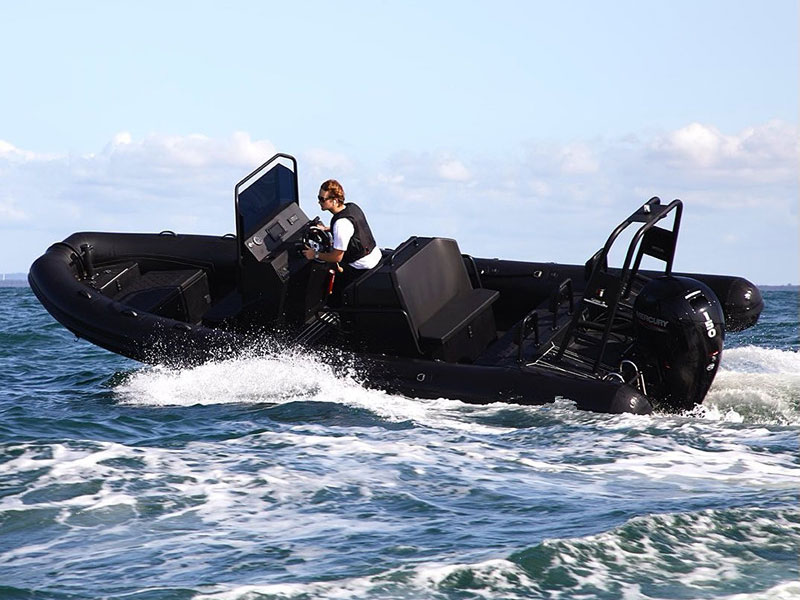

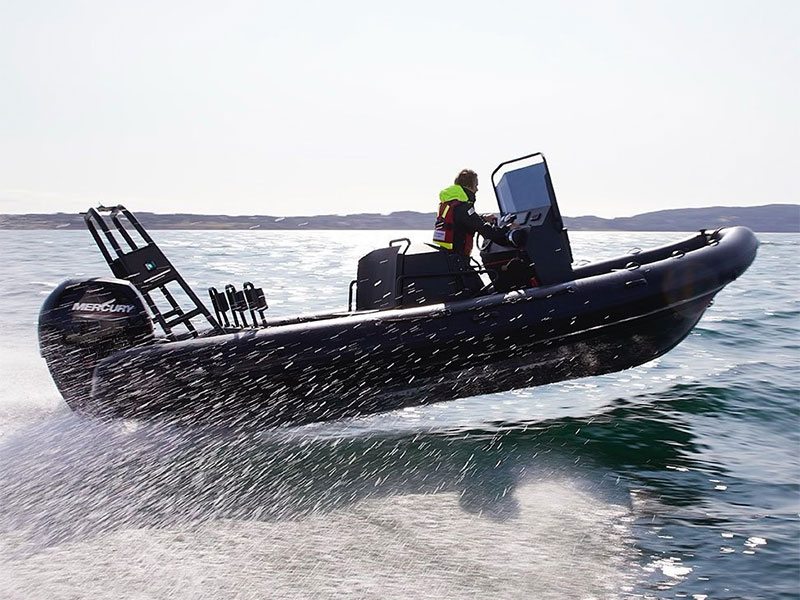

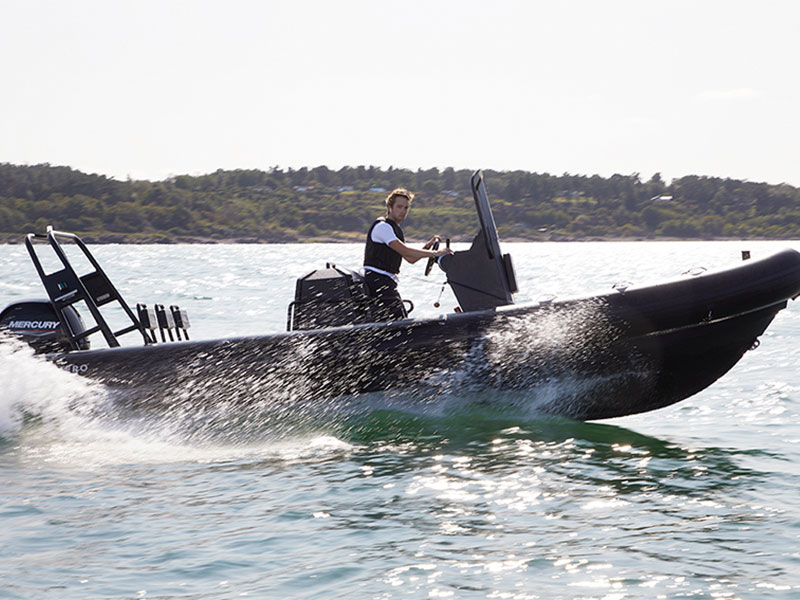

See Client Shots of the SP700
Packing and shipment
Fabric specification
Technical specification of ORCA
• Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.
• Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)
• Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m², Fabric width 145cm / Sold by linear meter
Technical specification of PVC
Material properties | Value | Unit | Measuring Methods/Norm |
Total weight | 1450 | g/m² | EN ISO 2286-2 |
Tensile strength warp/weft | 3000 / 3000 | N/50 mm | EN ISO 1421/V1 |
Tear strength warp/weft | 250 / 250 | N | DIN 53363 |
Adhesion | 20 | N/cm | PA 09.03 (intern) |
Cold resistance | -30 | °C | EN 1876-1 |
High Temperature | +70 | °C | PA 07.04 (intern) |
Light fastness | >6 | Note, Value | EN ISO 105 B02 |
Crack resistance | 100000 x | DIN 53359 A | |
Material | PES | DIN EN ISO 2076 | |
Yarn count | 1100 | DIN EN ISO 2060 | |
Weave | L 1/1 | ISO 3572 |
Aluminum Rib boat hull power coating
AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.
EVA pad
Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.
Certificate
