| Standard features | Optional features |
| • PVC, Taiwan hypalon or ORCA hypalon fabric for tube • Integrated transom supports • 300L Integrated built in fuel tank • Lockable bow locker with seat cushion • Flush mount non-return valves • Self-draining valve • Safety valves • Lifting points and towing eyes • Middle console with front seat and windshield • Rear seat with seat cushions • Luxury anchor holder with roller • Fiberglass roll bar with navigation lights • Outside and inside reinforced motor pad • Rear swimming platform with ladder • Bilge pump • Ski pole • Fridge and gas cooker • One pair of aluminum oars • Foot pump • Repair kit | • Boat trailer • Hydraulic steering system • Bathing system • Electric pump • Sunshade • Boat cover • Table • Diamond stitch seat design • EVA pad or teak floor • GPS and VHF • Speakers • Deck light • Electric windlass • Front or rear sunbed • Yamaha or Mercury engine |
Specification
Model | Overall length | Overall width | Tube diameter | Chamber | Max power | Capacity | Max loading | Weight |
cm | cm | cm | room | hp | person | kg | kg | |
RIB580 | 580cm/19’ | 238cm/7’10’’ | 58cm/22.8’’ | 5 | 115 | 11 | 1130 | 460 |
RIB600 | 600cm/19’9’’ | 250cm/8’3’’ | 58cm/22.8’’ | 6 | 150 | 12 | 1275 | 480 |
RIB680A | 680cm/22’4’’ | 252cm/8’4’’ | 52cm/20.5’’ | 7 | 200 | 12 | 1405 | 500 |
RIB680B | 680cm/22’4’’ | 252cm/8’4’’ | 52cm/20.5’’ | 7 | 200 | 12 | 1405 | 650 |
RIB700 | 700cm/23’ | 285cm/9’4’’ | 52cm/20.5’’ | 7 | 250 | 14 | 1500 | 700 |
RIB760 | 760cm/25’ | 270cm/8’10’’ | 52cm/20.5’’ | 7 | 300 | 15 | 1700 | 800 |
RIB800 | 800cm/26’3’’ | 285cm/9’4’’ | 55cm/21.7’’ | 7 | 400 | 16 | 1850 | 960 |
RIB860 | 860cm/28’ | 285cm/9’4’’ | 55cm/21.7’’ | 7 | 500 | 17 | 2106 | 1000 |
RIB960 | 960cm/31’6’’ | 320cm/10’6’’ | 60cm/23.6’’ | 7 | 500 | 18 | 2500 | 2200 |
RIB1200 | 1200cm/39’5’’ | 335cm/11’ | 60cm/23.6’’ | 7 | 800 | 25 | 3500 | 2500 |
Process of fiberglass hull
Process of inflatable tube

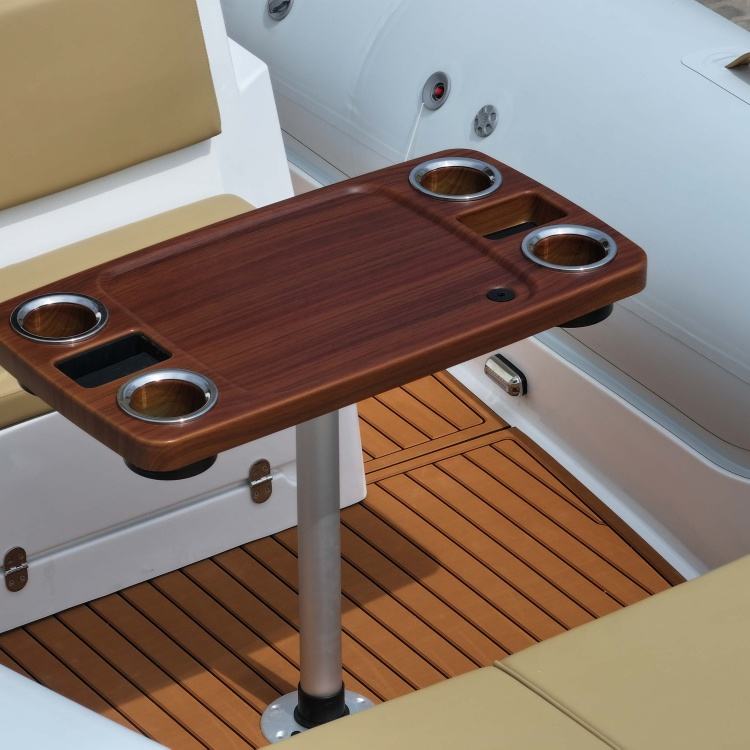

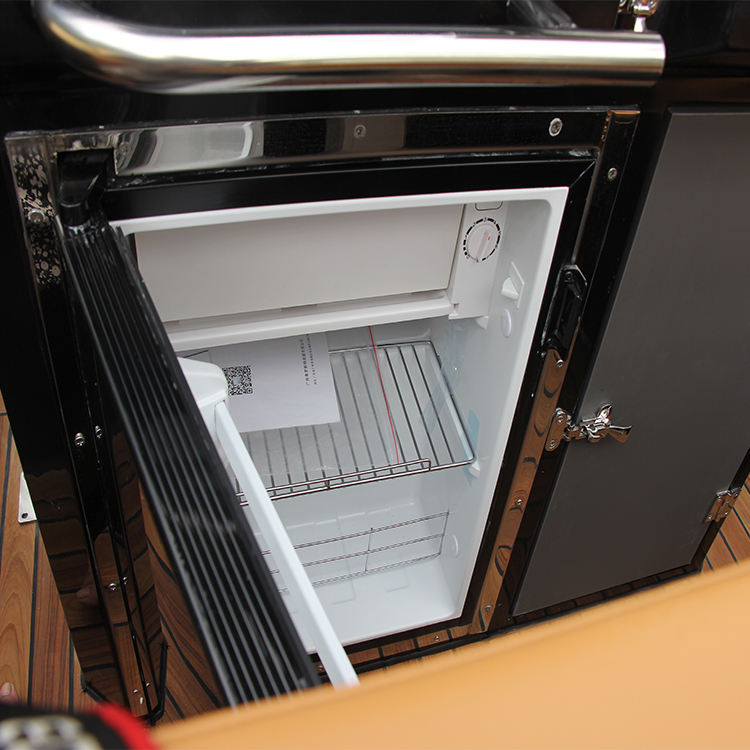

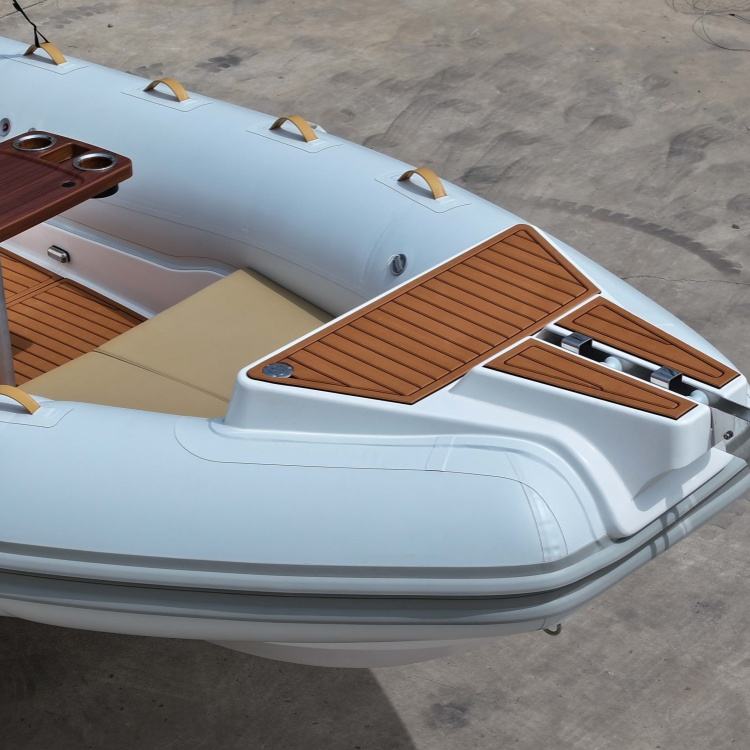

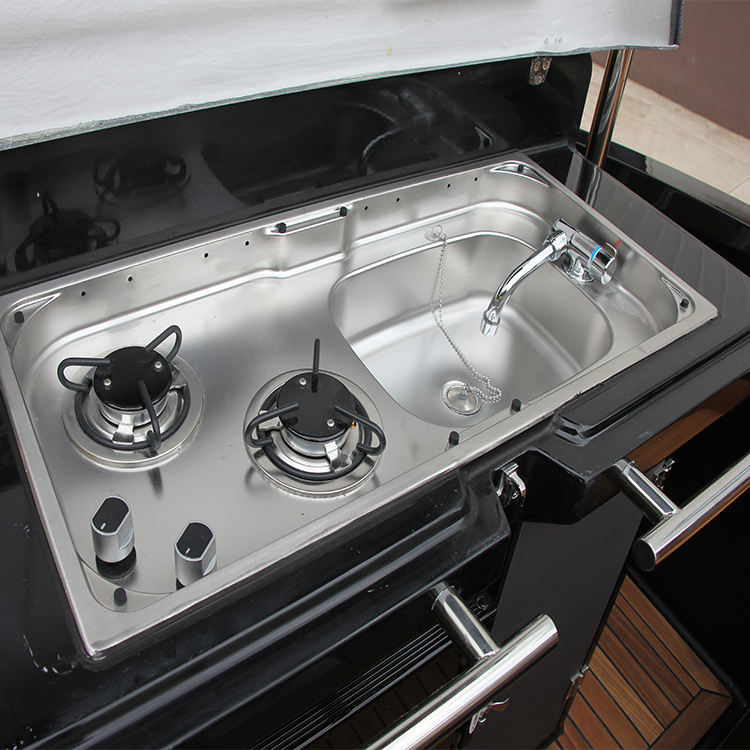

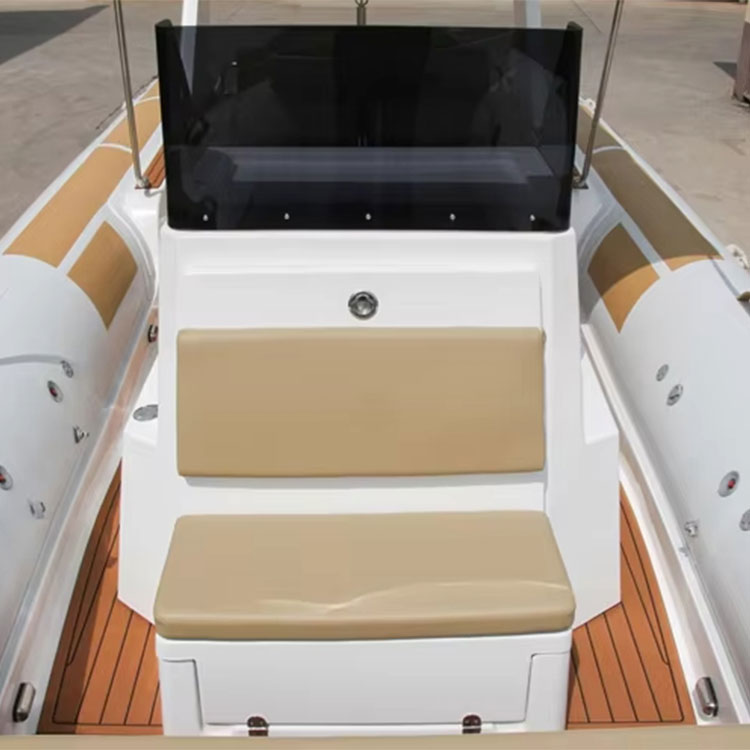

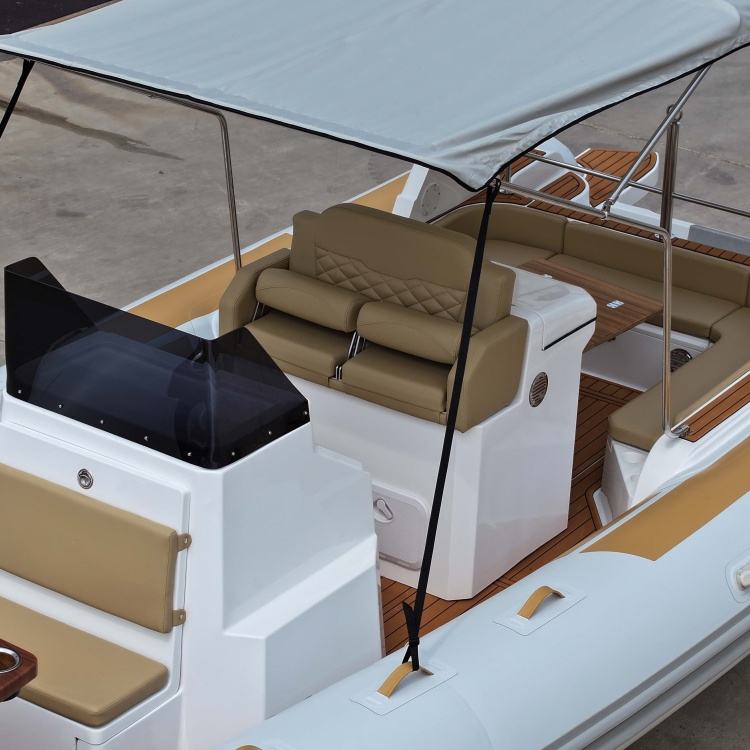

Details of RIB860

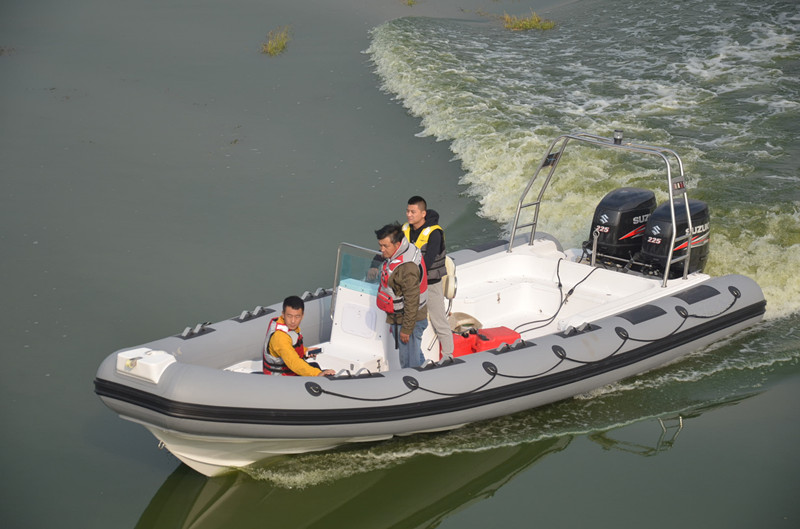

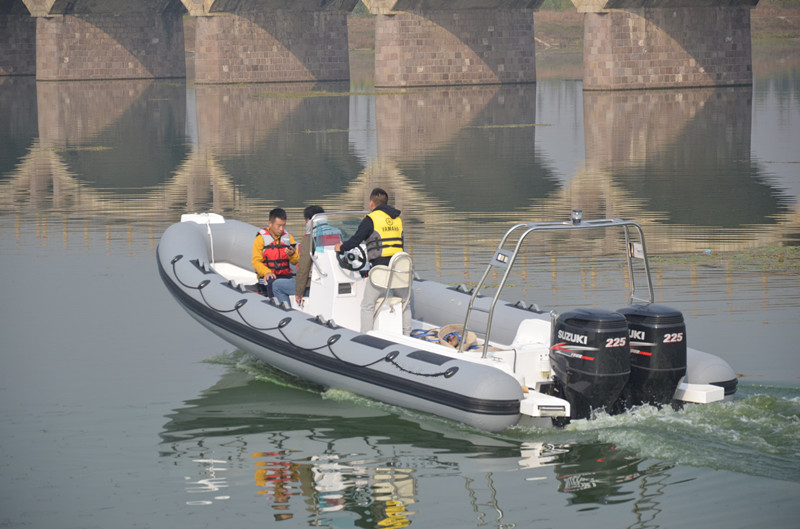

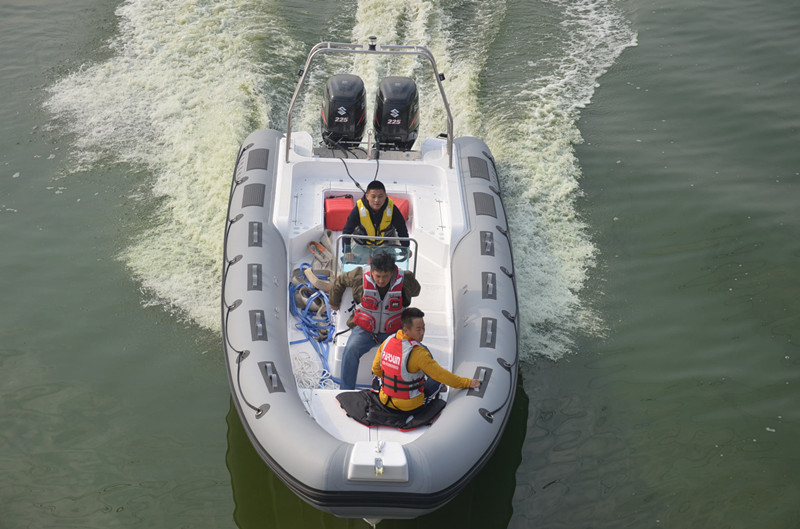

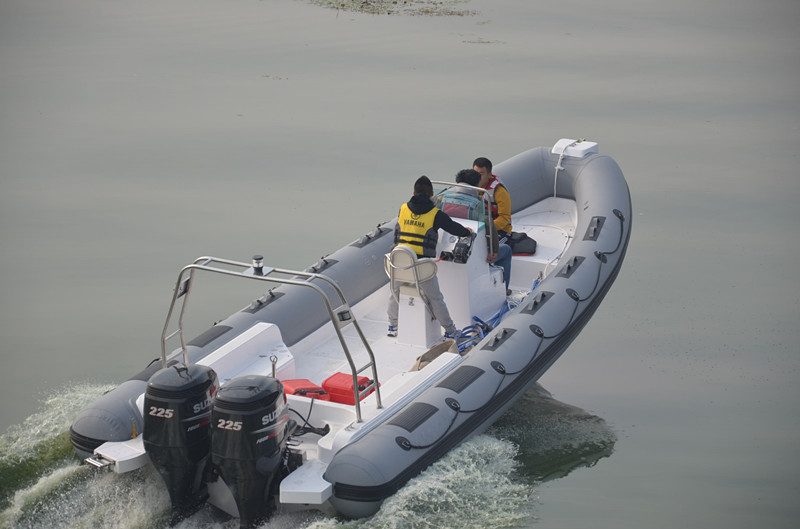

Boat testing pictures
Packing and shipment
Fabric specification
Technical specification of ORCA
• Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.
• Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)
• Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m²
• Fabric width 145cm / Sold by linear meter
Technical specification of PVC
Material properties | Value | Unit | Measuring Methods/Norm |
Total weight | 1450 | g/m² | EN ISO 2286-2 |
Tensile strength warp/weft | 3000 / 3000 | N/50 mm | EN ISO 1421/V1 |
Tear strength warp/weft | 250 / 250 | N | DIN 53363 |
Adhesion | 20 | N/cm | PA 09.03 (intern) |
Cold resistance | -30 | °C | EN 1876-1 |
High Temperature | +70 | °C | PA 07.04 (intern) |
Light fastness | >6 | Note, Value | EN ISO 105 B02 |
Crack resistance | 100000 x | DIN 53359 A | |
Material | PES | DIN EN ISO 2076 | |
Yarn count | 1100 | DIN EN ISO 2060 | |
Weave | L 1/1 | ISO 3572 |
Aluminum Rib boat hull power coating
AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.
EVA pad
Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.
Certificate
