Every experienced boater knows the paradox of the Aluminum RIB.
You want the lightweight agility to launch off a wave and the raw speed that only a high horsepower Mercury or Yamaha can provide. But in the back of your mind, there is always that one question:
“Is the transom strong enough to handle this?”
You have seen the videos. A beautiful RIB accelerating hard, the nose pointing at the sky, the engine shaking violently—until CRACK. The transom fails. The motor dips into the water. The dream boat becomes a salvage operation.
That fear is valid. Many manufacturers build a lightweight hull but treat the transom as an afterthought.
At Colton Yacht, we solved that problem not with marketing hype, but with variable-thickness aluminum engineering.
Most budget aluminum RIBs use a single thickness (usually 3 mm or 4 mm) for the entire transom. This creates a "weak link" chain. A 4 mm plate might hold a 60 HP motor at idle, but under the torsion of a sharp turn or the slam of a wave, it flexes.When aluminum flexes repeatedly, it work-hardens and then cracks.
Our engineering team asked a different question: Where does the stress actually go?
The answer dictates our build process.

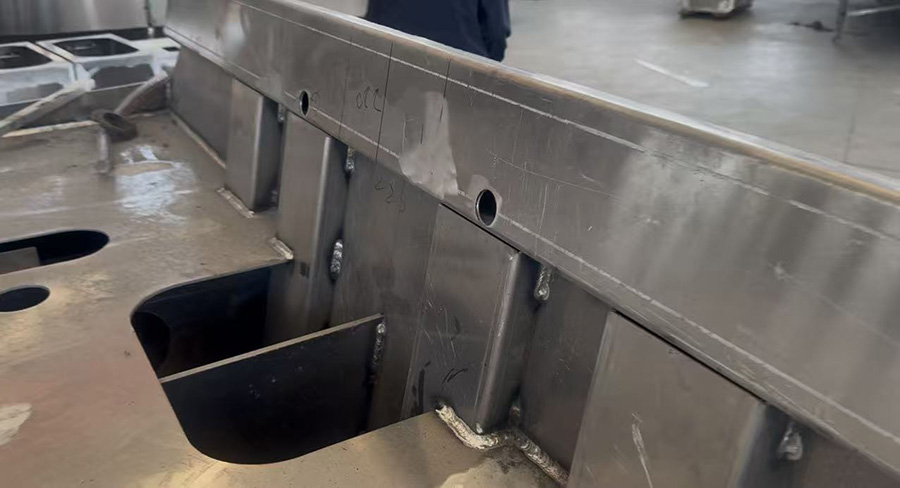

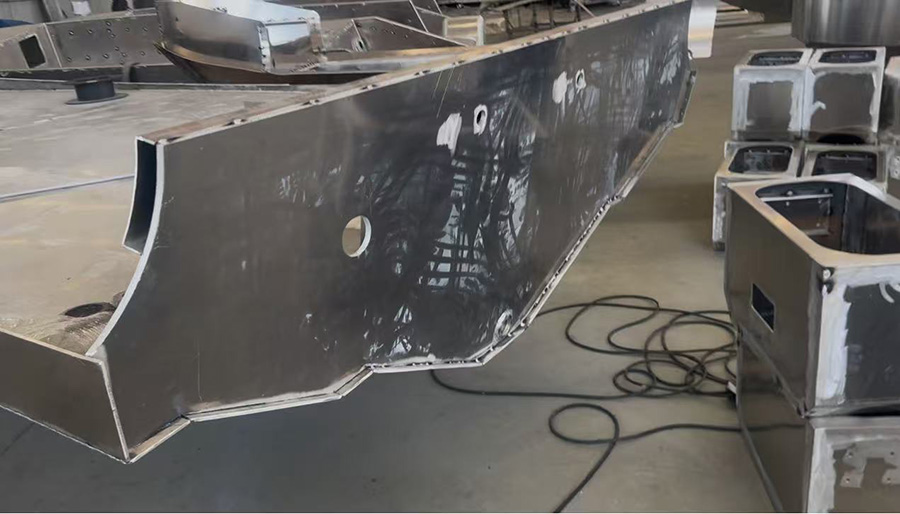

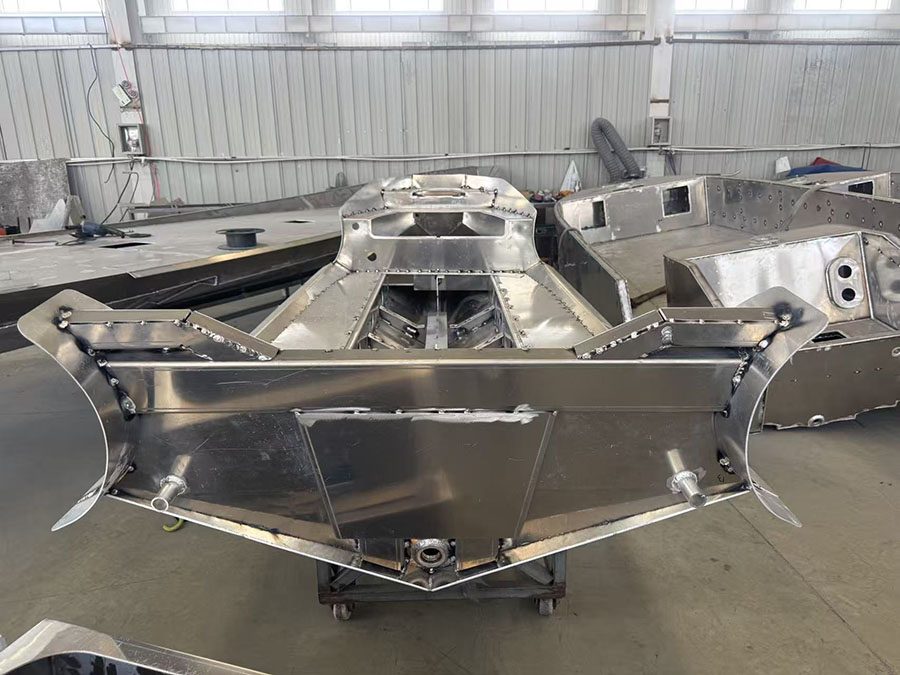

We do not just "make a transom." We build a load-managing chassis using marine-grade aluminum plate, ranging from 3mm to 10mm thickness depending on the stress zone.
The Core Zone (10 mm) – The Power Absorption Hub
Directly behind the outboard mounting bolts, where the engine clamps down and pushes forward, we use 10mm aluminum plate.
Why: This zone takes 100% of the shear force from your propeller.
The Result: Zero flex under full throttle. The engine stays exactly where the naval architect intended it to be.
The Spreader Zone (5 mm-8 mm) – The Impact Diffuser
Moving outward toward the tubes and the bottom hull, the thickness transitions to 5 mm-8 mm.
Why: This distributes the kinetic energy of a wave impact across the entire beam of the boat, rather than concentrating it on the motor bolts.
The Result: No "hot spots" of stress. The boat absorbs impact like a spring, not a rigid box that shatters.
The Upper Wing Zone (3 mm) – The Lightweight Stabilizer
The top edge of the transom, above the waterline and away from the primary thrust vector, uses 3 mm aluminum.
Why: Weight reduction. You don't need 10 mm of steel where there is no stress.
The Result: You keep the lightweight advantage of an Aluminum RIB without sacrificing an ounce of strength in the critical zones.
Zone | Thickness | Function |
Engine Mount Core | 10 mm | Absorbs 100% of thrust & torque |
Lower Hull Connection | 5-8 mm | Diffuses impact energy & prevents fracture |
Upper/Wing Section | 3 mm | Reduces weight, maintains agility |
You asked: “Has this design been water-tested?”
Yes. And the numbers prove the physics.
We tested our 10 mm-core transom against a standard 4 mm single-sheet transom using a 115 HP Yamaha.
The Standard 4 mm RIB: Showed 4.2 mm of flex at the engine mount during hard acceleration. This changed the engine trim angle by 3 degrees, causing the bow to rise 18 inches higher than neutral.
Our 3 mm-10 mm Variable RIB: Showed 0.4 mm of flex (negligible). The engine stayed square. The bow rose only 6 inches.
The Fuel Efficiency Win: Because our transom doesn't flex, the engine thrust goes backwards, not upwards. Our customers report 15-20% better fuel economy at cruising speed compared to competitor boats with the same motor.
To keep your boat safe and fast, follow our validated specifications.
Maximum Horsepower (3 mm-10 mm Transom): Verified up to 150 HP (Mercury / Yamaha 4-stroke). Suggested Optimal
Horsepower: 70% of Max (approx 90-115 HP) – Best fuel economy & planing time. Transom Shaft Requirement: Ultra-Long (25 inch / 635 mm) required for 90HP+ to prevent cavitation.Minimum Thickness for 60 HP: 6 mm core (Our 10 mm core is over-engineered for safety)
You cannot cheat physics. A lightweight boat with a weak transom is a dangerous boat. A heavy boat with a thick transom is a slow boat.
Our 3mm-to-10mm variable architecture is the solution to that paradox.
At the dock: Light enough to tow with a small SUV.
At WOT (Wide Open Throttle): Strong enough to hold a 150HP without cracking.
In the chop: Stable enough to keep the bow down and the fuel bill low.
Don't ask a salesman if the transom is "strong." Ask them: “Where is your 10mm plate?”
If they can’t tell you, walk away.
If they point to Colton Boat, start the engine. You have just found the most durable Aluminum RIB on the water.
