| Quantity: | |
|---|---|
| Standard features | Optional features |
| • High tensile chromated&powder coated aluminum hull • PVC,Taiwan hypalon or Orca hypalon • Integrated transom supports • 130L Integrated built in fuel tank • Integrated inside keel • Lockable bow locker • Flush mount non-return valves • Self-draining valve • Safety valves • Lifting points and towing eyes • Anti-slip EVA pad • Full length keel guard • Middle console with front seat and windshield • Middle seat with cushion • Rear seat with sea cushions • Anchor holder or bollard • Aluminum roll bar with navigation lights • Bilge pump • One pair of aluminum oars • Foot pump • Repair kit | • Hydraulic steering system & steering wheel • Rear platform with ladder • Front sundeck • Boat trailer • T-Top • Boat cover • Shower system • Live fish well • Electric inflating pump • Rear table • Electric windlass • 8KG stainless steel anchor and 8mm anchor chain • Compass • VHF set • Blue tooth speaker system • Garmin/Lowrance/Simrad GPS and sounder • Searching light • Yamaha or Mercury engine |
Specification
Model | Overall length | Overall width | Internal width | Tube diameter | Chamber | Net weight | Max power | Max people | Max loading(kg) |
cm | cm | cm | cm | room | kg | hp | P | kg | |
SP520 | 520cm/17’ | 246cm/8’ | 130cm/4’3’’ | 53cm/21’’ | 5 | 480 | 90 | 10 | 1035 |
SP560 | 560cm/18’4’’ | 246cm/8’ | 130cm/4’3’’ | 53cm/21’’ | 5 | 540 | 115 | 11 | 1130 |
SP600 | 600cm/19’9’’ | 256cm/8’5’’ | 140cm/4’7’’ | 53cm/21’’ | 6 | 600 | 150 | 12 | 1275 |
SP660 | 660cm/21’8’’ | 256cm/8’5’’ | 140cm/4’7’’ | 53cm/21’’ | 6 | 670 | 200 | 13 | 1405 |
SP700 | 700cm/23’ | 266cm/8’9’’ | 150cm/4’11’’ | 53cm/21’’ | 6 | 800 | 250 | 14 | 1500 |
SP760 | 760cm/25’ | 297cm/9’9’’ | 175cm/5’9’’ | 56cm/22’’ | 6 | 920 | 300 | 15 | 1700 |
SP860 | 860cm/28’3’’ | 307cm/10’ | 185cm/6’ | 56cm/22’’ | 6 | 1395 | 500 | 17 | 2106 |
SP960 | 960cm/31’6’’ | 312cm/10’3'' | 190cm/6’3'' | 56cm/22’’ | 8 | 1700 | 600 | 18 | 2500 |
| SP990 | 990cm/32'6'' | 312cm/10'3'' | 190cm/6'3'' | 56cm/22'' | 8 | 1800 | 600 | 18 | 2500 |
SP1050 | 1050cm/34’5’’ | 330cm/10’10’’ | 200cm/6’7’’ | 60cm/24’’ | 8 | 1900 | 600 | 18 | 2500 |
SP1150 | 1150cm/37’9’’ | 370cm/12’2’’ | 240cm/7’10’’ | 60cm/24’’ | 8 | 2200 | 800 | 20 | 3000 |

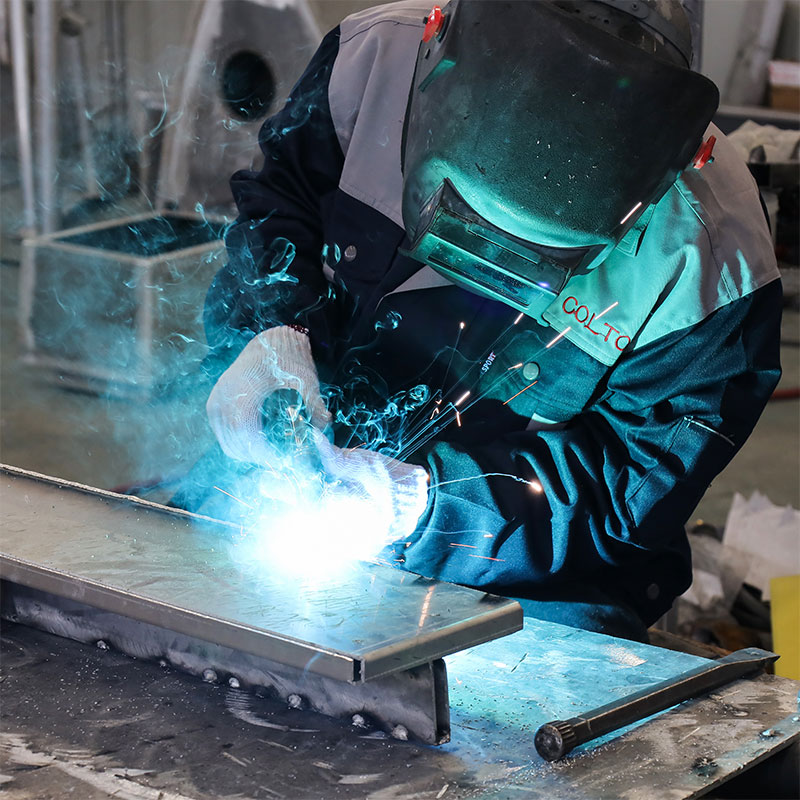

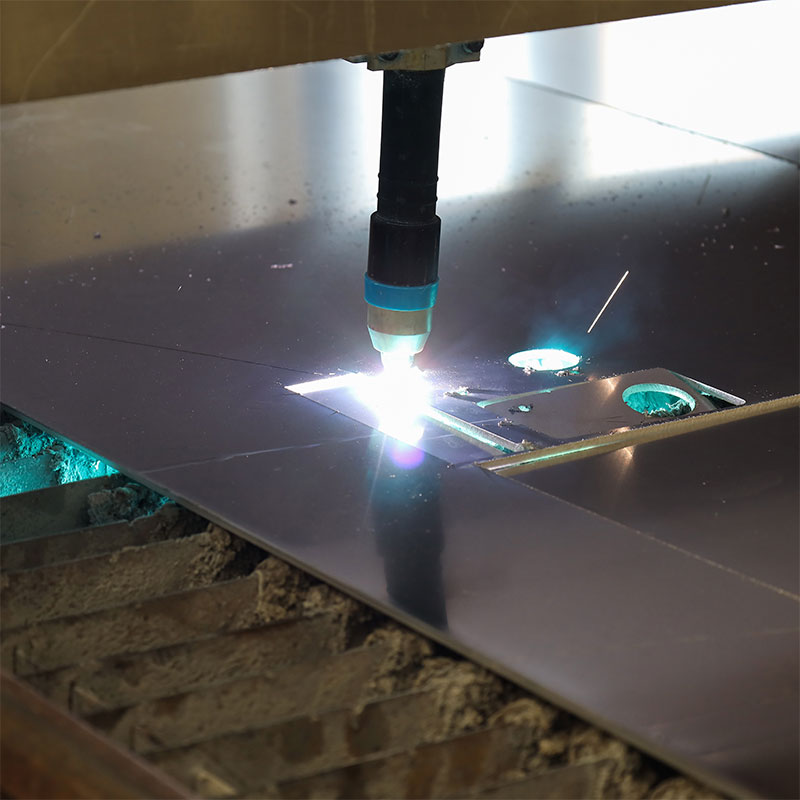

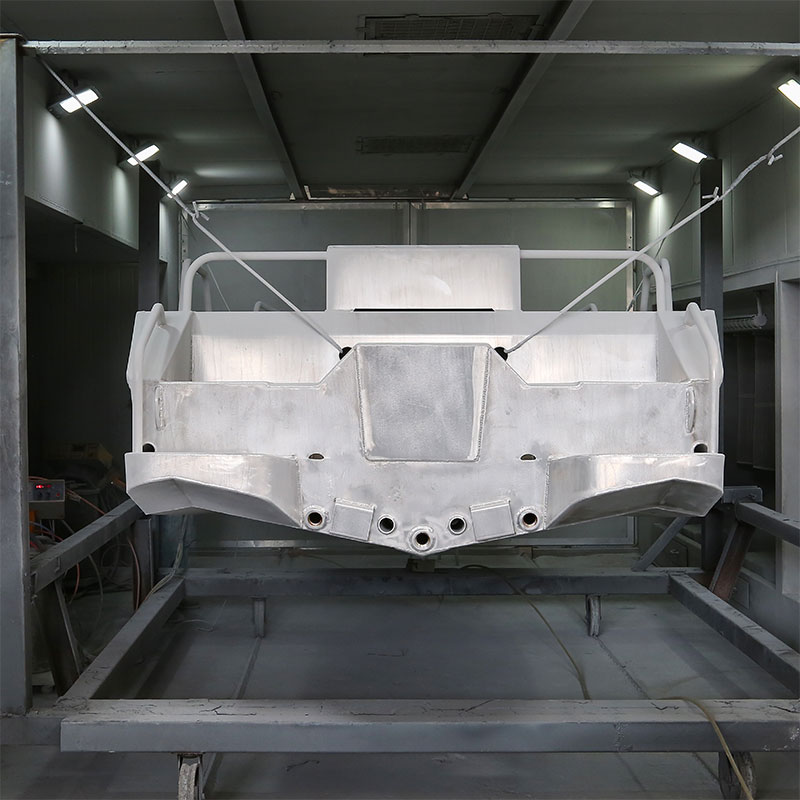

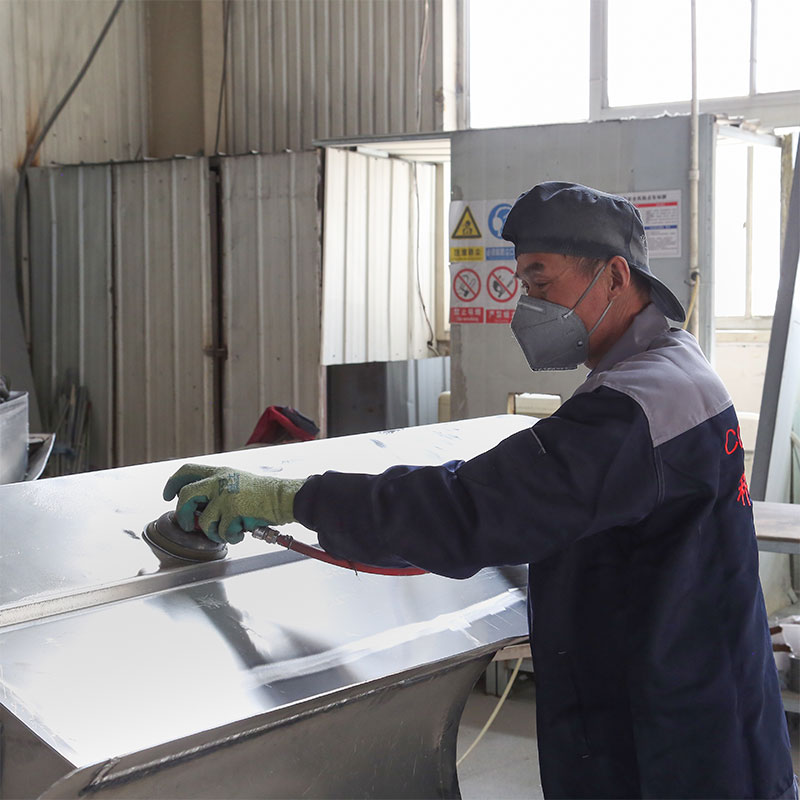

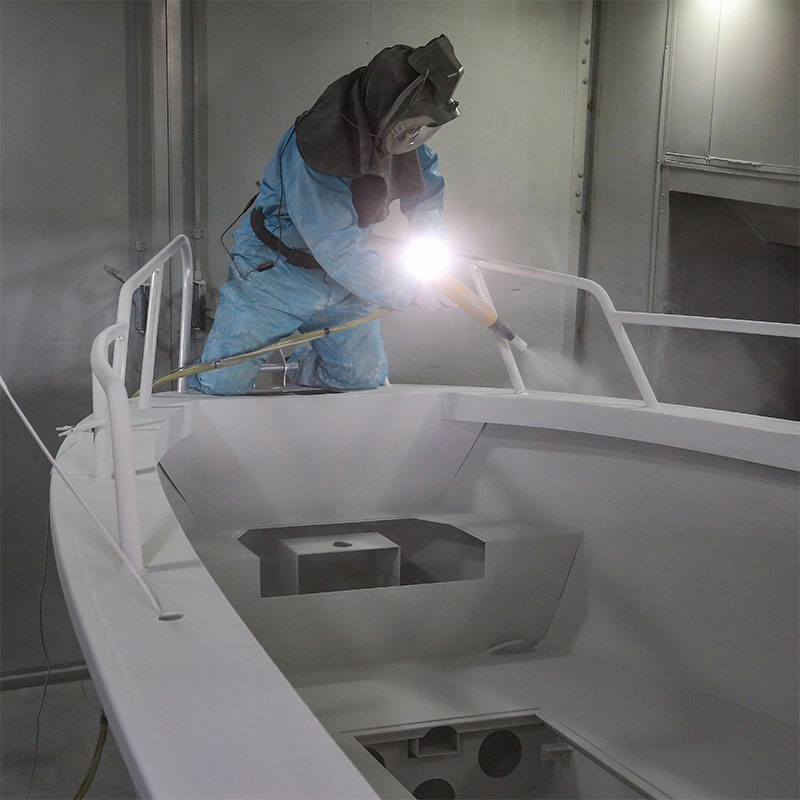

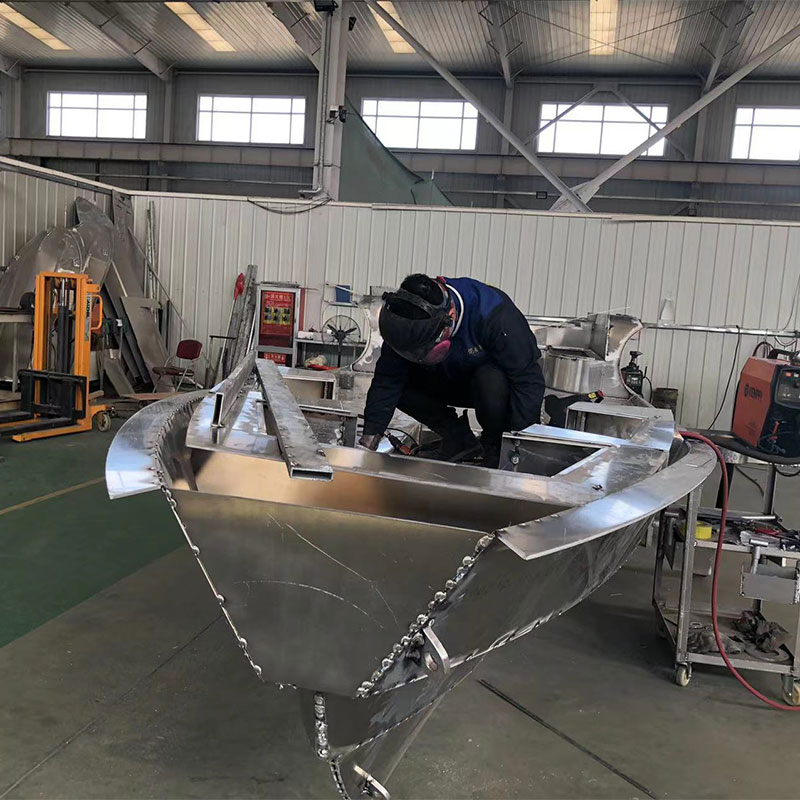

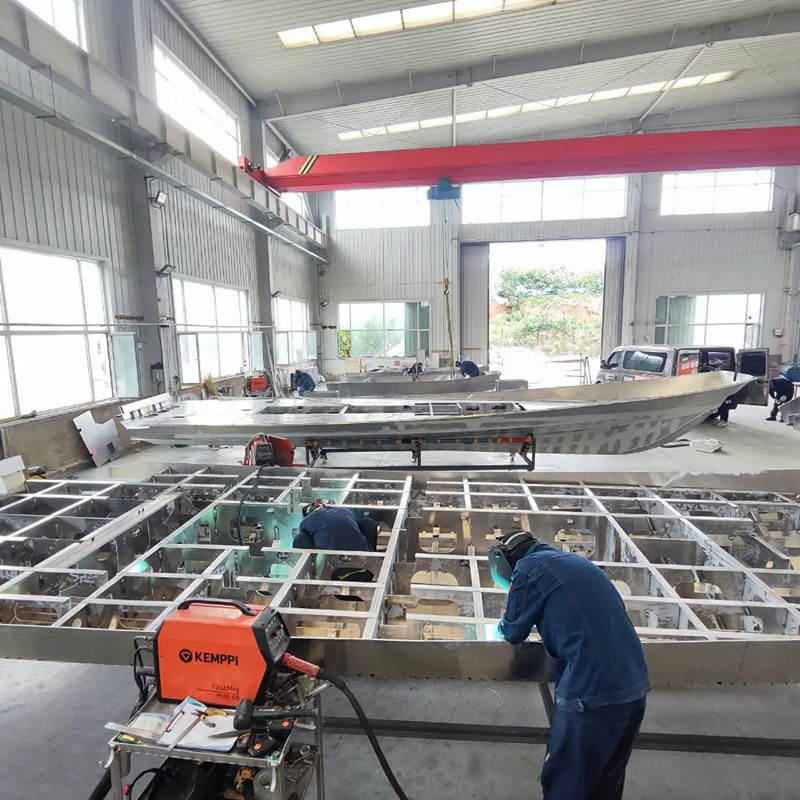

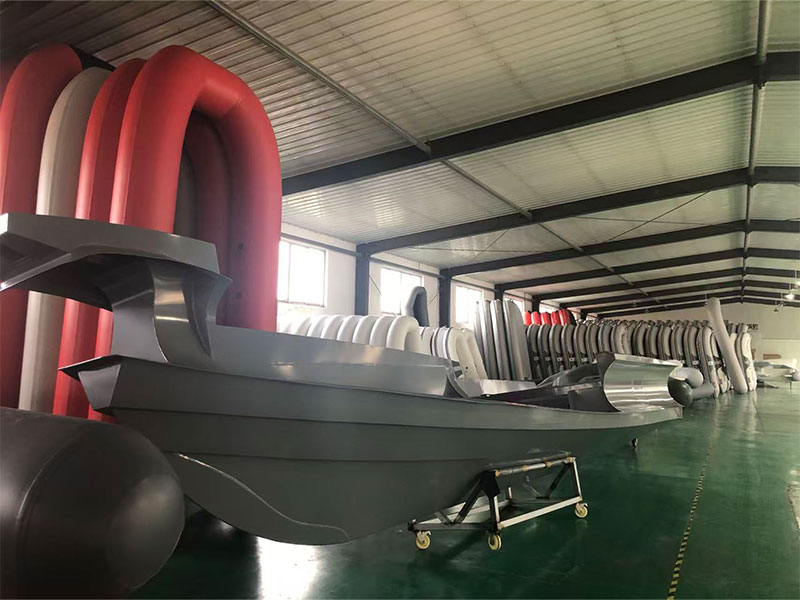

Process of aluminum hull

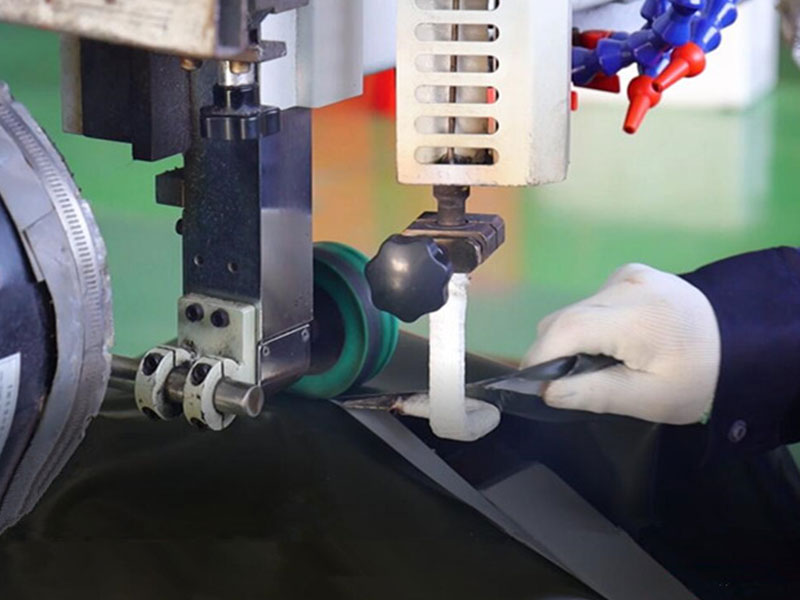

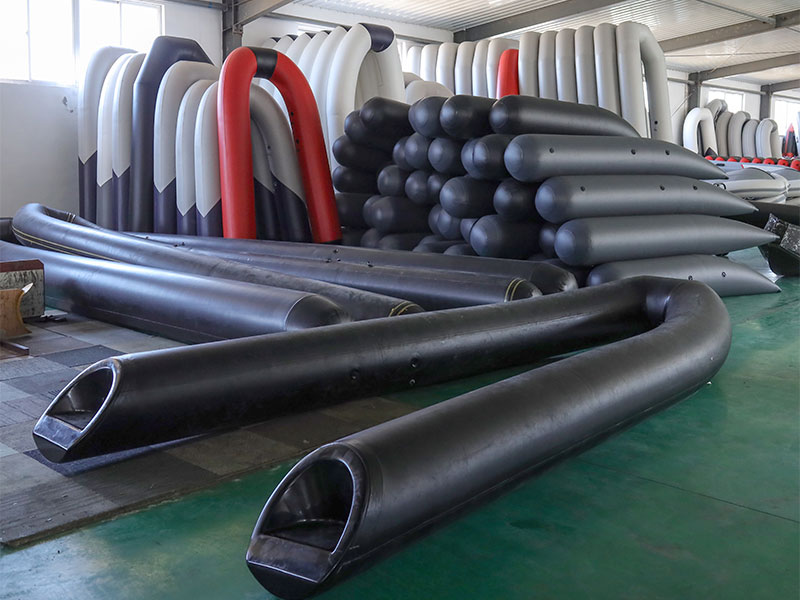

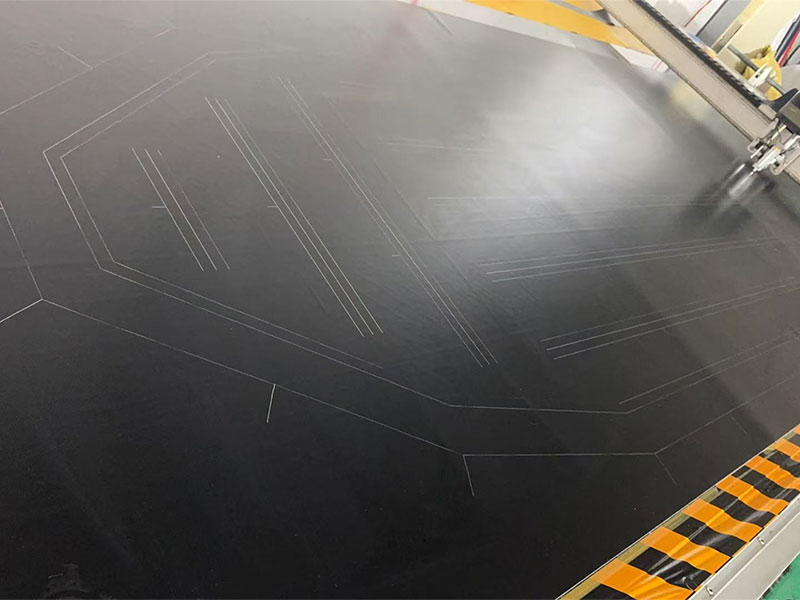

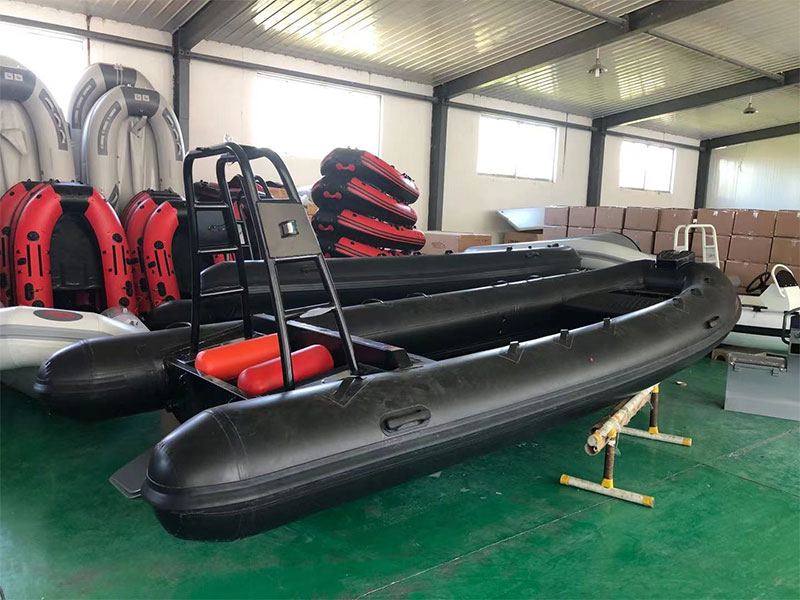

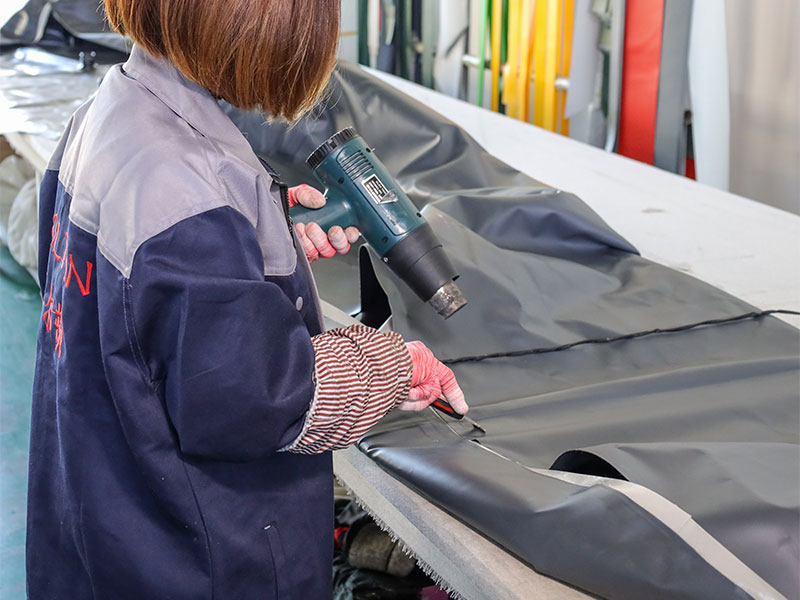

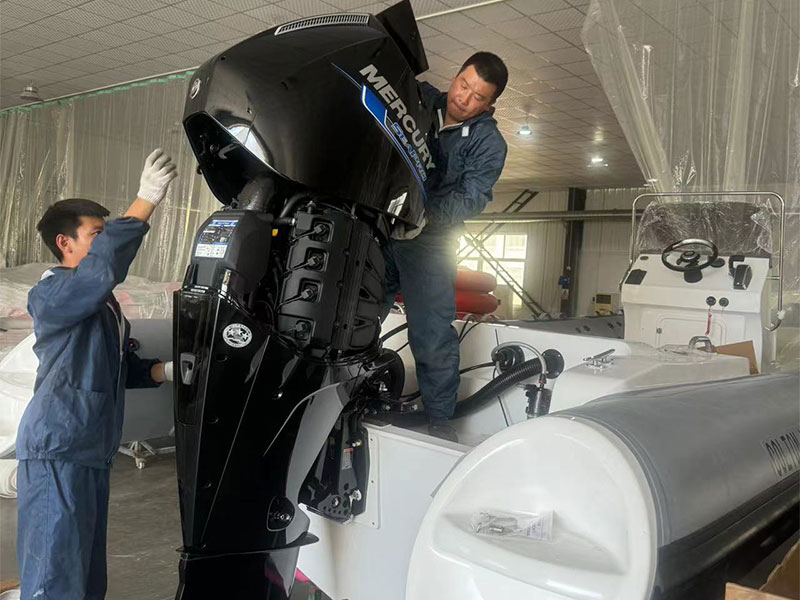

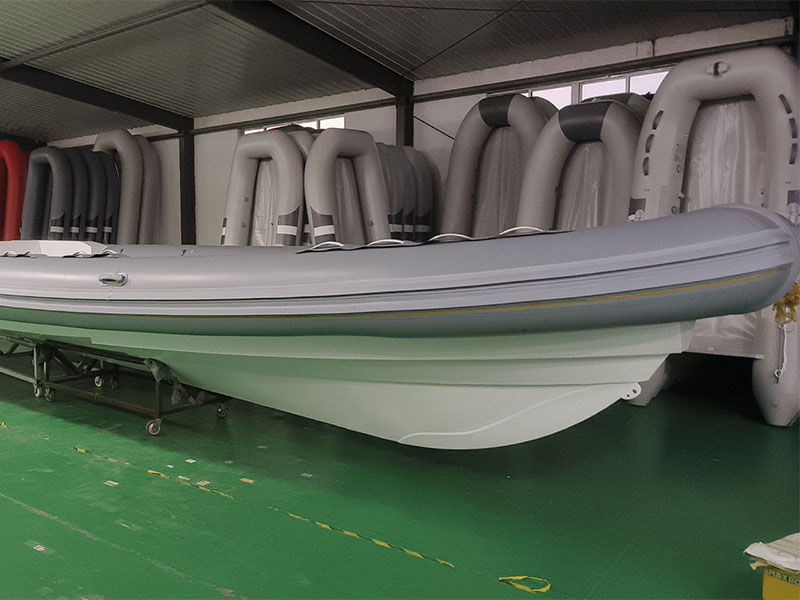

Process of inflatable tube

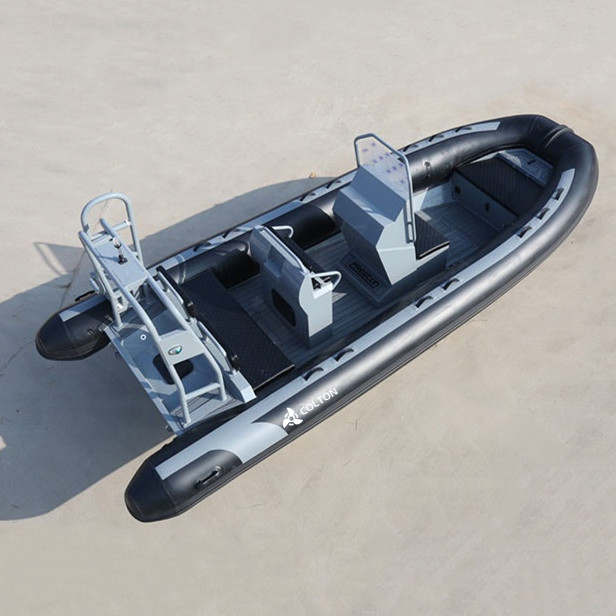

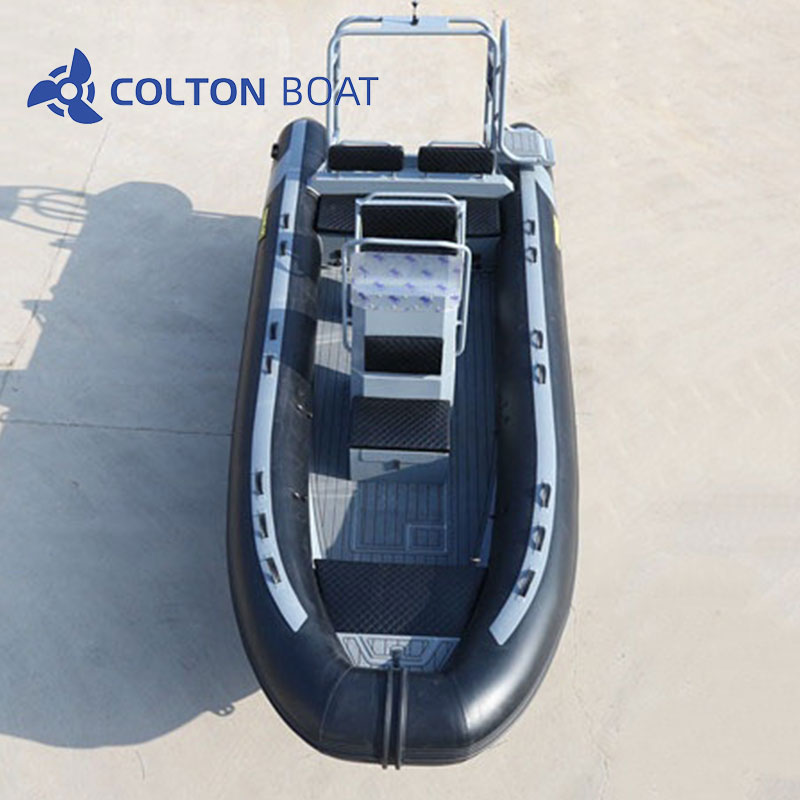

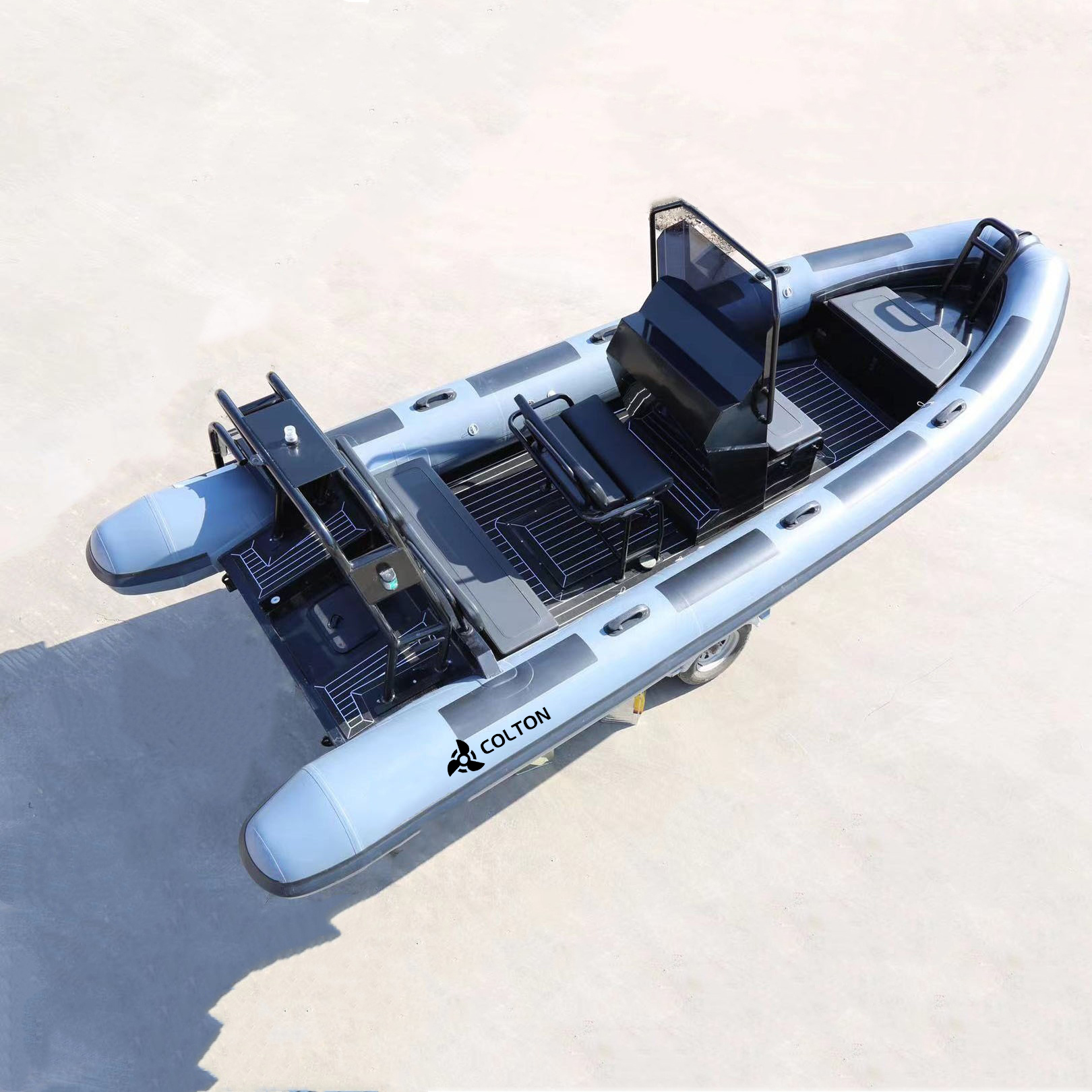

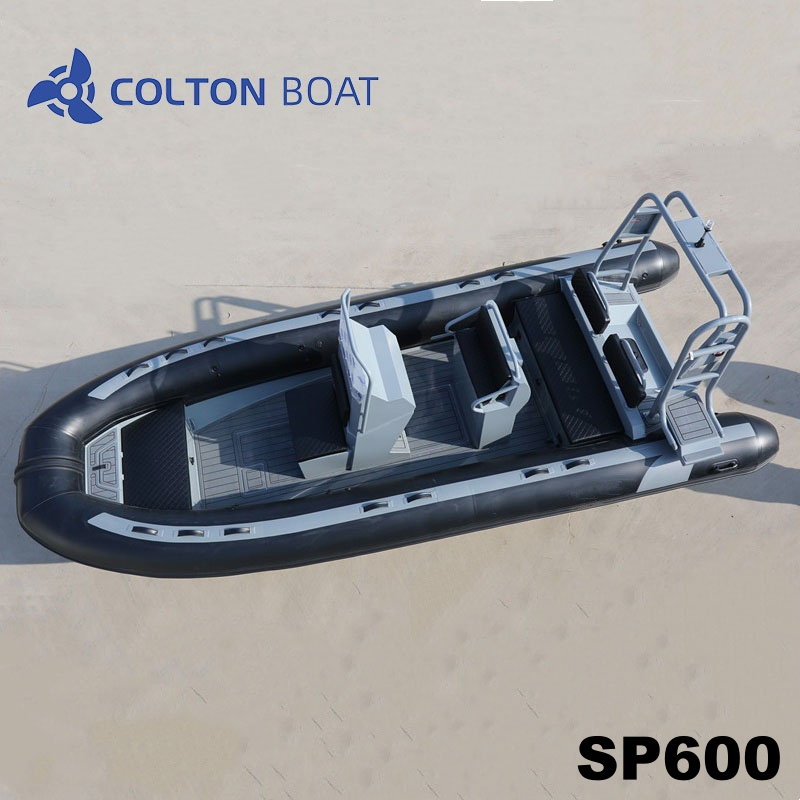

Pictures of SP600 with different color and design
Black orca hypalon tube and gray aluminum hull
Military gray orca hypalon tube and black aluminum hull

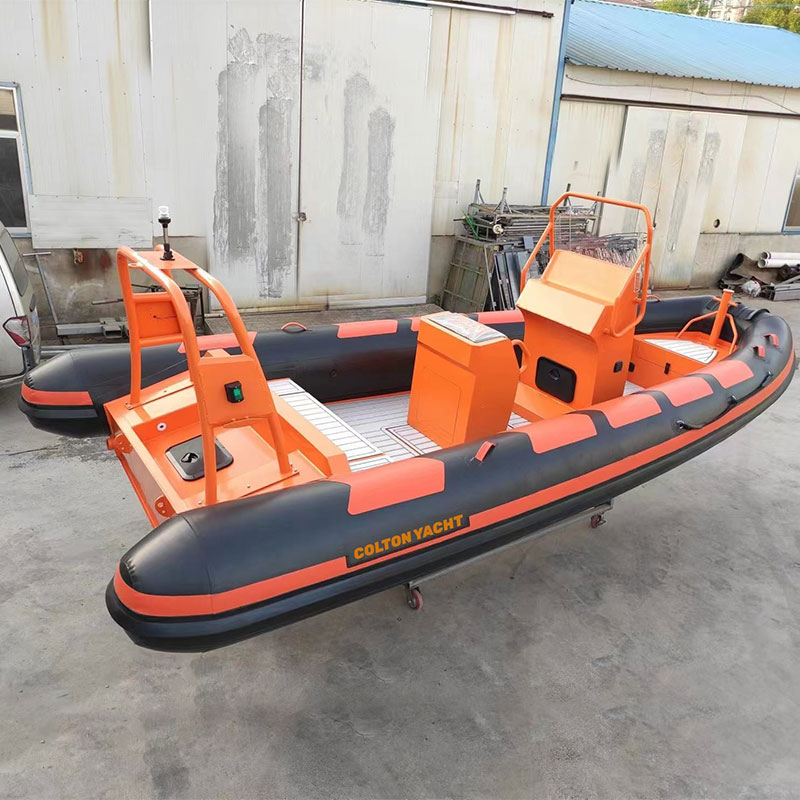

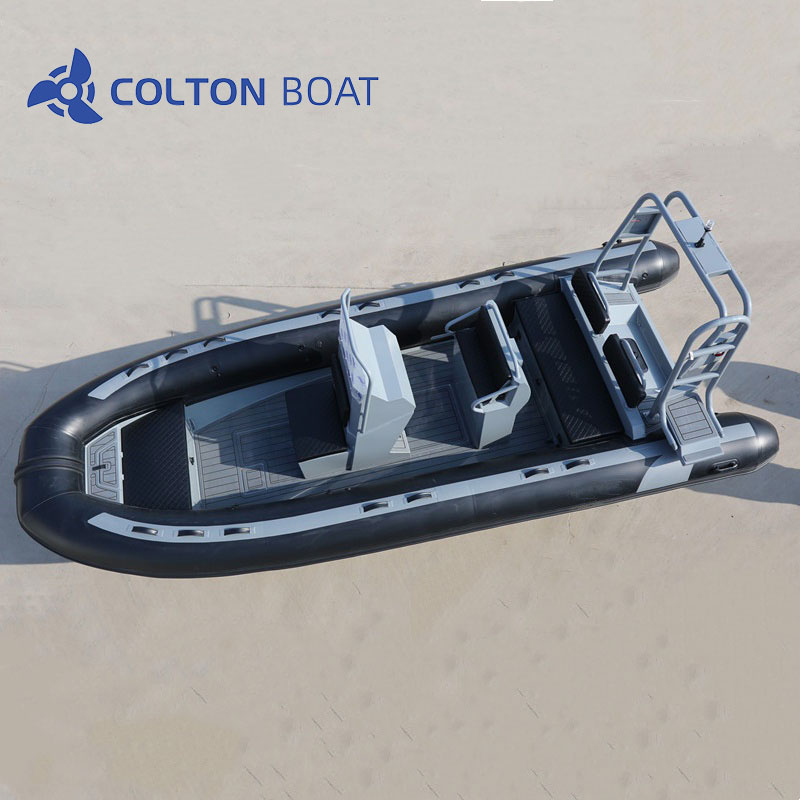

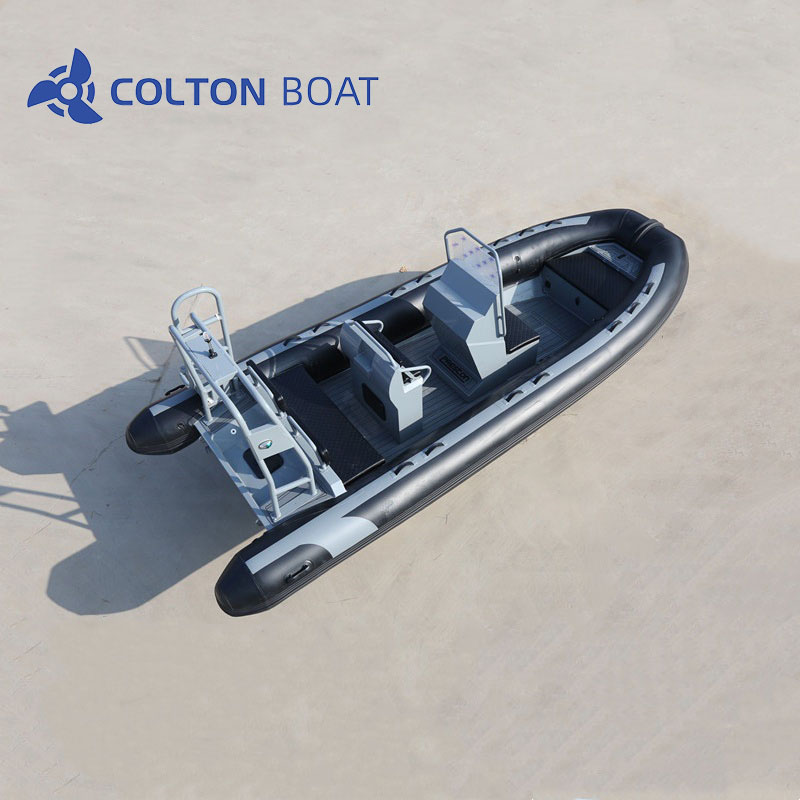

Black pvc tube and orange aluminum hull

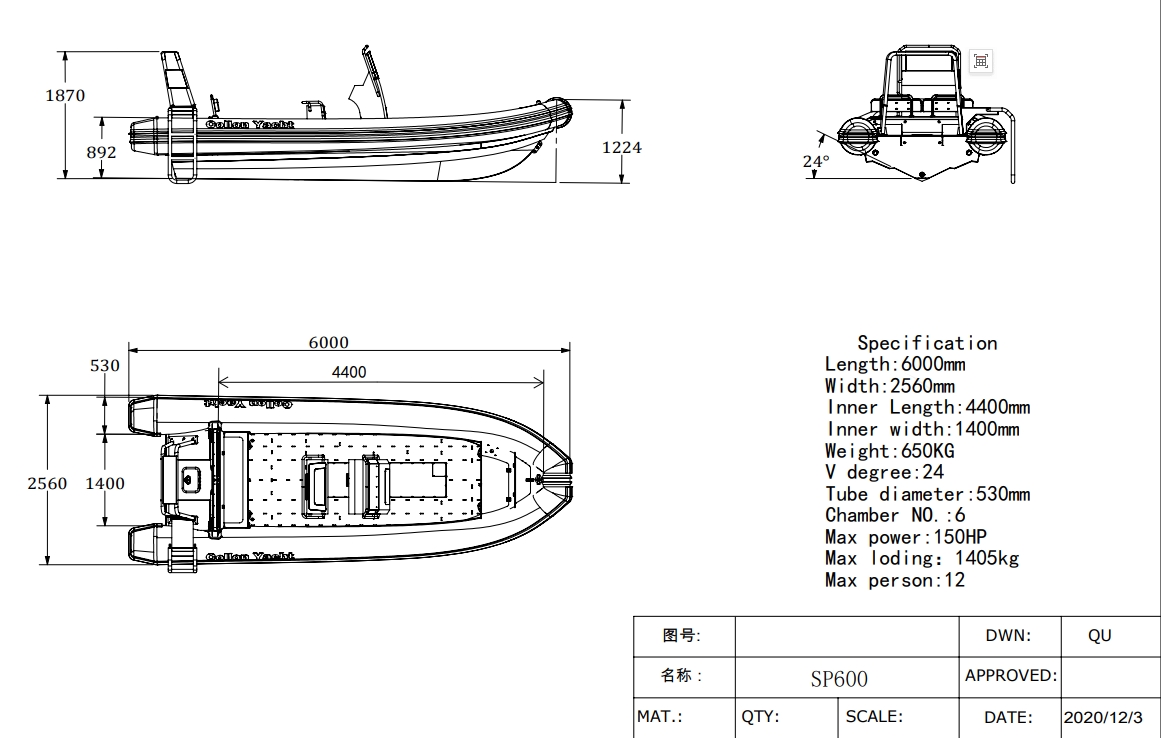

Sketch of aluminum RIB boat SP600

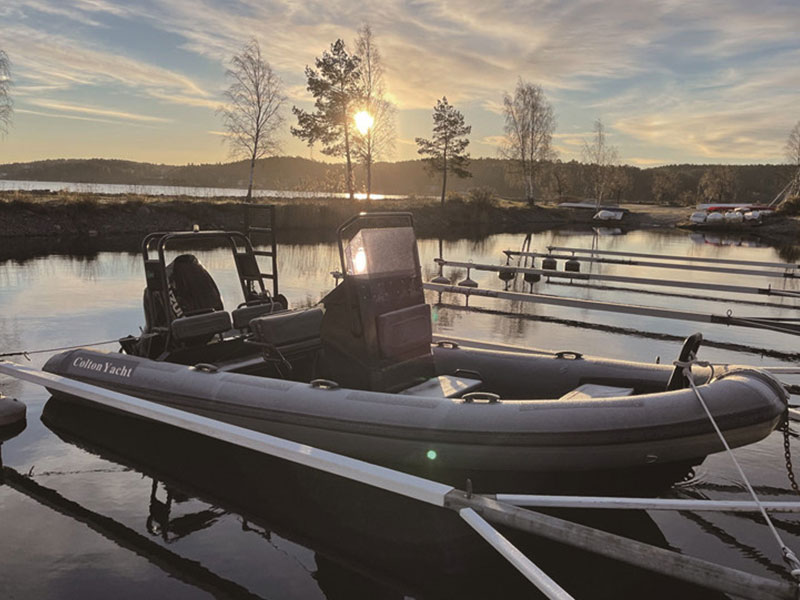

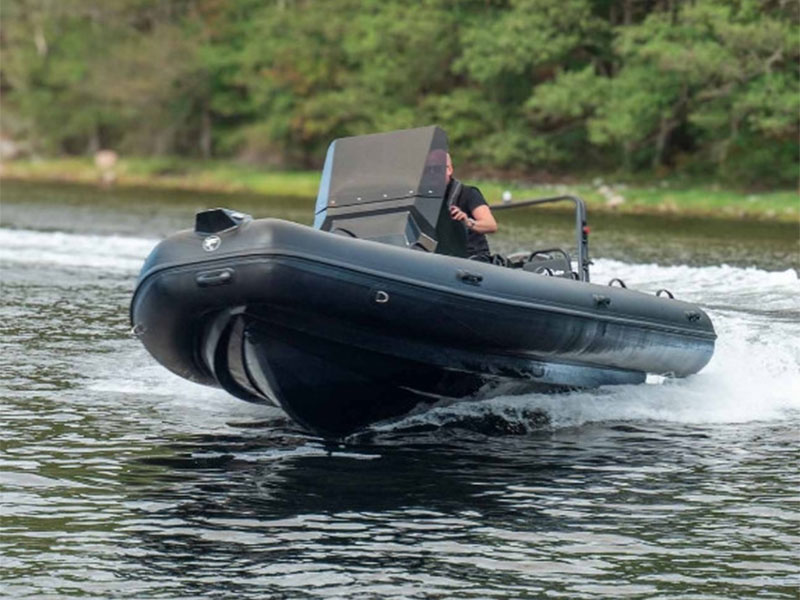

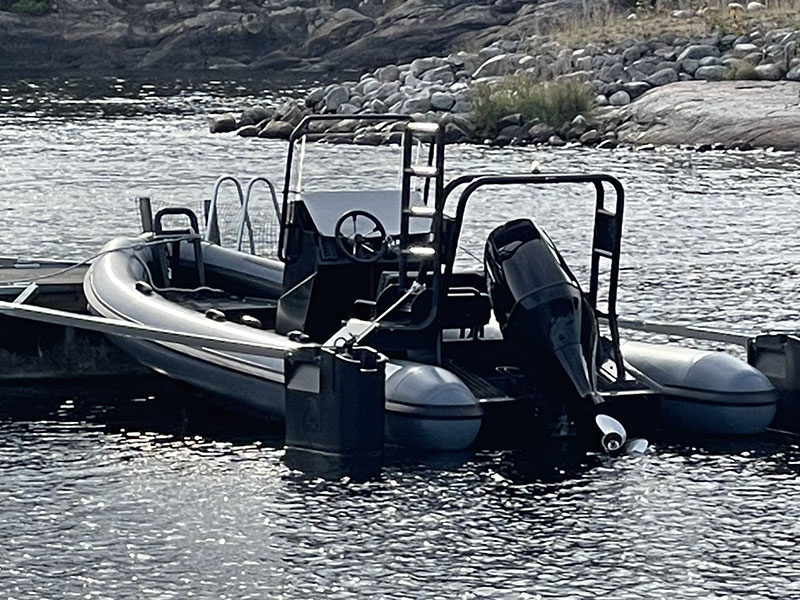

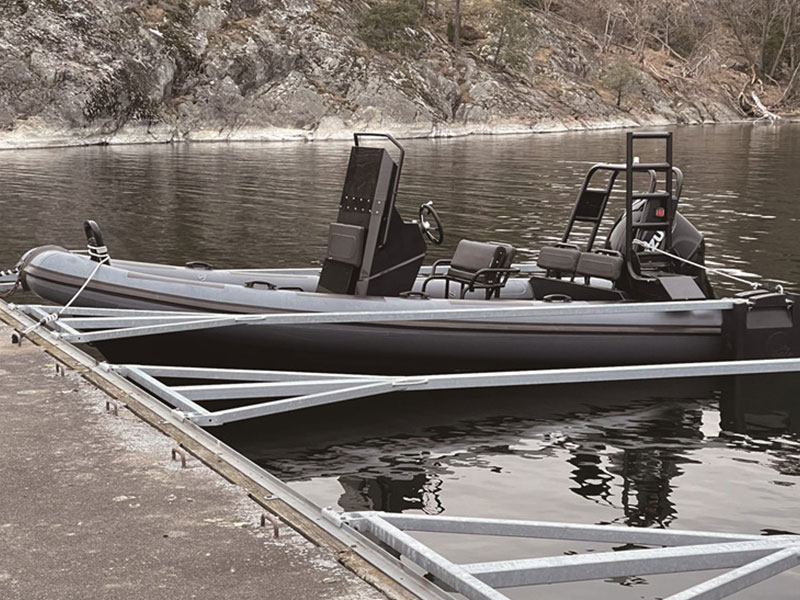

See Client Shots of the SP600

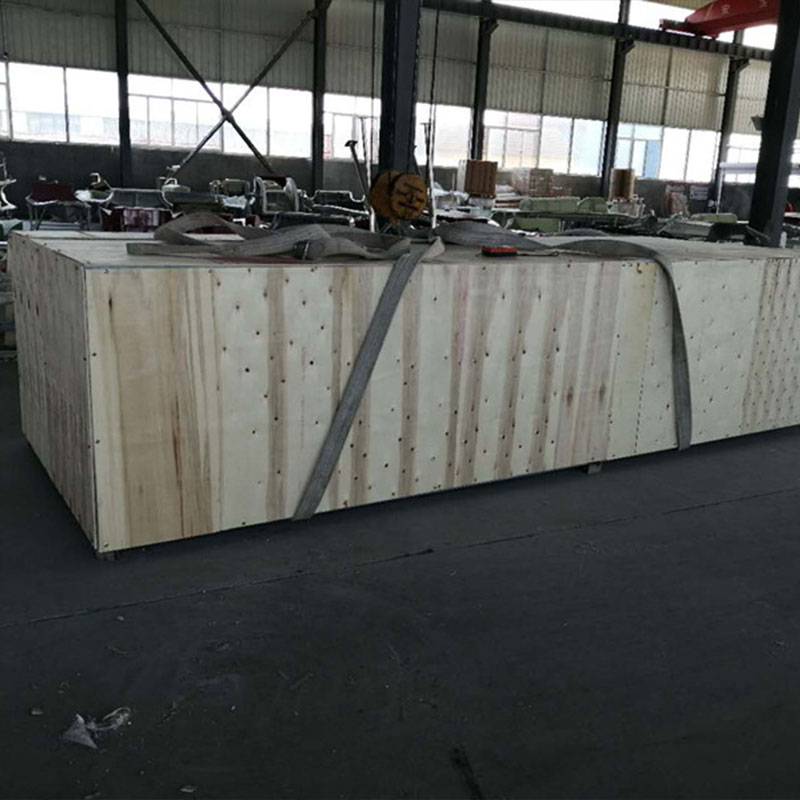

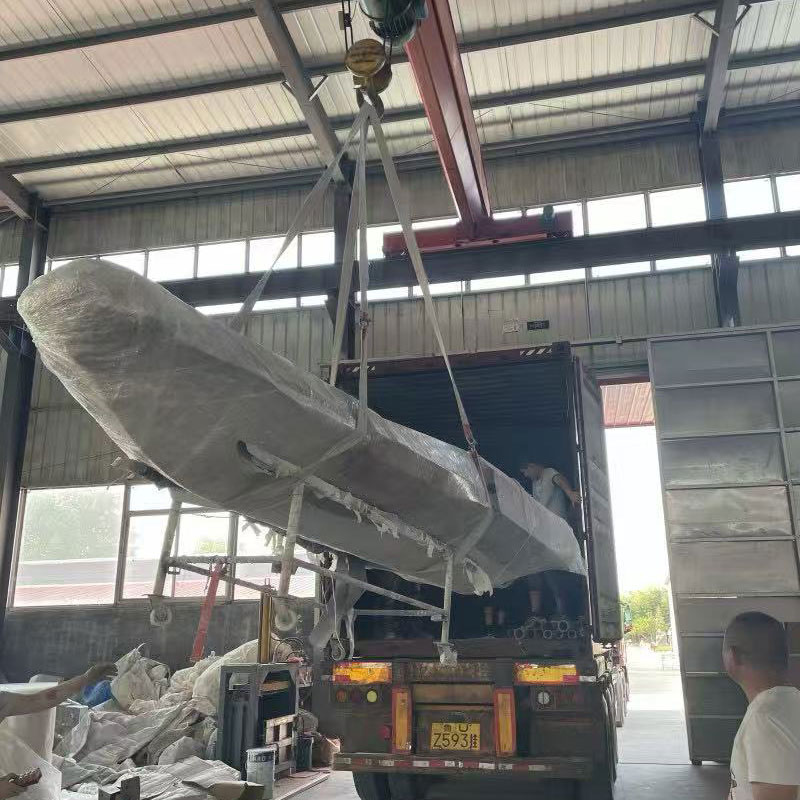

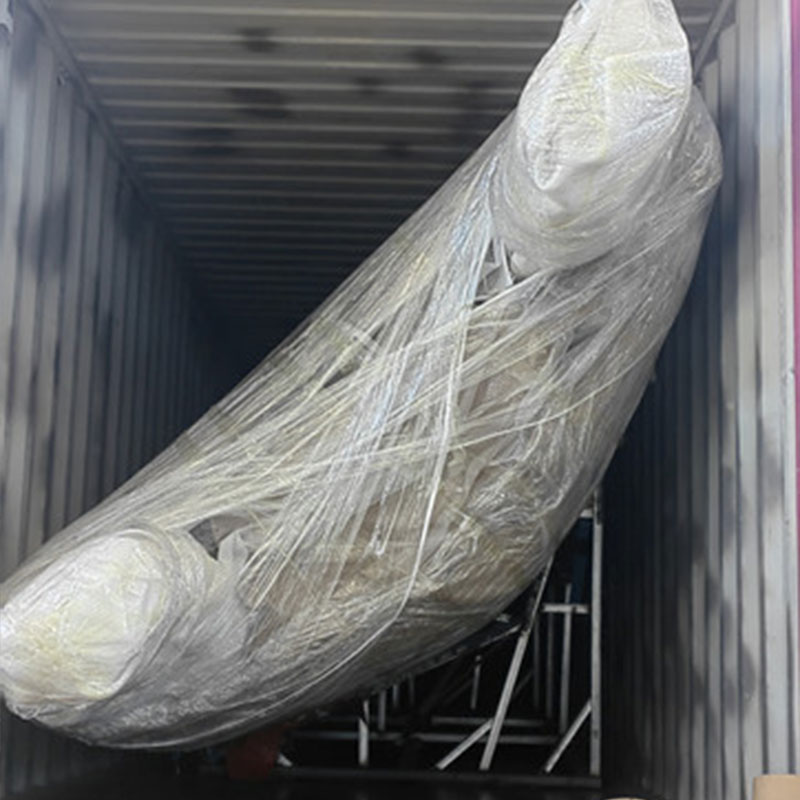

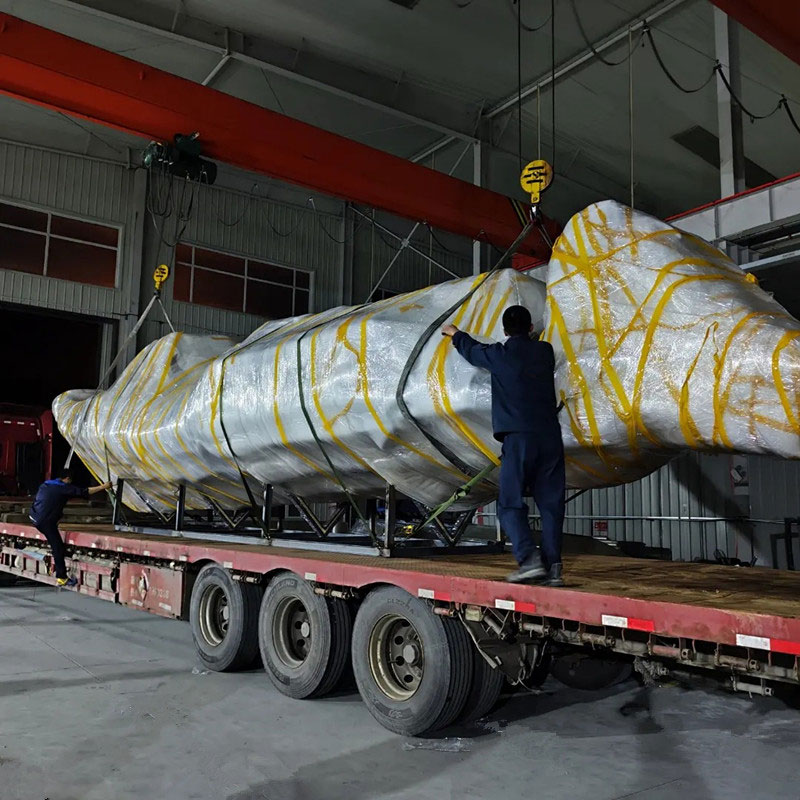

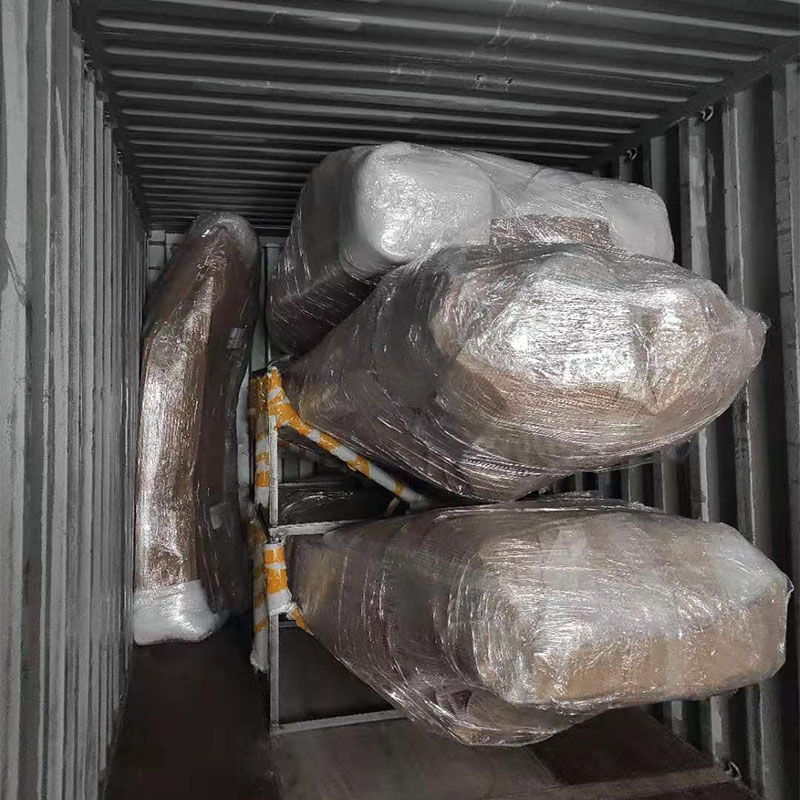

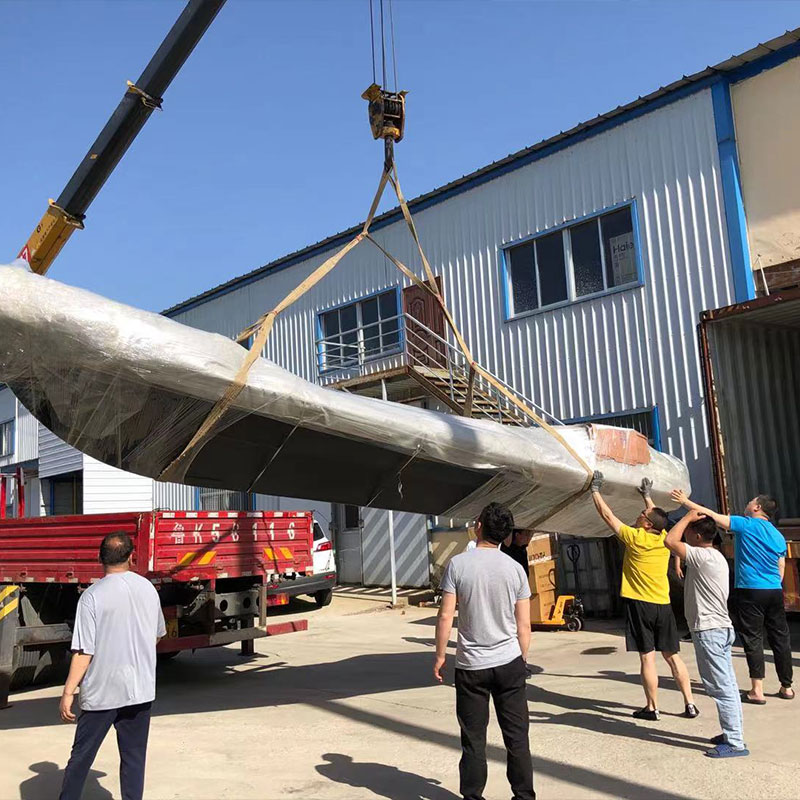

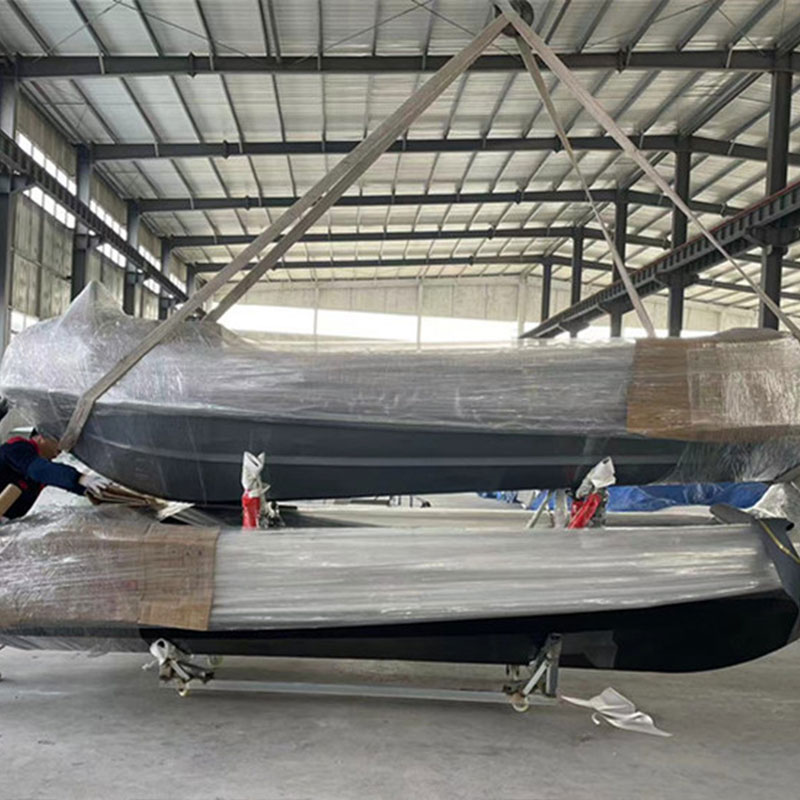

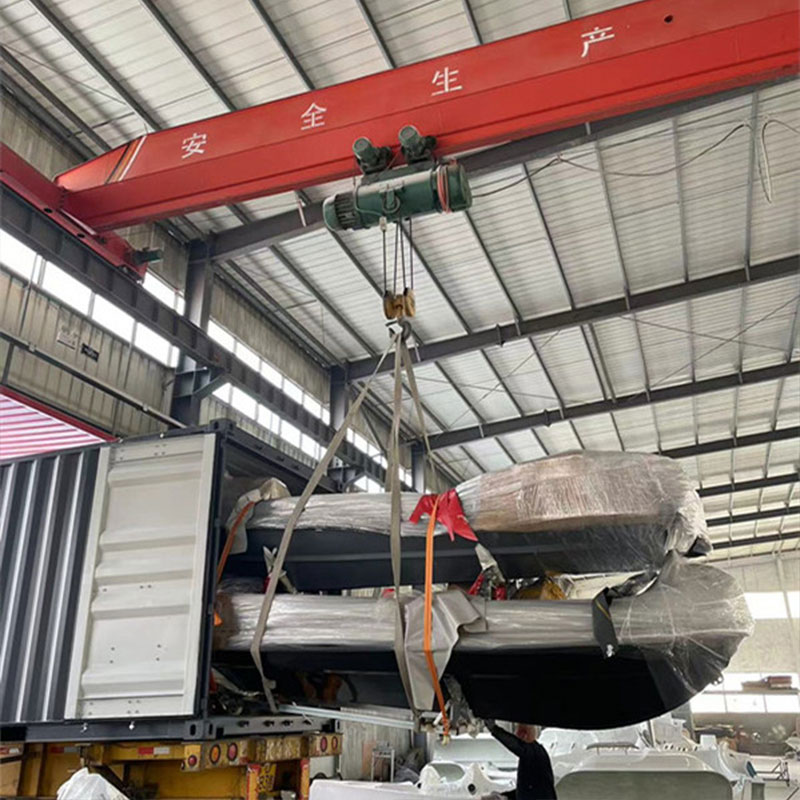

Packing and shipment
Fabric specification

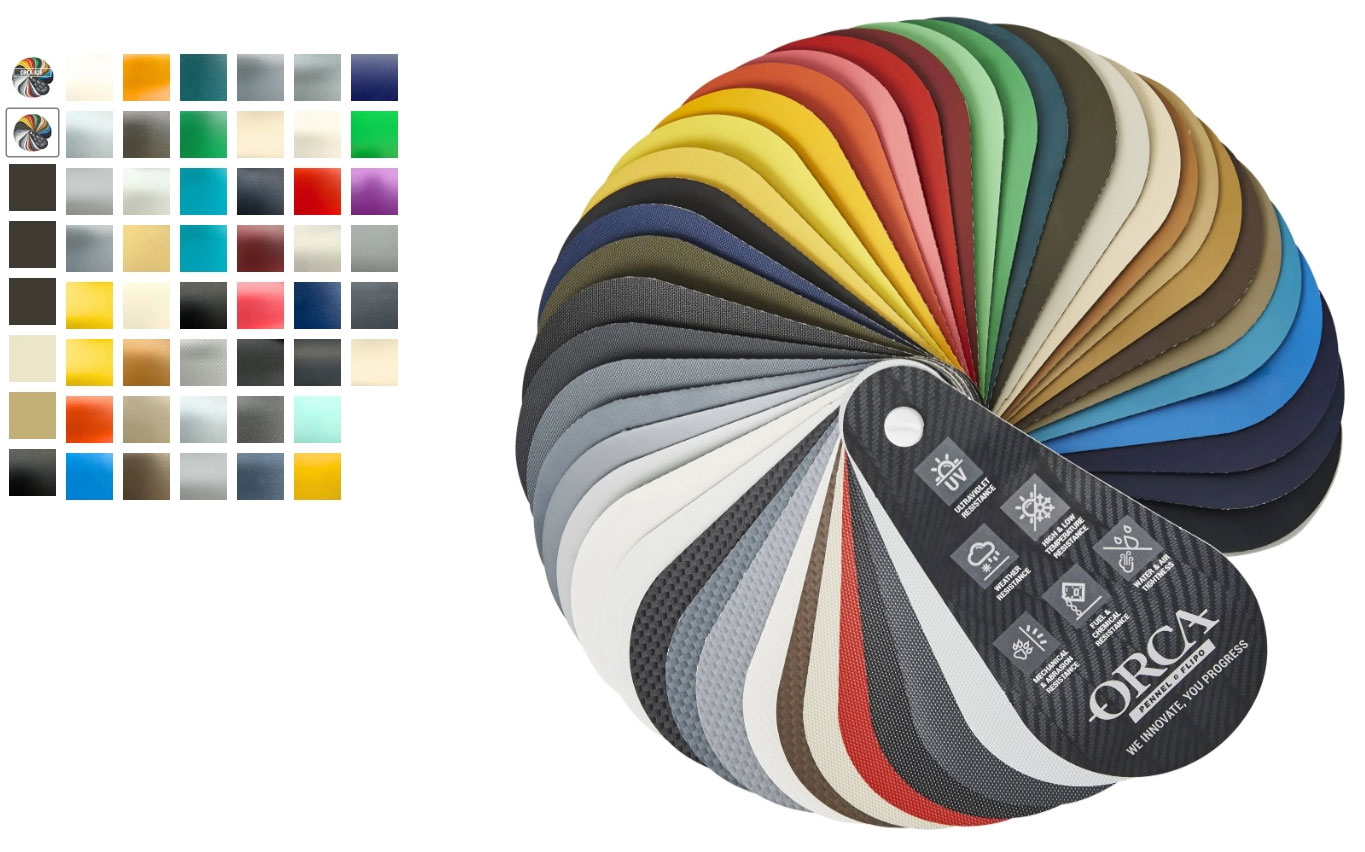

Technical specification of ORCA
• Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.
• Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)
• Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m², Fabric width 145cm / Sold by linear meter
Technical specification of PVC
Material properties | Value | Unit | Measuring Methods/Norm |
Total weight | 1450 | g/m² | EN ISO 2286-2 |
Tensile strength warp/weft | 3000 / 3000 | N/50 mm | EN ISO 1421/V1 |
Tear strength warp/weft | 250 / 250 | N | DIN 53363 |
Adhesion | 20 | N/cm | PA 09.03 (intern) |
Cold resistance | -30 | °C | EN 1876-1 |
High Temperature | +70 | °C | PA 07.04 (intern) |
Light fastness | >6 | Note, Value | EN ISO 105 B02 |
Crack resistance | 100000 x | DIN 53359 A | |
Material | PES | DIN EN ISO 2076 | |
Yarn count | 1100 | DIN EN ISO 2060 | |
Weave | L 1/1 | ISO 3572 |
Aluminum Rib boat hull power coating
AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.

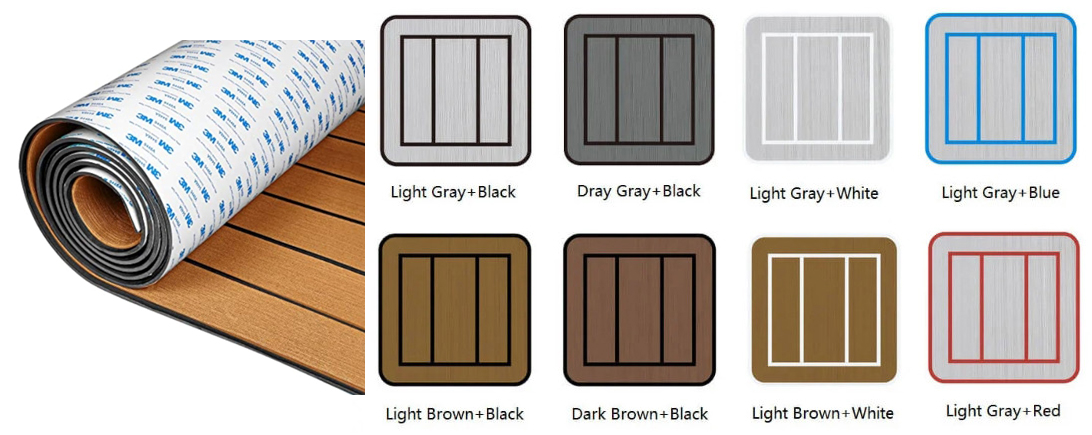

EVA pad
Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.

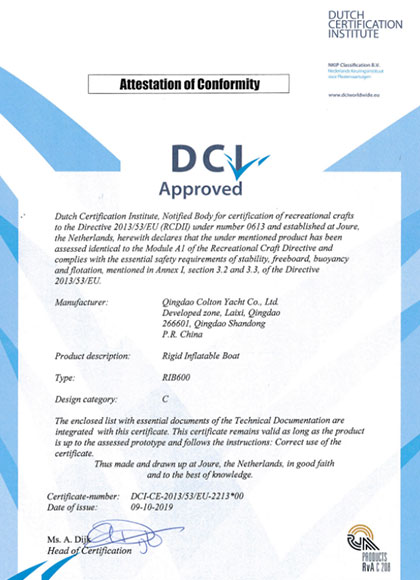

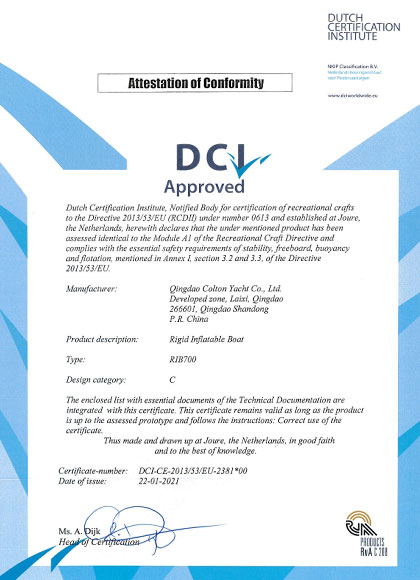

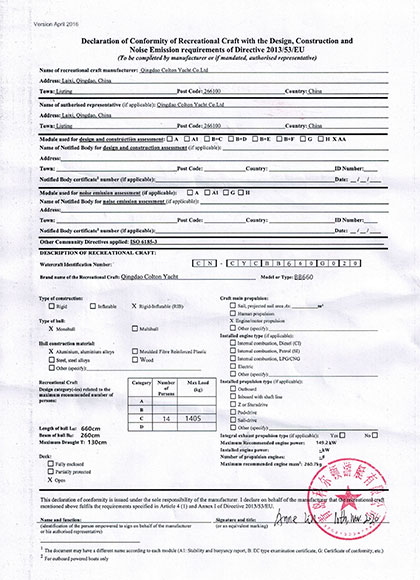

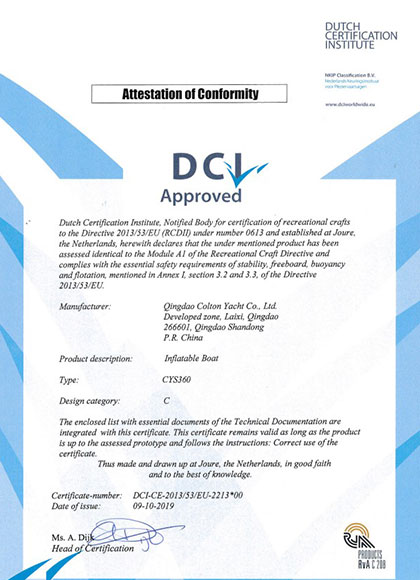

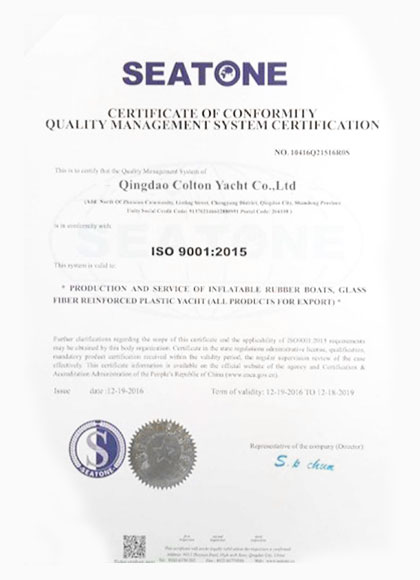

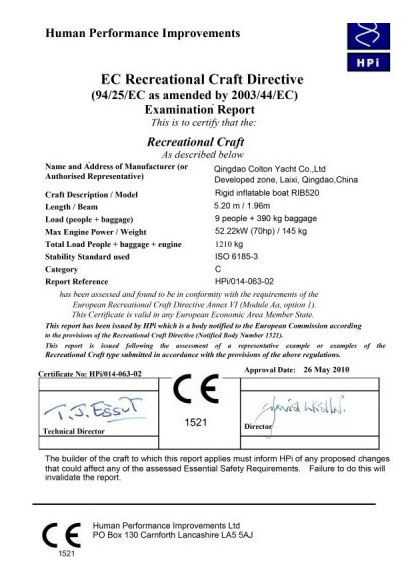

Certificate
