| Quantity: | |
|---|---|
| Standard features | Optional features |

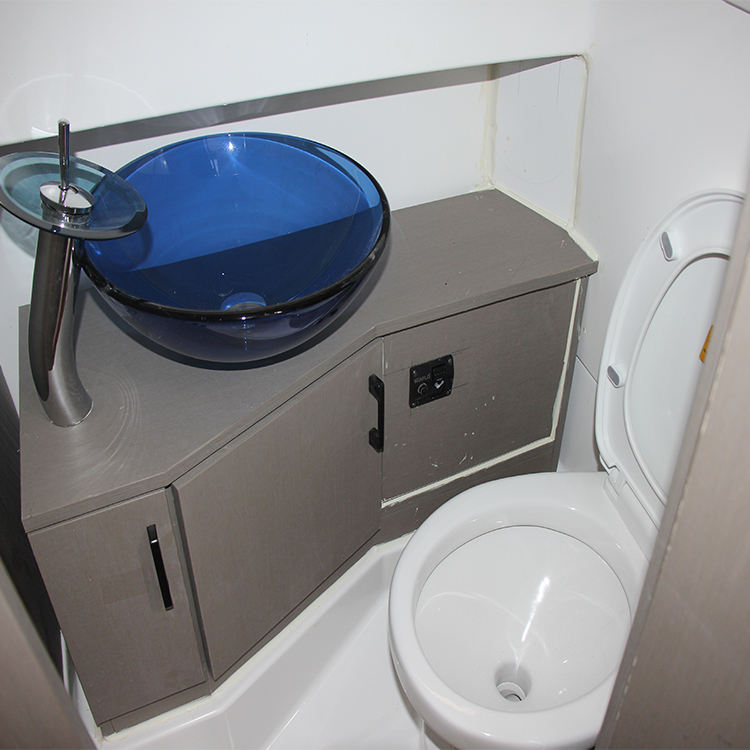

| • PVC, Taiwan hypalon or ORCA hypalon fabric for tube • Integrated transom supports • 200L*2 Integrated built in fuel tank • Lockable bow locker with seat cushion • Flush mount non-return valves • Self-draining valve • Safety valves • Lifting points and towing eyes • Rest room in console cabin • Middle console with front seat and windshield • Rear seat with seat cushions • Simple anchor holder • Fiberglass roll bar with navigation lights • Outside and inside reinforced motor pad • Bilge pump • Ski pole • One pair of aluminum oars • Foot pump • Repair kit • Swimming ladder | • Boat trailer • Hydraulic steering system • Toilet and wash basin • Electric pump • Sunshade • Boat cover • Table • Diamond stitch seat design • EVA pad or teak floor • Fiberglass tube end • GPS and VHF • Speakers • Deck light • Yamaha or Mercury engine |
Specification
Model | Overall length | Overall width | Tube diameter | Chamber | Max power | Capacity | Max loading | Weight |
cm | cm | cm | room | hp | person | kg | kg | |
RIB580 | 580cm/19’ | 238cm/7’10’’ | 58cm/22.8’’ | 5 | 115 | 11 | 1130 | 460 |
RIB600 | 600cm/19’9’’ | 250cm/8’3’’ | 58cm/22.8’’ | 6 | 150 | 12 | 1275 | 480 |
RIB680A | 680cm/22’4’’ | 252cm/8’4’’ | 52cm/20.5’’ | 7 | 200 | 12 | 1405 | 500 |
RIB680B | 680cm/22’4’’ | 252cm/8’4’’ | 52cm/20.5’’ | 7 | 200 | 12 | 1405 | 650 |
RIB700 | 700cm/23’ | 285cm/9’4’’ | 52cm/20.5’’ | 7 | 250 | 14 | 1500 | 700 |
RIB760 | 760cm/25’ | 270cm/8’10’’ | 52cm/20.5’’ | 7 | 300 | 15 | 1700 | 800 |
RIB800 | 800cm/26’3’’ | 285cm/9’4’’ | 55cm/21.7’’ | 7 | 400 | 16 | 1850 | 960 |
RIB860 | 860cm/28’ | 285cm/9’4’’ | 55cm/21.7’’ | 7 | 500 | 17 | 2106 | 1000 |
RIB960 | 960cm/31’6’’ | 320cm/10’6’’ | 60cm/23.6’’ | 7 | 500 | 18 | 2500 | 2200 |
RIB1200 | 1200cm/39’5’’ | 335cm/11’ | 60cm/23.6’’ | 7 | 800 | 25 | 3500 | 2500 |
Process of fiberglass hull
Process of inflatable tube

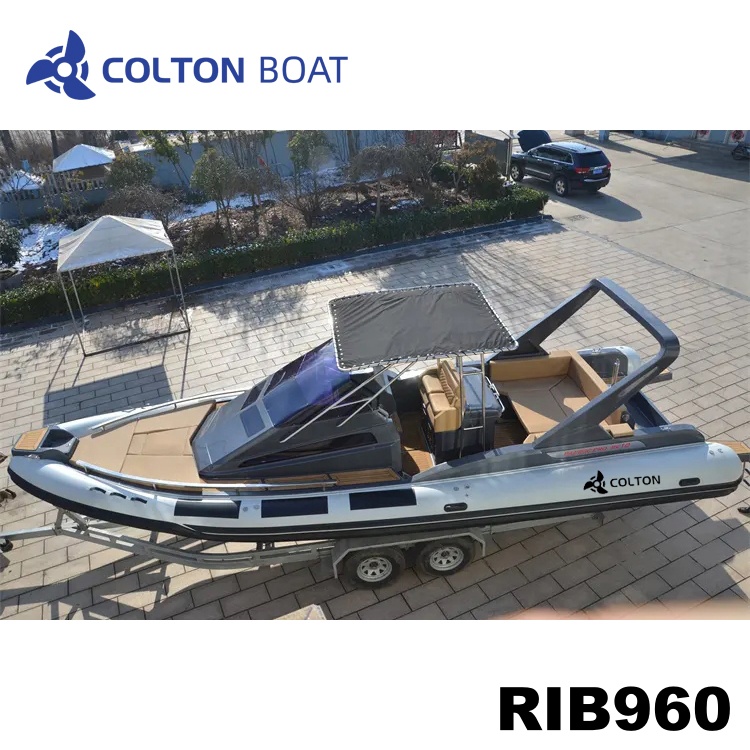

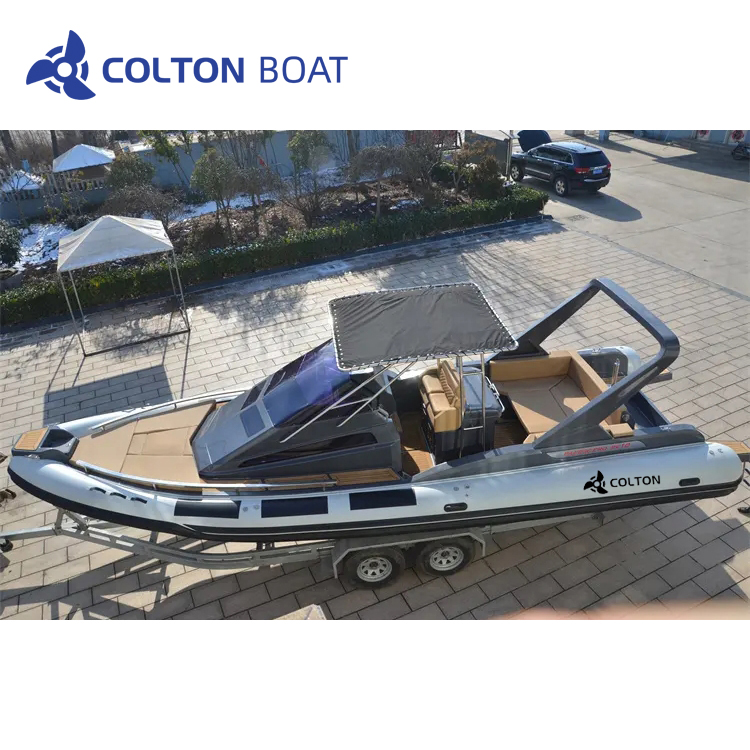

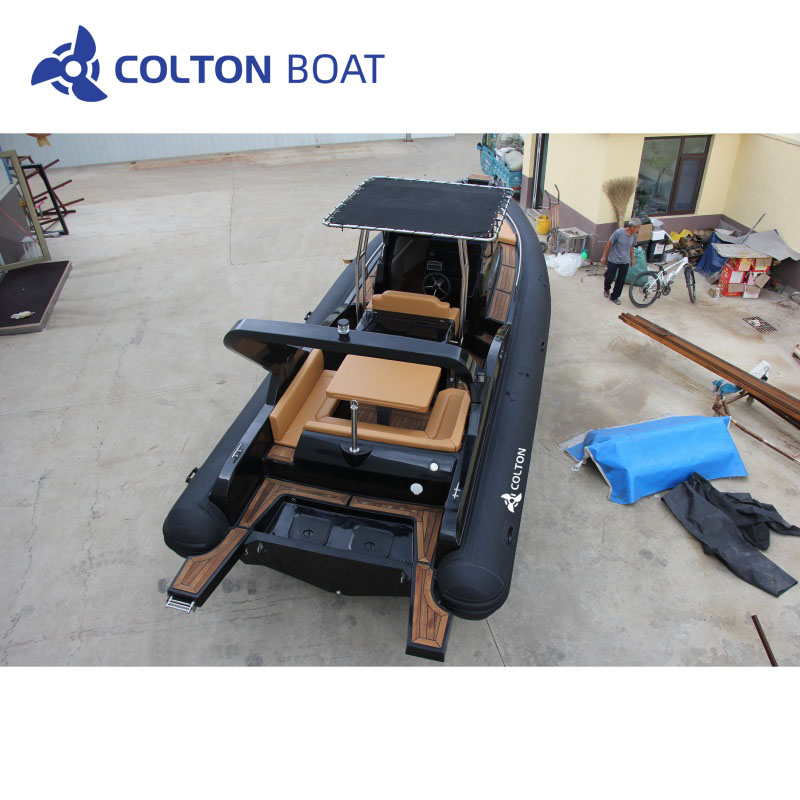

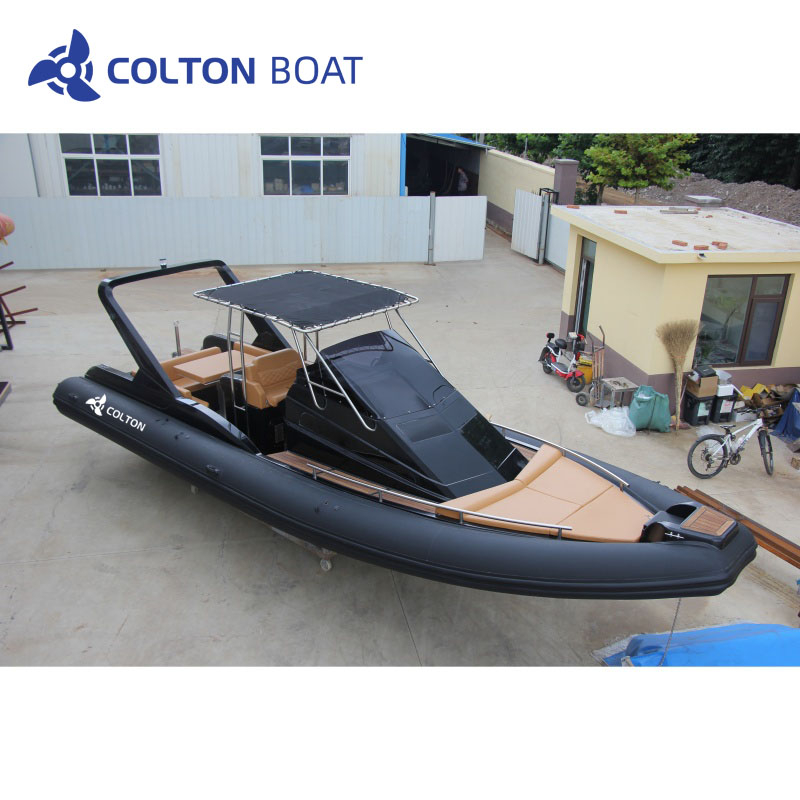

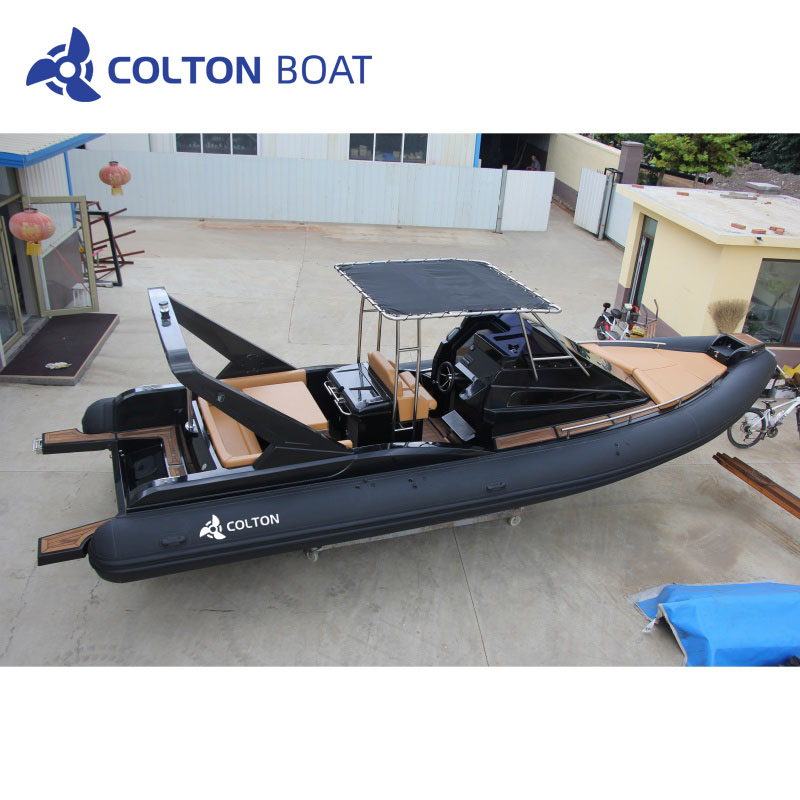

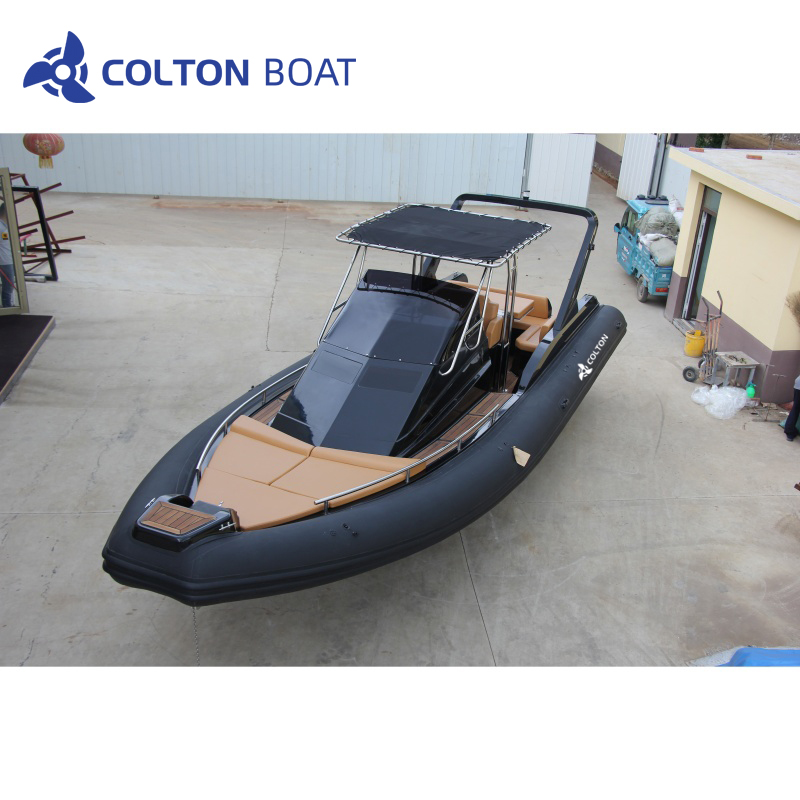

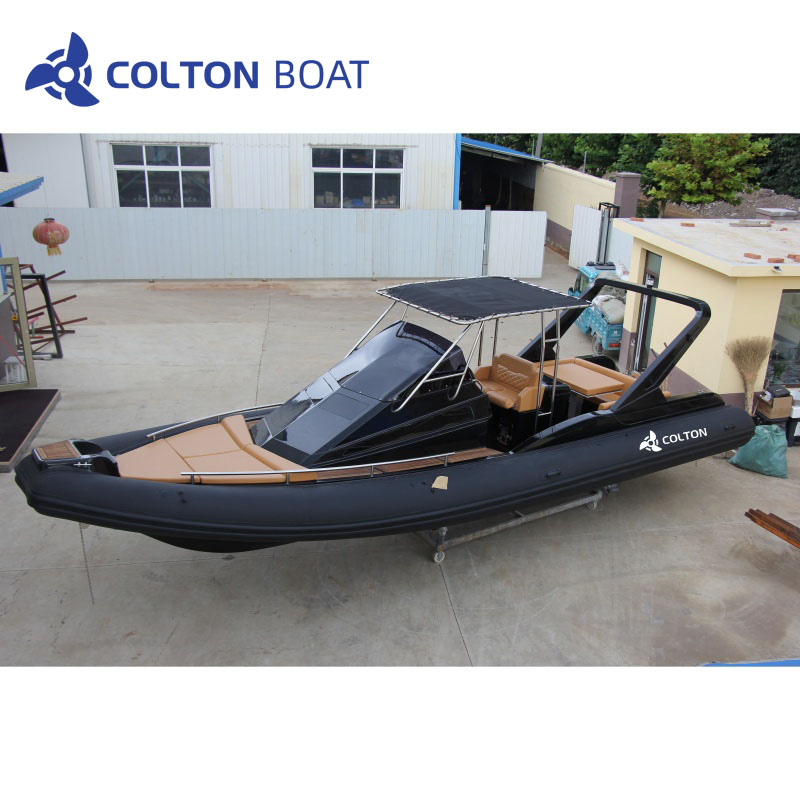

Detailed Pictures of Semi Rigid Boat RIB960

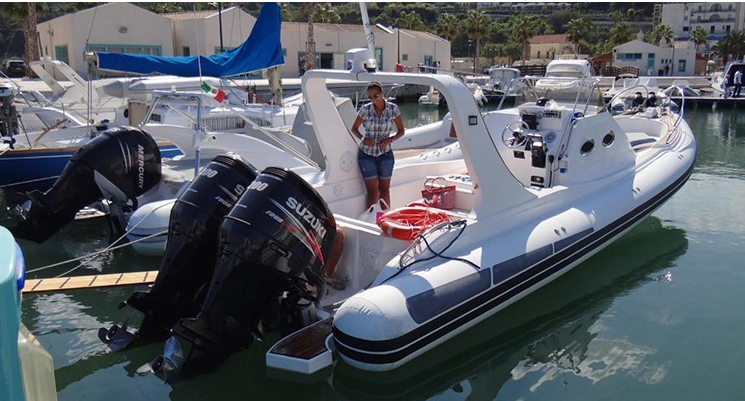

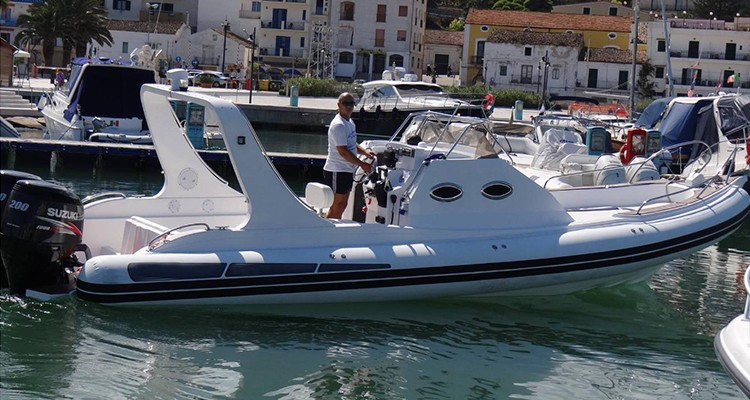

See Client Shots of the RIB960
Packing and shipment
Fabric specification
Technical specification of ORCA
• Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.
• Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)
• Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m²
• Fabric width 145cm / Sold by linear meter
Technical specification of PVC
Material properties | Value | Unit | Measuring Methods/Norm |
Total weight | 1450 | g/m² | EN ISO 2286-2 |
Tensile strength warp/weft | 3000 / 3000 | N/50 mm | EN ISO 1421/V1 |
Tear strength warp/weft | 250 / 250 | N | DIN 53363 |
Adhesion | 20 | N/cm | PA 09.03 (intern) |
Cold resistance | -30 | °C | EN 1876-1 |
High Temperature | +70 | °C | PA 07.04 (intern) |
Light fastness | >6 | Note, Value | EN ISO 105 B02 |
Crack resistance | 100000 x | DIN 53359 A | |
Material | PES | DIN EN ISO 2076 | |
Yarn count | 1100 | DIN EN ISO 2060 | |
Weave | L 1/1 | ISO 3572 |
Aluminum Rib boat hull power coating
AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.
EVA pad
Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.
Certificate
Welcome to Colton Boat: Where Your Vision Meets Our Precision.
About Colton boat
Qingdao Colton Yacht Co.,Ltd is a professional manufacturer specializing in GRP RIB, Aluminum RIB, Aluminum boat, and inflatable boat with superior quality and competitive prices. Strict design, skilled workmanship and thoughtful service are our main principles.
1. 15 years experience of producing and exporting boats
2. We have skilled technicians and workers to produce the products with best workmanship.
3. We have strict quality control system and inspection workers. For every boat, it would go through at least 3 period quality inspection.
4. 20 days leading time for sample;
5. Accept customized design and OEM order.
6. All kinds of accessories with superior quality to meet your any requirements.
7. Well-trained and experienced staffs to answer all your inquires in fluent English within 24 hours
8. We signed contract with a few shipping companies and express companies. So we could get discount shipping cost and help clients save cost.
9. CE and ISO Certification.
10. Our goal is to cultivate a powerful network of dealer partners. We achieve success by providing the top quality boats, technical support, and margins for our partners to thrive in their local markets.
