| Standard features | Optional features |
| • High tensile chromated&powder coated aluminum hull • PVC,Taiwan hypalon or Orca hypalon • Integrated transom supports • 100L Integrated built in fuel tank • Integrated inside keel • Lockable bow locker • Flush mount non-return valves • Self-draining valve • Safety valves • Lifting points and towing eyes • Anti-slip EVA pad • Full length keel guard • Anchor holder or bollard • Aluminum roll bar with navigation lights • Bilge pump • One pair of aluminum oars • Foot pump • Repair kit | • Hydraulic steering system & steering wheel • Rear platform with ladder • Front sundeck • Boat trailer • T-Top • Boat cover • Shower system • Live fish well • Electric inflating pump • Middle console • Middle seat • Yamaha or Mercury engine |
Specification
Overall length | Overall width | Internal width | Tube diameter | Chamber | Net weight | Max power | Max people | Max loading | |
cm | cm | cm | cm | room | kg | hp | P | kg | |
PA400 | 400/13’2’’ | 207/6’10’’ | 105/3’5’’ | 48/19’’ | 4 | 120 | 50 | 7 | 705 |
PA420 | 420/13’10’’ | 207/6’10’’ | 105/3’5’’ | 48/19’’ | 4 | 140 | 60 | 8 | 780 |
PA470 | 470/15’5’’ | 207/6’10’’ | 105/3’5’’ | 48/19’’ | 4 | 180 | 70 | 9 | 905 |
PA520 | 520/17’ | 234/7’8’’ | 118/3’10’’ | 53/21’’ | 5 | 420 | 90 | 10 | 1035 |
PA560 | 560/18’4’’ | 246/8’ | 130/4’3’’ | 53/21’’ | 5 | 480 | 115 | 11 | 1130 |
PA600 | 600/19’9’’ | 256/8’5’’ | 140/4’7’’ | 53/21’’ | 6 | 540 | 150 | 12 | 1275 |
PA620 | 620/20’4’’ | 256/8’5’’ | 140/4’7’’ | 53/21’’ | 6 | 580 | 200 | 13 | 1405 |
PA680 | 680/22’4’’ | 256/8’5’’ | 140/4’7’’ | 53/21’’ | 6 | 600 | 200 | 14 | 1480 |
Process of aluminum hull
Process of inflatable tube

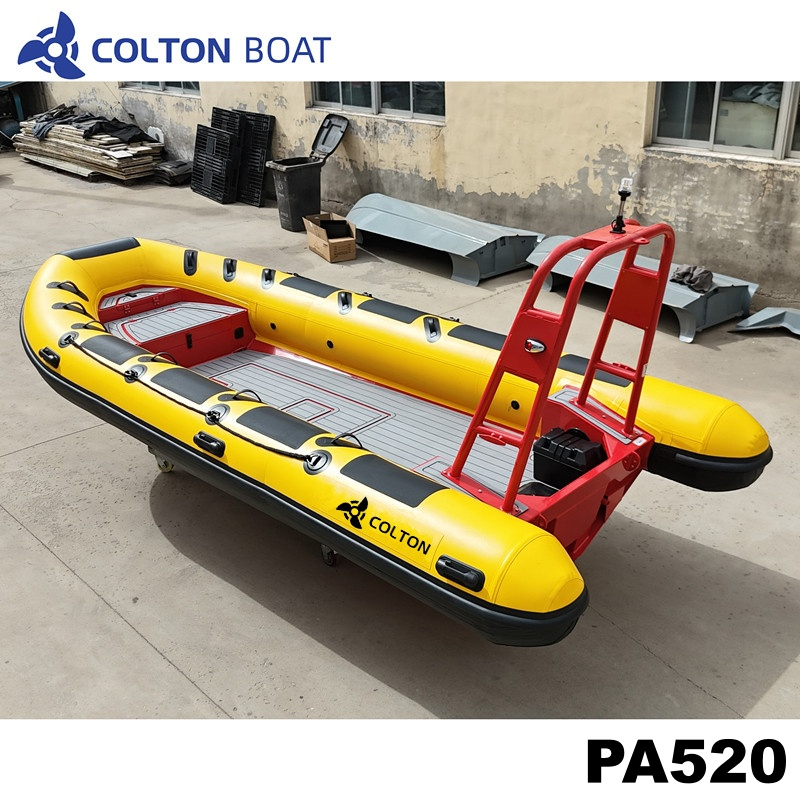

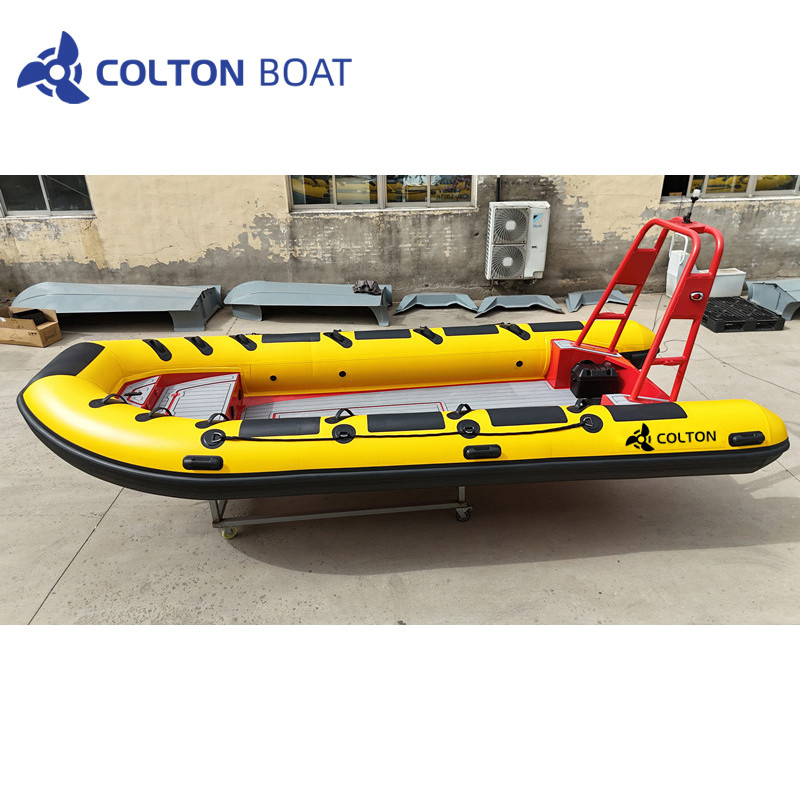

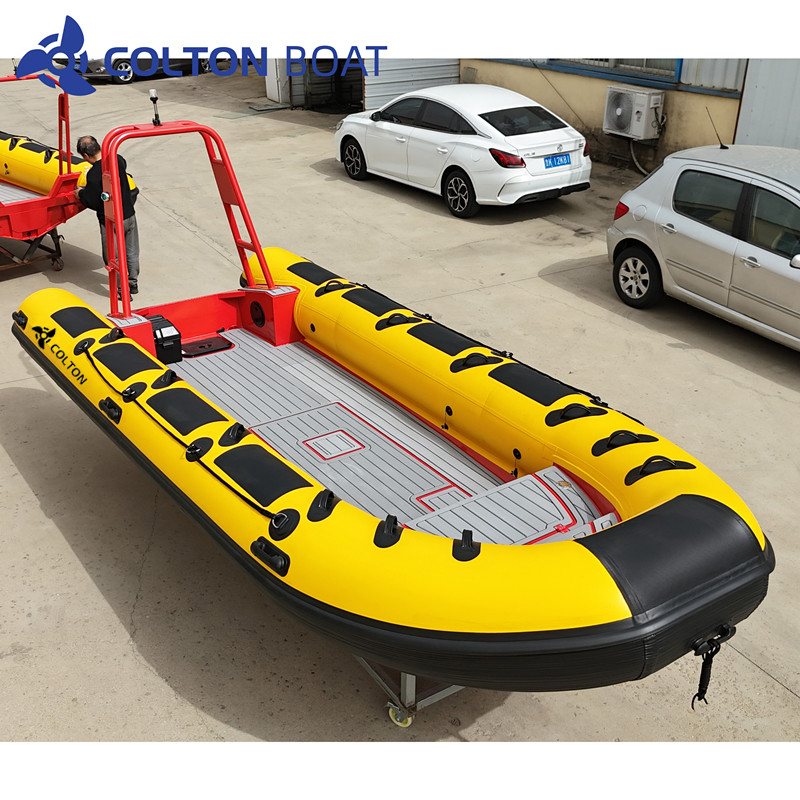

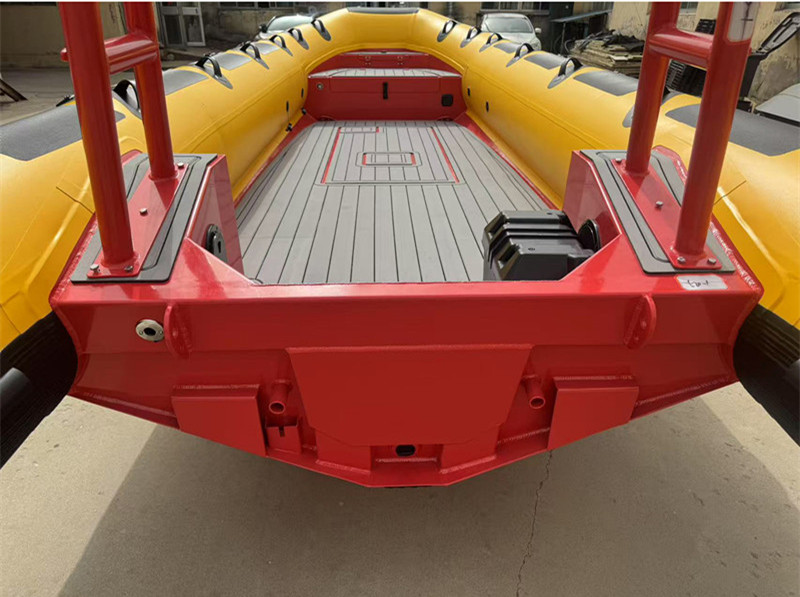

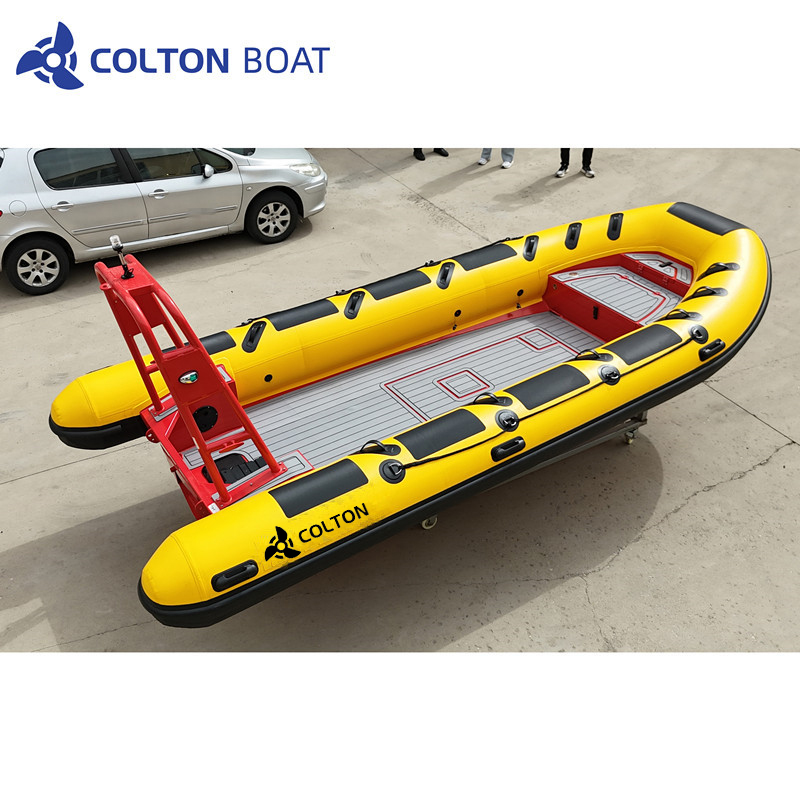

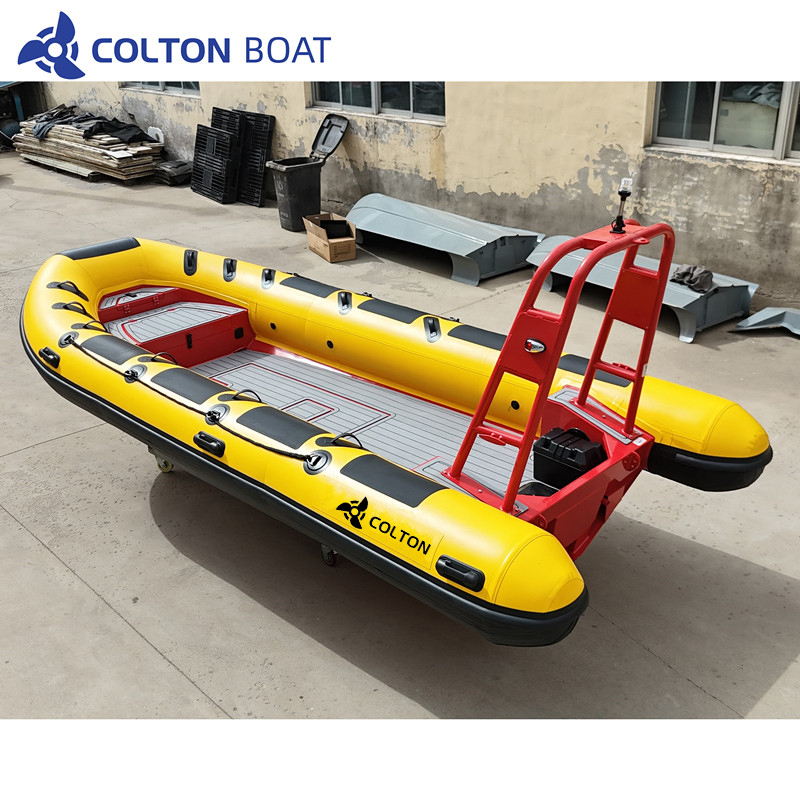

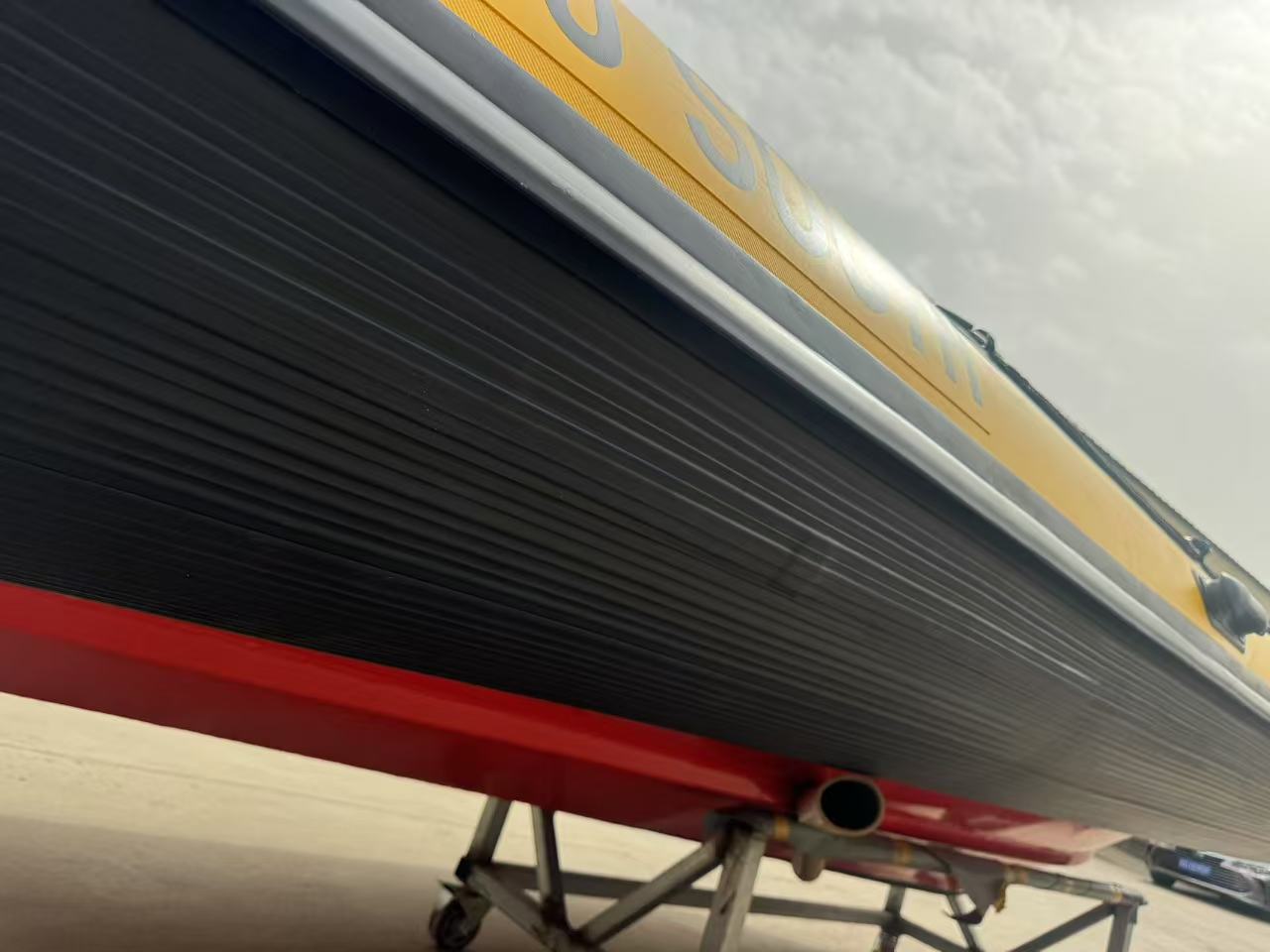

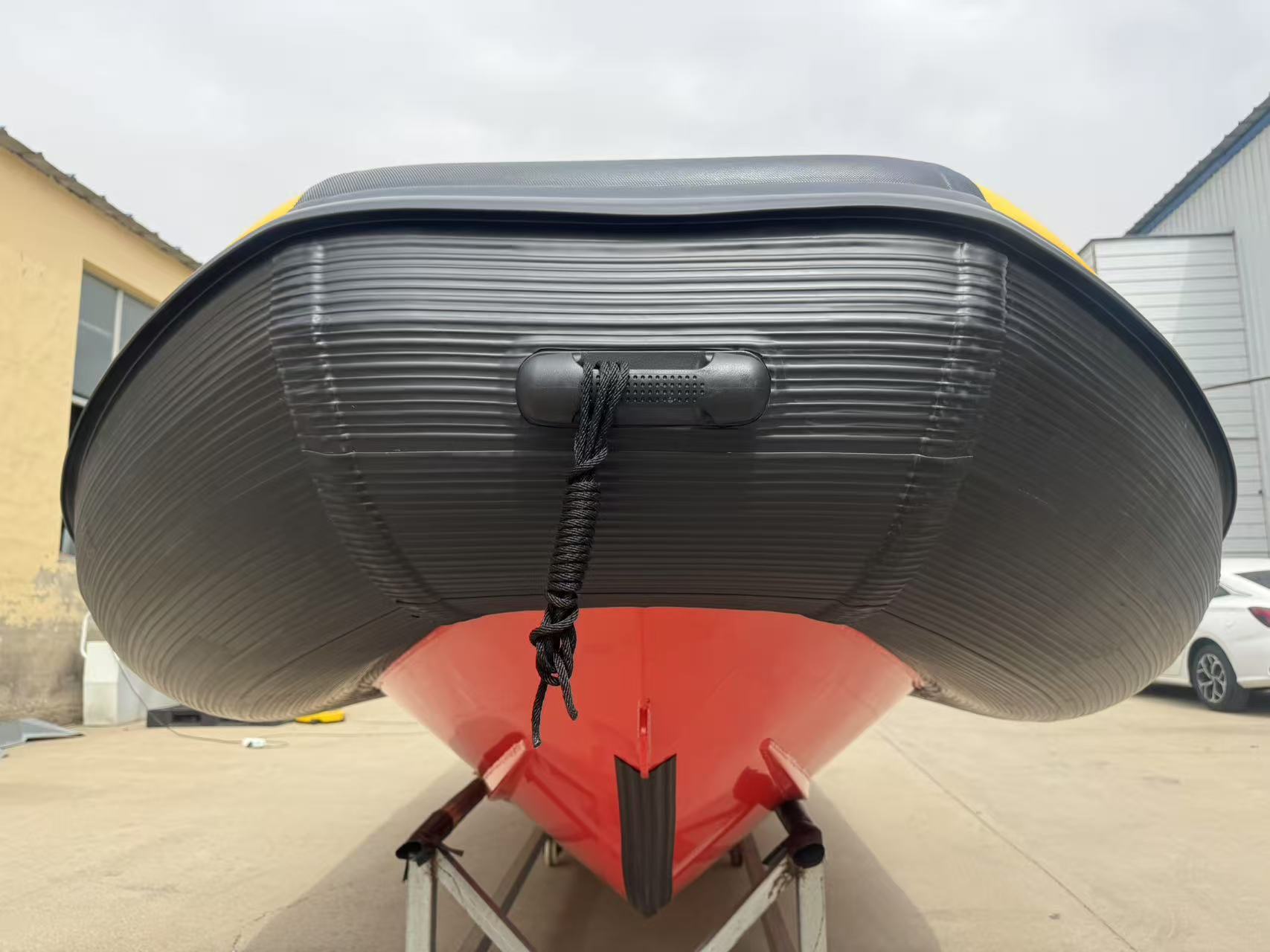

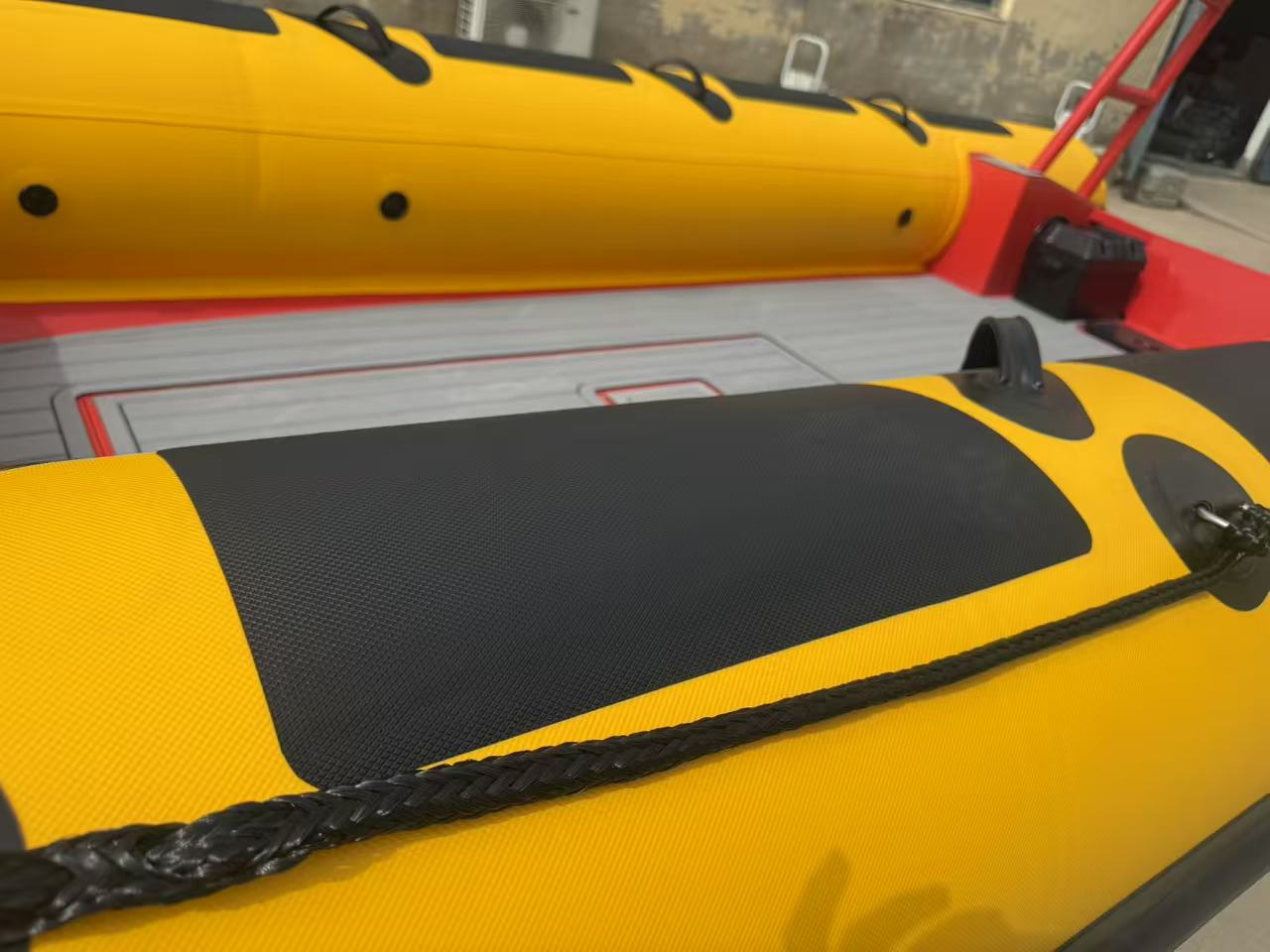

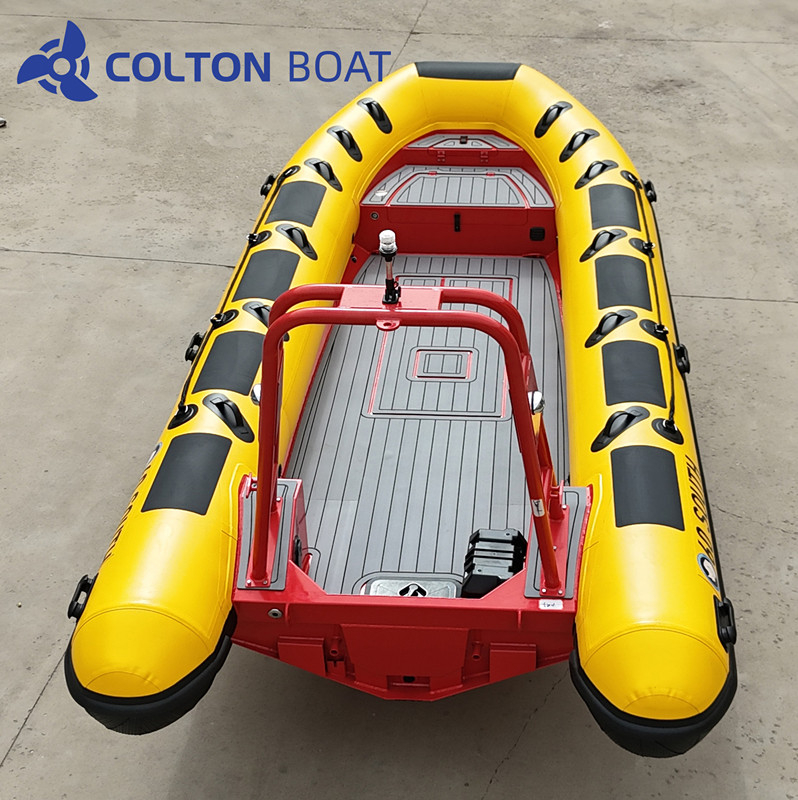

Detailed pictures of Aluminum RIB PA520

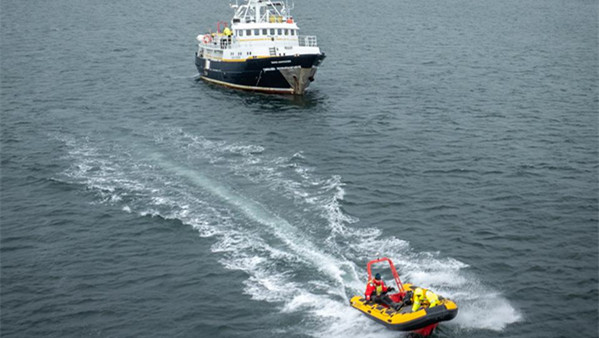

Client's feedback about COLTON Aluminum RIB PA520
China rib inflatable boat
rib boat 5.2m
rigid hulled inflatable boat
rigid inflatable boats ribs
Packing and shipment
Fabric specification
Technical specification of ORCA
• Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.
• Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)
• Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m², Fabric width 145cm / Sold by linear meter

Technical specification of PVC
Material properties | Value | Unit | Measuring Methods/Norm |
Total weight | 1450 | g/m² | EN ISO 2286-2 |
Tensile strength warp/weft | 3000 / 3000 | N/50 mm | EN ISO 1421/V1 |
Tear strength warp/weft | 250 / 250 | N | DIN 53363 |
Adhesion | 20 | N/cm | PA 09.03 (intern) |
Cold resistance | -30 | °C | EN 1876-1 |
High Temperature | +70 | °C | PA 07.04 (intern) |
Light fastness | >6 | Note, Value | EN ISO 105 B02 |
Crack resistance | 100000 x | DIN 53359 A | |
Material | PES | DIN EN ISO 2076 | |
Yarn count | 1100 | DIN EN ISO 2060 | |
Weave | L 1/1 | ISO 3572 |

Aluminum Rib boat hull power coating
AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.

EVA pad
Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.

Certificate
