Fiberglass RIB boat RIB600
Colton or OEM service
89031900
| Quantity: | |
|---|---|
| Standard features | Optional features |
| • PVC, Taiwan hypalon or ORCA hypalon fabric for tube • Integrated transom supports • 120L Integrated built in fuel tank • Lockable bow locker with seat cushion • Flush mount non-return valves • Self-draining valve • Safety valves • Lifting points and towing eyes • Middle console with front seat and windshield • Rear seat with seat cushions • Simple anchor holder • Fiberglass roll bar with navigation lights • Outside and inside reinforced motor pad • Bilge pump • Ski pole • One pair of aluminum oars • Foot pump • Repair kit | • Boat trailer • Hydraulic steering system • Bathing system • Electric pump • Sunshade • Boat cover • Table • Diamond stitch seat design • EVA pad or teak floor • Fiberglass tube end • GPS and VHF • Speakers • Ladder • Deck light • Front sunbed • Yamaha or Mercury engine |
Specification
Model | Overall length | Overall width | Tube diameter | Chamber | Max power | Capacity | Max loading | Weight |
cm | cm | cm | room | hp | person | kg | kg | |
RIB580 | 580cm/19’ | 238cm/7’10’’ | 58cm/22.8’’ | 5 | 115 | 11 | 1130 | 460 |
RIB600 | 600cm/19’9’’ | 250cm/8’3’’ | 58cm/22.8’’ | 6 | 150 | 12 | 1275 | 480 |
RIB680A | 680cm/22’4’’ | 252cm/8’4’’ | 52cm/20.5’’ | 7 | 200 | 12 | 1405 | 500 |
RIB680B | 680cm/22’4’’ | 252cm/8’4’’ | 52cm/20.5’’ | 7 | 200 | 12 | 1405 | 650 |
RIB700 | 700cm/23’ | 285cm/9’4’’ | 52cm/20.5’’ | 7 | 250 | 14 | 1500 | 700 |
RIB760 | 760cm/25’ | 270cm/8’10’’ | 52cm/20.5’’ | 7 | 300 | 15 | 1700 | 800 |
RIB800 | 800cm/26’3’’ | 285cm/9’4’’ | 55cm/21.7’’ | 7 | 400 | 16 | 1850 | 960 |
RIB860 | 860cm/28’ | 285cm/9’4’’ | 55cm/21.7’’ | 7 | 500 | 17 | 2106 | 1000 |
RIB960 | 960cm/31’6’’ | 320cm/10’6’’ | 60cm/23.6’’ | 7 | 500 | 18 | 2500 | 2200 |
RIB1200 | 1200cm/39’5’’ | 335cm/11’ | 60cm/23.6’’ | 7 | 800 | 25 | 3500 | 2500 |
Process of fiberglass hull
Process of inflatable tube

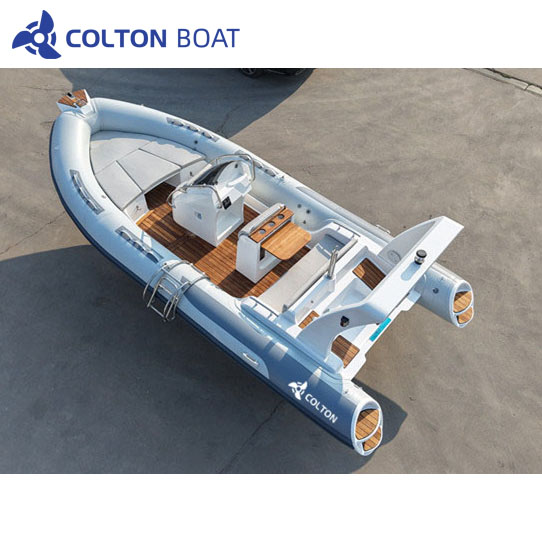

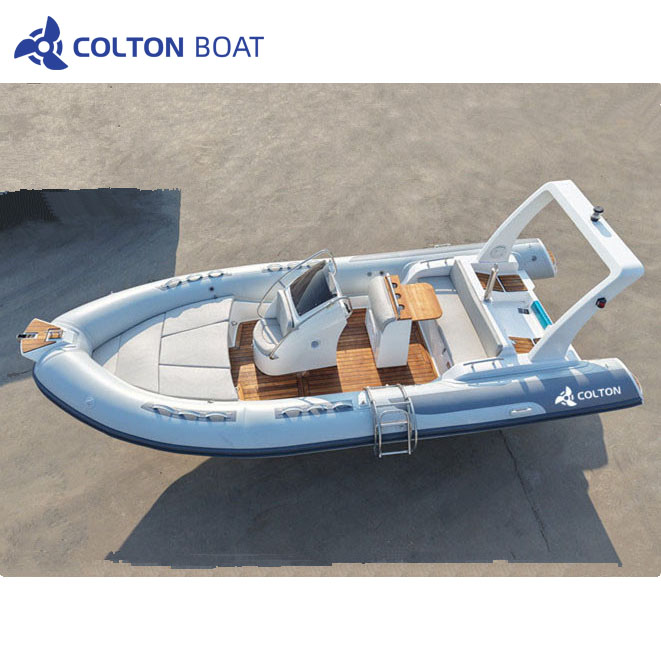

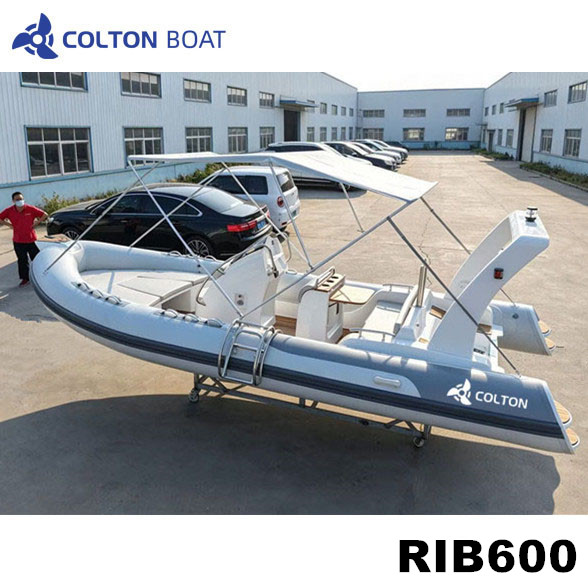

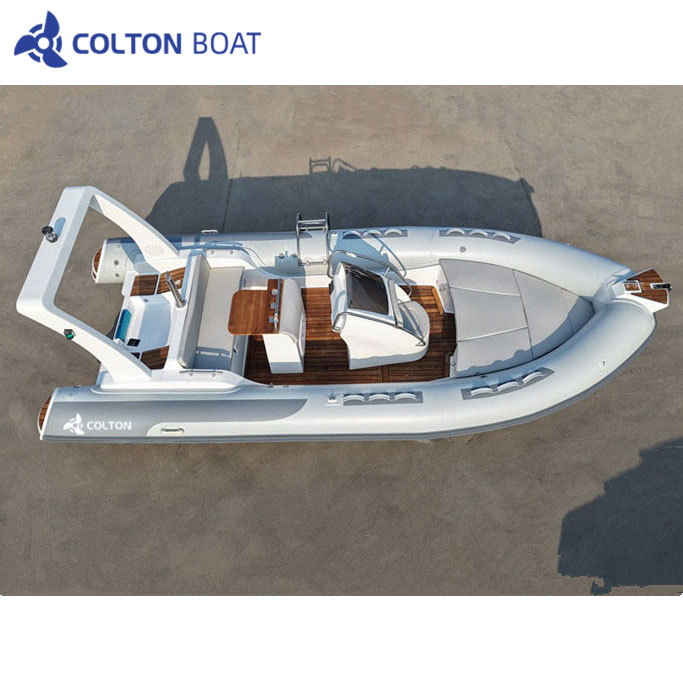

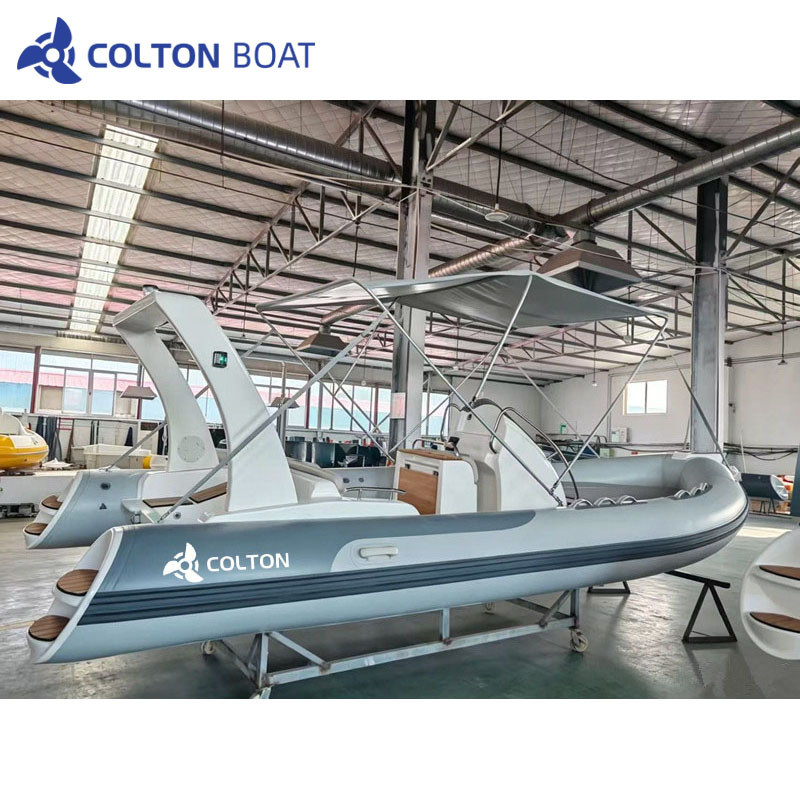

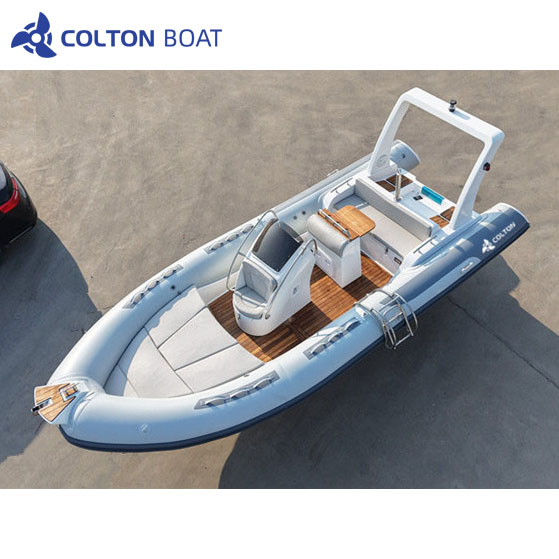

Pictures of RIB600 with different color and design
See Client Shots of the RIB600
Packing and shipment
Fabric specification
Technical specification of ORCA
• Base fabric: High Tenacity Polyester 1100 dtex - 990deniers for ORCA 828. High Tenacity Polyester 1670 dtex - 1500 denier for ORCA 866.
• Induction: Chlorosulfonated polyethylene (CSM) / Polychloroprene (CR)
• Mass per unit area: >1000 g/m²/>1200 g/m²/>1400 g/m²
• Fabric width 145cm / Sold by linear meter
Technical specification of PVC
Material properties | Value | Unit | Measuring Methods/Norm |
Total weight | 1450 | g/m² | EN ISO 2286-2 |
Tensile strength warp/weft | 3000 / 3000 | N/50 mm | EN ISO 1421/V1 |
Tear strength warp/weft | 250 / 250 | N | DIN 53363 |
Adhesion | 20 | N/cm | PA 09.03 (intern) |
Cold resistance | -30 | °C | EN 1876-1 |
High Temperature | +70 | °C | PA 07.04 (intern) |
Light fastness | >6 | Note, Value | EN ISO 105 B02 |
Crack resistance | 100000 x | DIN 53359 A | |
Material | PES | DIN EN ISO 2076 | |
Yarn count | 1100 | DIN EN ISO 2060 | |
Weave | L 1/1 | ISO 3572 |
Aluminum Rib boat hull power coating
AkzoNobel Interpon is the world leader in powder coatings. We offer effective coatings solutions for a wide range of applications, including furniture, automotive, IT, appliance, the architectural market and general industry.
EVA pad
Anti-UV and anti-aging top quality EVA pad for Colton aluminum RIB boat. Thickness is 6mm with intensity around 130-180 kg/m³.The color is stable and production process is strong. 3M adhesive is authorized. It could be in normal use after 3000 hours.
